Represents a CMM Inspection Line Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionLineFeatureBuilder

Created in NX7.0.0. More...

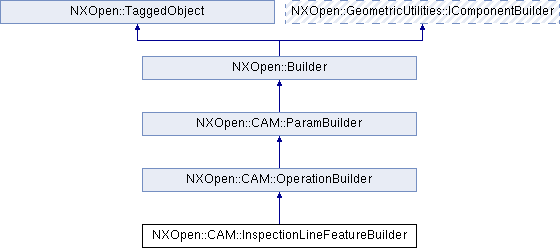

Inheritance diagram for NXOpen::CAM::InspectionLineFeatureBuilder:

Public Member Functions
NXOpen::CAM::CamInspectionOperationCsysreferencetypes	CsysRefType ()
	Returns the coordinate system reference type Created in NX7.0.0.

NXOpen::CAM::CamInspectionOperationExtenttypes	ExtentType ()
	Returns the extent type of the line (bounded or unbounded) Created in NX7.0.0.

void	FlipLineDirection ()
	Flips direction of line.

void	FlipNormal ()
	Flips normal of underlying surface Created in NX7.0.0.

double	ILine ()
	Returns the I component of the lines direction vector Created in NX7.0.0.

double	INormal ()
	Returns the I component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

double	JLine ()
	Returns the J component of the lines direction vector Created in NX7.0.0.

double	JNormal ()
	Returns the J component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

double	KLine ()
	Returns the K component of the lines direction vector Created in NX7.0.0.

double	KNormal ()
	Returns the K component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

double	Length ()
	Returns the length of the line Created in NX7.0.0.

NXOpen::Direction *	LineDirection ()
	Returns the line direction vector Created in NX7.0.0.

NXString	Name ()
	Returns the name of the line feature Created in NX7.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	OffsetDistance ()
	Returns the offset distance Created in NX9.0.0.

bool	ReverseDirection ()
	Returns the reverse direction button Created in NX7.0.0.

void	ReverseOffsetDirection ()
	Reverses the offset direction Created in NX9.0.0.

NXOpen::SelectNXObject *	SelectLine ()
	Returns the selected line Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectNormalSurface ()
	Returns the underlying surface used to determine the normal and approach direction vectors Created in NX7.0.0.

void	SetCsysRefType (NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysRefType)
	Sets the coordinate system reference type Created in NX7.0.0.

void	SetExtentType (NXOpen::CAM::CamInspectionOperationExtenttypes extentType)
	Sets the extent type of the line (bounded or unbounded) Created in NX7.0.0.

void	SetILine (double iLine)
	Sets the I component of the lines direction vector Created in NX7.0.0.

void	SetINormal (double iNormal)
	Sets the I component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

void	SetJLine (double jLine)
	Sets the J component of the lines direction vector Created in NX7.0.0.

void	SetJNormal (double jNormal)
	Sets the J component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

void	SetKLine (double kLine)
	Sets the K component of the lines direction vector Created in NX7.0.0.

void	SetKNormal (double kNormal)
	Sets the K component of the lines normal vector as determined by an underlying surface Created in NX7.0.0.

void	SetLength (double length)
	Sets the length of the line Created in NX7.0.0.

void	SetLineDirection (NXOpen::Direction *lineDirection)
	Sets the line direction vector Created in NX7.0.0.

void	SetName (const NXString &name)
	Sets the name of the line feature Created in NX7.0.0.

void	SetName (const char *name)
	Sets the name of the line feature Created in NX7.0.0.

void	SetNormalSurface (NXOpen::Face *normalSurface)
	Sets the underlying normal surface Created in NX9.0.0.

void	SetReverseDirection (bool reverseDirection)
	Sets the reverse direction button Created in NX7.0.0.

void	SetX (double x)
	Sets the X coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

void	SetY (double y)
	Sets the Y coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

void	SetZ (double z)
	Sets the Z coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

void	UpdateNormal ()
	Updates normal vector for line based on selection of underlying plane Created in NX7.0.0.

void	UpdateOffset ()
	Updates line inspection feature characteristic parameters based on offset distance Created in NX9.0.0.

void	UpdateParams ()
	Updates line inspection feature characteristic parameters based on selected geometry Created in NX7.0.0.

double	X ()
	Returns the X coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

double	Y ()
	Returns the Y coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

double	Z ()
	Returns the Z coordinate of one end of a bounded line or any point on an unbounded line Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Detailed Description

Represents a CMM Inspection Line Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionLineFeatureBuilder

Created in NX7.0.0.

Member Function Documentation

NXOpen::CAM::CamInspectionOperationCsysreferencetypes NXOpen::CAM::InspectionLineFeatureBuilder::CsysRefType ( )

Returns the coordinate system reference type
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CamInspectionOperationExtenttypes NXOpen::CAM::InspectionLineFeatureBuilder::ExtentType ( )

Returns the extent type of the line (bounded or unbounded)
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionLineFeatureBuilder::FlipLineDirection ( )

Flips direction of line.

Moves xyz location to other end of line
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionLineFeatureBuilder::FlipNormal ( )

Flips normal of underlying surface
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

double NXOpen::CAM::InspectionLineFeatureBuilder::ILine ( )

Returns the I component of the lines direction vector
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::INormal ( )

Returns the I component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::JLine ( )

Returns the J component of the lines direction vector
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::JNormal ( )

Returns the J component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::KLine ( )

Returns the K component of the lines direction vector
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::KNormal ( )

Returns the K component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::Length ( )

Returns the length of the line
Created in NX7.0.0.

License requirements : None

NXOpen::Direction* NXOpen::CAM::InspectionLineFeatureBuilder::LineDirection ( )

Returns the line direction vector
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionLineFeatureBuilder::Name ( )

Returns the name of the line feature
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::InspectionLineFeatureBuilder::OffsetDistance ( )

Returns the offset distance
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::InspectionLineFeatureBuilder::ReverseDirection ( )

Returns the reverse direction button
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionLineFeatureBuilder::ReverseOffsetDirection ( )

Reverses the offset direction
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXOpen::SelectNXObject* NXOpen::CAM::InspectionLineFeatureBuilder::SelectLine ( )

Returns the selected line
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionLineFeatureBuilder::SelectNormalSurface ( )

Returns the underlying surface used to determine the normal and approach direction vectors
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionLineFeatureBuilder::SetCsysRefType ( NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysRefType )

Sets the coordinate system reference type
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

csysRefType csysreftype

void NXOpen::CAM::InspectionLineFeatureBuilder::SetExtentType ( NXOpen::CAM::CamInspectionOperationExtenttypes extentType )

Sets the extent type of the line (bounded or unbounded)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

extentType extenttype

void NXOpen::CAM::InspectionLineFeatureBuilder::SetILine ( double iLine )

Sets the I component of the lines direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

iLine iline

void NXOpen::CAM::InspectionLineFeatureBuilder::SetINormal ( double iNormal )

Sets the I component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

iNormal inormal

void NXOpen::CAM::InspectionLineFeatureBuilder::SetJLine ( double jLine )

Sets the J component of the lines direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

jLine jline

void NXOpen::CAM::InspectionLineFeatureBuilder::SetJNormal ( double jNormal )

Sets the J component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

jNormal jnormal

void NXOpen::CAM::InspectionLineFeatureBuilder::SetKLine ( double kLine )

Sets the K component of the lines direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

kLine kline

void NXOpen::CAM::InspectionLineFeatureBuilder::SetKNormal ( double kNormal )

Sets the K component of the lines normal vector as determined by an underlying surface
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

kNormal knormal

void NXOpen::CAM::InspectionLineFeatureBuilder::SetLength ( double length )

Sets the length of the line
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

length length

void NXOpen::CAM::InspectionLineFeatureBuilder::SetLineDirection ( NXOpen::Direction * lineDirection )

Sets the line direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

lineDirection linedirection

void NXOpen::CAM::InspectionLineFeatureBuilder::SetName ( const NXString & name )

Sets the name of the line feature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionLineFeatureBuilder::SetName ( const char * name )

Sets the name of the line feature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionLineFeatureBuilder::SetNormalSurface ( NXOpen::Face * normalSurface )

Sets the underlying normal surface
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

normalSurface normalsurface

void NXOpen::CAM::InspectionLineFeatureBuilder::SetReverseDirection ( bool reverseDirection )

Sets the reverse direction button
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

reverseDirection reversedirection

void NXOpen::CAM::InspectionLineFeatureBuilder::SetX ( double x )

Sets the X coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

x x

void NXOpen::CAM::InspectionLineFeatureBuilder::SetY ( double y )

Sets the Y coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

y y

void NXOpen::CAM::InspectionLineFeatureBuilder::SetZ ( double z )

Sets the Z coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

z z

void NXOpen::CAM::InspectionLineFeatureBuilder::UpdateNormal ( )

Updates normal vector for line based on selection of underlying plane
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionLineFeatureBuilder::UpdateOffset ( )

Updates line inspection feature characteristic parameters based on offset distance
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionLineFeatureBuilder::UpdateParams ( )

Updates line inspection feature characteristic parameters based on selected geometry
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

double NXOpen::CAM::InspectionLineFeatureBuilder::X ( )

Returns the X coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::Y ( )

Returns the Y coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionLineFeatureBuilder::Z ( )

Returns the Z coordinate of one end of a bounded line or any point on an unbounded line
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_InspectionLineFeatureBuilder.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
