Represents a CMM Inspection Constructed Feature Builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionConstructedFeatureBuilder

Created in NX7.0.0. More...

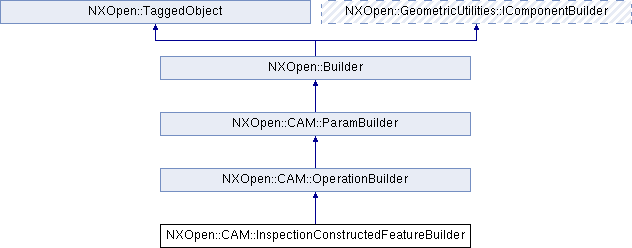

Inheritance diagram for NXOpen::CAM::InspectionConstructedFeatureBuilder:

Public Types
enum	AvailableStateType { AvailableStateTypeNominal, AvailableStateTypeActual }
	State of features in available feature list. More...

enum	ConstFeatType { ConstFeatTypePoint, ConstFeatTypeLine, ConstFeatTypePlane, ConstFeatTypeArc, ConstFeatTypeCircle, ConstFeatTypeCylinder, ConstFeatTypeCone, ConstFeatTypeSphere, ConstFeatTypeCurve, ConstFeatTypeTorus, ConstFeatTypeSurface, ConstFeatTypeSlotTab }
	Type of feature to be constructed. More...

enum	CurrentStateType { CurrentStateTypeNominal, CurrentStateTypeActual }
	State of features in current feature list. More...

enum	DesignCreationType { DesignCreationTypeSelectExisting, DesignCreationTypeCreateNew }
	Design feature creation types. More...

enum	DestPcsEnumType { DestPcsEnumTypeCurrentPCS, DestPcsEnumTypeNominalPCS, DestPcsEnumTypeActualPCS }
	Specifies if the destination PCS is the current PCS or a user specified nominal or actual PCS. More...

enum	DirectionType { DirectionTypeSpecifiedVector, DirectionTypeRadial, DirectionTypeFeature }
	Specifies whether a minimum or maximum point are found using a user specified direction vector or a radial direction vector. More...

enum	ExtractEdgeDistanceType { ExtractEdgeDistanceTypeAbsolute, ExtractEdgeDistanceTypePercentage }
	Specifies whether an extract edge distance is absolute part units or a percentage. More...

enum	MethodEnumType { MethodEnumTypeBestFit, MethodEnumTypeTransform, MethodEnumTypeIntersection, MethodEnumTypeMinimum, MethodEnumTypeMaximum, MethodEnumTypeProjection, MethodEnumTypeMoveByFeature, MethodEnumTypeMoveByVector, MethodEnumTypePerpendicularTo, MethodEnumTypeParallelTo, MethodEnumTypeOffset, MethodEnumTypeMiddle, MethodEnumTypeConeDiameter, MethodEnumTypeConeDistance, MethodEnumTypeExtract }
	Construction Method. More...

enum	SubFeat1StateType { SubFeat1StateTypeNominal, SubFeat1StateTypeActual }
	State of subfeatures. More...

enum	SubFeat2StateType { SubFeat2StateTypeNominal, SubFeat2StateTypeActual }
	State of subfeatures. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXOpen::SelectNXObjectList *	AvailableSelection ()
	Returns the available feature screen selection button Created in NX7.0.0.

bool	AvailFilterToggle ()
	Returns the toggle to filter available features Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableStateType	AvailStateEnum ()
	Returns the available feature state (nominal or actual) Created in NX7.0.0.

NXString	ConstName ()
	Returns the constructed feature name Created in NX7.0.0.

void	CreateNominal ()
	The button used to create the nominal constructed feature Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType	CurrentStateEnum ()
	Returns the current feature state (nominal or actual) Created in NX7.0.0.

void	CycleSolution ()
	The button used to cycle through possible solutions Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreationType	DesignCreation ()
	Returns the design feature creation type Created in NX7.5.3.

NXOpen::NXObject *	DesignOffsetGeometry ()
	Returns the offset design feature geometry Created in NX7.5.3.

NXOpen::CAM::InspectionConstructedFeatureBuilder::DestPcsEnumType	DestinationPcsEnum ()
	Returns the destination part coordinate system type Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionType	DirectionSpecifiedEnum ()
	Returns the type of direction specified (direction vector or radial) Created in NX7.0.0.

NXOpen::Direction *	DirectionVector ()
	Returns the direction vector Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistanceType	ExtractEdgeDistance ()
	Returns the extract edge distance type type Created in NX8.0.1.

double	ExtractEndDistance ()
	Returns the extract end edge distance Created in NX8.0.1.

double	ExtractStartDistance ()
	Returns the extract start edge distance Created in NX8.0.1.

NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstFeatType	FeatureTypeEnum ()
	Returns the feature type to be constructed Created in NX7.0.0.

std::vector< NXString >	GetSubFeatures ()
	Get the current subfeatures.

std::vector < NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType >	GetSubFeatureStates ()
	Get the current subfeature states.

NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnumType	MethodEnum ()
	Returns the construction method to be used Created in NX7.0.0.

double	MoveDistance ()
	Returns the move distance Created in NX7.0.0.

NXString	NominalName ()
	Returns the nominal feature name Created in NX7.0.0.

NXString	PcsName ()
	Returns the part coordinate system name Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectNominalFeature ()
	Returns the select nominal feature button Created in NX7.0.0.

void	SetAvailFilterToggle (bool availFilterToggle)
	Sets the toggle to filter available features Created in NX7.0.0.

void	SetAvailStateEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableStateType availStateEnum)
	Sets the available feature state (nominal or actual) Created in NX7.0.0.

void	SetConstName (const NXString &constName)
	Sets the constructed feature name Created in NX7.0.0.

void	SetConstName (const char *constName)
	Sets the constructed feature name Created in NX7.0.0.

void	SetCurrentStateEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType currentStateEnum)
	Sets the current feature state (nominal or actual) Created in NX7.0.0.

void	SetDesignCreation (NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreationType creationType)
	Sets the design feature creation type Created in NX7.5.3.

void	SetDesignOffsetGeometry (NXOpen::NXObject *designOffset)
	Sets the offset design feature geometry Created in NX7.5.3.

void	SetDestinationPcsEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::DestPcsEnumType destinationPcsEnum)
	Sets the destination part coordinate system type Created in NX7.0.0.

void	SetDirectionSpecifiedEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionType directionSpecifiedEnum)
	Sets the type of direction specified (direction vector or radial) Created in NX7.0.0.

void	SetDirectionVector (NXOpen::Direction *directionVector)
	Sets the direction vector Created in NX7.0.0.

void	SetExtractEdgeDistance (NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistanceType distanceType)
	Sets the extract edge distance type type Created in NX8.0.1.

void	SetExtractEndDistance (double endDistance)
	Sets the extract end edge distance Created in NX8.0.1.

void	SetExtractStartDistance (double startDistance)
	Sets the extract start edge distance Created in NX8.0.1.

void	SetFeatureTypeEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstFeatType featureTypeEnum)
	Sets the feature type to be constructed Created in NX7.0.0.

void	SetMethodEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnumType methodEnum)
	Sets the construction method to be used Created in NX7.0.0.

void	SetMoveDistance (double moveDistance)
	Sets the move distance Created in NX7.0.0.

void	SetNominalName (const NXString &nominalName)
	Sets the nominal feature name Created in NX7.0.0.

void	SetNominalName (const char *nominalName)
	Sets the nominal feature name Created in NX7.0.0.

void	SetPcsName (const NXString &pcsName)
	Sets the part coordinate system name Created in NX7.0.0.

void	SetPcsName (const char *pcsName)
	Sets the part coordinate system name Created in NX7.0.0.

void	SetStepSize (double stepSize)
	Sets the extract step size Created in NX8.0.1.

void	SetSubFeat1Filter (bool subFeat1Filter)
	Sets the filter toggle for the first list of subfeatures Created in NX7.0.0.

void	SetSubFeat1Name (const NXString &subFeat1Name)
	Sets the name of the first subfeature Created in NX7.0.0.

void	SetSubFeat1Name (const char *subFeat1Name)
	Sets the name of the first subfeature Created in NX7.0.0.

void	SetSubFeat1StateEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateType subFeat1StateEnum)
	Sets the state of features in the first subfeature list Created in NX7.0.0.

void	SetSubFeat2Filter (bool subFeat2Filter)
	Sets the filter toggle for the second list of subfeatures Created in NX7.0.0.

void	SetSubFeat2Name (const NXString &subFeat2Name)
	Sets the name of the first subfeature Created in NX7.0.0.

void	SetSubFeat2Name (const char *subFeat2Name)
	Sets the name of the first subfeature Created in NX7.0.0.

void	SetSubFeat2StateEnum (NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateType subFeat2StateEnum)
	Sets the state of features in the second subfeature list Created in NX7.0.0.

void	SetSubFeatures (std::vector< NXString > &subFeatures)
	Set the current subfeatures Created in NX7.5.1.

void	SetSubFeatureStates (const std::vector< NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType > &subFeatureStates)
	Set the current subfeature states.

double	StepSize ()
	Returns the extract step size Created in NX8.0.1.

bool	SubFeat1Filter ()
	Returns the filter toggle for the first list of subfeatures Created in NX7.0.0.

NXString	SubFeat1Name ()
	Returns the name of the first subfeature Created in NX7.0.0.

NXOpen::SelectNXObject *	SubFeat1Select ()
	Returns the first subfeature selection button Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateType	SubFeat1StateEnum ()
	Returns the state of features in the first subfeature list Created in NX7.0.0.

bool	SubFeat2Filter ()
	Returns the filter toggle for the second list of subfeatures Created in NX7.0.0.

NXString	SubFeat2Name ()
	Returns the name of the first subfeature Created in NX7.0.0.

NXOpen::SelectNXObject *	SubFeat2Select ()
	Returns the second subfeature selection button Created in NX7.0.0.

NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateType	SubFeat2StateEnum ()
	Returns the state of features in the second subfeature list Created in NX7.0.0.

void	UpdateDirectionVector (const NXOpen::Vector3d &vector)
	The constructed inspection feature direction vector based on selected vector Created in NX7.5.2.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection Constructed Feature Builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionConstructedFeatureBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableStateType

State of features in available feature list.

Enumerator:

AvailableStateTypeNominal	Feature is in its nominal (design) state.
AvailableStateTypeActual	Feature is an actual measured feature.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstFeatType

Type of feature to be constructed.

Enumerator:

ConstFeatTypePoint	Constructed Point Feature.
ConstFeatTypeLine	Constructed Line Feature.
ConstFeatTypePlane	Constructed Plane Feature.
ConstFeatTypeArc	Constructed Arc Feature.
ConstFeatTypeCircle	Constructed Circle Feature.
ConstFeatTypeCylinder	Constructed Cylinder Feature.
ConstFeatTypeCone	Constructed Cone Feature.
ConstFeatTypeSphere	Constructed Sphere Feature.
ConstFeatTypeCurve	Constructed Curve Feature.
ConstFeatTypeTorus	Constructed Torus Feature.
ConstFeatTypeSurface	Constructed Surface Feature.
ConstFeatTypeSlotTab	Constructed Slot/Tab Feature.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType

State of features in current feature list.

Enumerator:

CurrentStateTypeNominal	Feature is in its nominal (design) state.
CurrentStateTypeActual	Feature is an actual measured feature.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreationType

Design feature creation types.

Enumerator:

DesignCreationTypeSelectExisting	Design feature is selected from existing features.
DesignCreationTypeCreateNew	Design feature is created as a new feature.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::DestPcsEnumType

Specifies if the destination PCS is the current PCS or a user specified nominal or actual PCS.

Enumerator:

DestPcsEnumTypeCurrentPCS	Use current PCS as the destination.
DestPcsEnumTypeNominalPCS	Use a user specified nominal PCS as the destination.
DestPcsEnumTypeActualPCS	Use a user specified actual PCS as the destination.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionType

Specifies whether a minimum or maximum point are found using a user specified direction vector or a radial direction vector.

Enumerator:

DirectionTypeSpecifiedVector	Use a user specified direction vector.
DirectionTypeRadial	Use a radial direction vector.
DirectionTypeFeature	Use a feature (nominal/actual) for the vector.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistanceType

Specifies whether an extract edge distance is absolute part units or a percentage.

Enumerator:

ExtractEdgeDistanceTypeAbsolute	Use an absolute distance from edge.
ExtractEdgeDistanceTypePercentage	Use a percentage distance from edge.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnumType

Construction Method.

Enumerator:

MethodEnumTypeBestFit	Best Fit a feature to point reducible subfeatures.
MethodEnumTypeTransform	Transform a copy of a feature from one PCS to another PCS.
MethodEnumTypeIntersection	Intersects features to form a point plane or circle feature.
MethodEnumTypeMinimum	Finds the maximum feature measurement point in a specified direction.
MethodEnumTypeMaximum	Finds the minimum feature measurement point in a specified direction.
MethodEnumTypeProjection	Projects a measurement point onto a measured or nominal feature.
MethodEnumTypeMoveByFeature	Moves a copy of a point reducible feature in a direction associated with another feature.
MethodEnumTypeMoveByVector	Moves a copy of a point reducible feature in a user specifiec direction.
MethodEnumTypePerpendicularTo	Creates a feature perpendicular to a feature and through another feature.
MethodEnumTypeParallelTo	Creates a feature parallel to a feature and through another feature.
MethodEnumTypeOffset	Creates a plane or line offset by a nominal amount to each subfeature.
MethodEnumTypeMiddle	Creates a point, plane or line at the middle of two sub features.
MethodEnumTypeConeDiameter	Creates a circle at diameter of a cone.
MethodEnumTypeConeDistance	Creates a circle at distance along a cone.
MethodEnumTypeExtract	Creates a feature by extract neasurements from other features.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateType

State of subfeatures.

Enumerator:

SubFeat1StateTypeNominal	Feature is in its nominal (design) state.
SubFeat1StateTypeActual	Feature is an actual measured feature.

enum NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateType

State of subfeatures.

Enumerator:

SubFeat2StateTypeNominal	Feature is in its nominal (design) state.
SubFeat2StateTypeActual	Feature is an actual measured feature.

Member Function Documentation

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableSelection ( )

Returns the available feature screen selection button
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailFilterToggle ( )

Returns the toggle to filter available features
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableStateType NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailStateEnum ( )

Returns the available feature state (nominal or actual)
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstName ( )

Returns the constructed feature name
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionConstructedFeatureBuilder::CreateNominal ( )

The button used to create the nominal constructed feature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateEnum ( )

Returns the current feature state (nominal or actual)
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionConstructedFeatureBuilder::CycleSolution ( )

The button used to cycle through possible solutions
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreationType NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreation ( )

Returns the design feature creation type
Created in NX7.5.3.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignOffsetGeometry ( )

Returns the offset design feature geometry
Created in NX7.5.3.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::DestPcsEnumType NXOpen::CAM::InspectionConstructedFeatureBuilder::DestinationPcsEnum ( )

Returns the destination part coordinate system type
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionType NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionSpecifiedEnum ( )

Returns the type of direction specified (direction vector or radial)
Created in NX7.0.0.

License requirements : None

NXOpen::Direction* NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionVector ( )

Returns the direction vector
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistanceType NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistance ( )

Returns the extract edge distance type type
Created in NX8.0.1.

License requirements : None

double NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEndDistance ( )

Returns the extract end edge distance
Created in NX8.0.1.

License requirements : None

double NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractStartDistance ( )

Returns the extract start edge distance
Created in NX8.0.1.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstFeatType NXOpen::CAM::InspectionConstructedFeatureBuilder::FeatureTypeEnum ( )

Returns the feature type to be constructed
Created in NX7.0.0.

License requirements : None

std::vector<NXString> NXOpen::CAM::InspectionConstructedFeatureBuilder::GetSubFeatures ( )

Get the current subfeatures.

Returns: Current subfeatures
Created in NX7.5.1.

License requirements : None

std::vector<NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType> NXOpen::CAM::InspectionConstructedFeatureBuilder::GetSubFeatureStates ( )

Get the current subfeature states.

Returns: Current subfeature states
Created in NX7.5.3.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnumType NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnum ( )

Returns the construction method to be used
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionConstructedFeatureBuilder::MoveDistance ( )

Returns the move distance
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionConstructedFeatureBuilder::NominalName ( )

Returns the nominal feature name
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionConstructedFeatureBuilder::PcsName ( )

Returns the part coordinate system name
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionConstructedFeatureBuilder::SelectNominalFeature ( )

Returns the select nominal feature button
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetAvailFilterToggle ( bool availFilterToggle )

Sets the toggle to filter available features
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

availFilterToggle availfiltertoggle

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetAvailStateEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::AvailableStateType availStateEnum )

Sets the available feature state (nominal or actual)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

availStateEnum availstateenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetConstName ( const NXString & constName )

Sets the constructed feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

constName constname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetConstName ( const char * constName )

Sets the constructed feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

constName constname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetCurrentStateEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType currentStateEnum )

Sets the current feature state (nominal or actual)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

currentStateEnum currentstateenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetDesignCreation ( NXOpen::CAM::InspectionConstructedFeatureBuilder::DesignCreationType creationType )

Sets the design feature creation type
Created in NX7.5.3.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

creationType creationtype

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetDesignOffsetGeometry ( NXOpen::NXObject * designOffset )

Sets the offset design feature geometry
Created in NX7.5.3.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

designOffset designoffset

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetDestinationPcsEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::DestPcsEnumType destinationPcsEnum )

Sets the destination part coordinate system type
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

destinationPcsEnum destinationpcsenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetDirectionSpecifiedEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::DirectionType directionSpecifiedEnum )

Sets the type of direction specified (direction vector or radial)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

directionSpecifiedEnum directionspecifiedenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetDirectionVector ( NXOpen::Direction * directionVector )

Sets the direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

directionVector directionvector

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetExtractEdgeDistance ( NXOpen::CAM::InspectionConstructedFeatureBuilder::ExtractEdgeDistanceType distanceType )

Sets the extract edge distance type type
Created in NX8.0.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

distanceType distancetype

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetExtractEndDistance ( double endDistance )

Sets the extract end edge distance
Created in NX8.0.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endDistance enddistance

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetExtractStartDistance ( double startDistance )

Sets the extract start edge distance
Created in NX8.0.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startDistance startdistance

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetFeatureTypeEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::ConstFeatType featureTypeEnum )

Sets the feature type to be constructed
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureTypeEnum featuretypeenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetMethodEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::MethodEnumType methodEnum )

Sets the construction method to be used
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

methodEnum methodenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetMoveDistance ( double moveDistance )

Sets the move distance
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

moveDistance movedistance

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetNominalName ( const NXString & nominalName )

Sets the nominal feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

nominalName nominalname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetNominalName ( const char * nominalName )

Sets the nominal feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

nominalName nominalname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetPcsName ( const NXString & pcsName )

Sets the part coordinate system name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pcsName pcsname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetPcsName ( const char * pcsName )

Sets the part coordinate system name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pcsName pcsname

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetStepSize ( double stepSize )

Sets the extract step size
Created in NX8.0.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

stepSize stepsize

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat1Filter ( bool subFeat1Filter )

Sets the filter toggle for the first list of subfeatures
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat1Filter subfeat1filter

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat1Name ( const NXString & subFeat1Name )

Sets the name of the first subfeature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat1Name subfeat1name

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat1Name ( const char * subFeat1Name )

Sets the name of the first subfeature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat1Name subfeat1name

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat1StateEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateType subFeat1StateEnum )

Sets the state of features in the first subfeature list
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat1StateEnum subfeat1stateenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat2Filter ( bool subFeat2Filter )

Sets the filter toggle for the second list of subfeatures
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat2Filter subfeat2filter

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat2Name ( const NXString & subFeat2Name )

Sets the name of the first subfeature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat2Name subfeat2name

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat2Name ( const char * subFeat2Name )

Sets the name of the first subfeature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat2Name subfeat2name

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeat2StateEnum ( NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateType subFeat2StateEnum )

Sets the state of features in the second subfeature list
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeat2StateEnum subfeat2stateenum

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeatures ( std::vector< NXString > & subFeatures )

Set the current subfeatures
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeatures Current subfeatures
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::InspectionConstructedFeatureBuilder::SetSubFeatureStates ( const std::vector< NXOpen::CAM::InspectionConstructedFeatureBuilder::CurrentStateType > & subFeatureStates )

Set the current subfeature states.

Created in NX7.5.3.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeatureStates Current subfeature states

double NXOpen::CAM::InspectionConstructedFeatureBuilder::StepSize ( )

Returns the extract step size
Created in NX8.0.1.

License requirements : None

bool NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1Filter ( )

Returns the filter toggle for the first list of subfeatures
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1Name ( )

Returns the name of the first subfeature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1Select ( )

Returns the first subfeature selection button
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateType NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat1StateEnum ( )

Returns the state of features in the first subfeature list
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2Filter ( )

Returns the filter toggle for the second list of subfeatures
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2Name ( )

Returns the name of the first subfeature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2Select ( )

Returns the second subfeature selection button
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateType NXOpen::CAM::InspectionConstructedFeatureBuilder::SubFeat2StateEnum ( )

Returns the state of features in the second subfeature list
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionConstructedFeatureBuilder::UpdateDirectionVector ( const NXOpen::Vector3d & vector )

The constructed inspection feature direction vector based on selected vector
Created in NX7.5.2.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

vector The vector data to use for update

The documentation for this class was generated from the following file:

CAM_InspectionConstructedFeatureBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
