Represents a Cut Area Geometry builder
To create a new instance of this class, use CAM::HoleBossGeom::CreateHoleBossBuilder

Created in NX7.5.0. More...

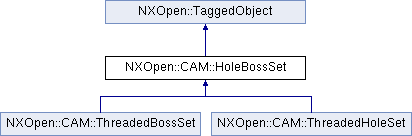

Inheritance diagram for NXOpen::CAM::HoleBossSet:

Public Types
enum	DepthLimitTypes { DepthLimitTypesThrough, DepthLimitTypesBlind }
	the depth limit types Created in NX8.0.0. More...

Public Member Functions
double	Depth ()
	Returns the Depth Created in NX7.5.0.

NXOpen::CAM::InferredDouble *	DepthBuilder ()
	Returns the depth builder Created in NX7.5.0.

NXOpen::CAM::HoleBossSet::DepthLimitTypes	DepthLimit ()
	Returns the Depth Limit types Created in NX8.0.0.

double	Diameter ()
	Returns the Diameter Created in NX7.5.0.

NXOpen::CAM::InferredDouble *	DiameterBuilder ()
	Returns the diameter builder Created in NX7.5.0.

NXOpen::CAM::FBM::Feature *	GetFeature ()
	Returns the in process feature.

NXOpen::CAM::CAMFeature *	GetMachiningFeature ()
	Returns the machining feature.

void	InferLogic (NXOpen::NXObject *entity)
	Save the infer logic information of the input entity, such as the orientation, pitch, diameter and height etc.

double	Length ()
	Returns the Length Created in NX7.5.0.

NXOpen::CAM::InferredDouble *	LengthBuilder ()
	Returns the length builder Created in NX7.5.0.

double	MajorDiameter ()
	Returns the Major Diameter Created in NX7.5.0.

double	MinorDiameter ()
	Returns the Minor Diameter Created in NX7.5.0.

void	ReverseDirection ()
	Reverses the direction of the feature Created in NX8.0.0.

void	SetDepth (double depthValue)
	Sets the Depth Created in NX7.5.0.

void	SetDepthLimit (NXOpen::CAM::HoleBossSet::DepthLimitTypes type)
	Sets the Depth Limit types Created in NX8.0.0.

void	SetDiameter (double holeBossValue)
	Sets the Diameter Created in NX7.5.0.

void	SetLength (double holeBossValue)
	Sets the Length Created in NX7.5.0.

void	SetMajorDiameter (double holeBossValue)
	Sets the Major Diameter Created in NX7.5.0.

void	SetMinorDiameter (double holeBossValue)
	Sets the Minor Diameter Created in NX7.5.0.

void	SetSize (const NXString &holeBossValue)
	Sets the Size Created in NX7.5.0.

void	SetSize (const char *holeBossValue)
	Sets the Size Created in NX7.5.0.

void	SetToolAxis (NXOpen::NXObject *toolAxis)
	Sets the Tool Axis Created in NX7.5.0.

NXString	Size ()
	Returns the Size Created in NX7.5.0.

NXOpen::CAM::CAMAttribute *	StartDiameter ()
	Returns the start diameter Created in NX9.0.0.

NXOpen::CAM::CAMAttribute *	TipAngle ()
	Returns the tip angle Created in NX9.0.0.

NXOpen::NXObject *	ToolAxis ()
	Returns the Tool Axis Created in NX7.5.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Cut Area Geometry builder
To create a new instance of this class, use CAM::HoleBossGeom::CreateHoleBossBuilder

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAM::HoleBossSet::DepthLimitTypes

the depth limit types
Created in NX8.0.0.

Enumerator:

DepthLimitTypesThrough	Depth Limit: Through.
DepthLimitTypesBlind	Depth Limit: Blind.

Member Function Documentation

double NXOpen::CAM::HoleBossSet::Depth ( )

Returns the Depth
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InferredDouble* NXOpen::CAM::HoleBossSet::DepthBuilder ( )

Returns the depth builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::HoleBossSet::DepthLimitTypes NXOpen::CAM::HoleBossSet::DepthLimit ( )

Returns the Depth Limit types
Created in NX8.0.0.

License requirements : None

double NXOpen::CAM::HoleBossSet::Diameter ( )

Returns the Diameter
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InferredDouble* NXOpen::CAM::HoleBossSet::DiameterBuilder ( )

Returns the diameter builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::FBM::Feature* NXOpen::CAM::HoleBossSet::GetFeature ( )

Returns the in process feature.

Returns: Created in NX9.0.0.

License requirements : None

NXOpen::CAM::CAMFeature* NXOpen::CAM::HoleBossSet::GetMachiningFeature ( )

Returns the machining feature.

Returns: Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::HoleBossSet::InferLogic ( NXOpen::NXObject * entity )

Save the infer logic information of the input entity, such as the orientation, pitch, diameter and height etc.

into the feature
Created in NX7.5.2.

License requirements : None

Parameters

entity the geometry

double NXOpen::CAM::HoleBossSet::Length ( )

Returns the Length
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InferredDouble* NXOpen::CAM::HoleBossSet::LengthBuilder ( )

Returns the length builder
Created in NX7.5.0.

License requirements : None

double NXOpen::CAM::HoleBossSet::MajorDiameter ( )

Returns the Major Diameter
Created in NX7.5.0.

License requirements : None

double NXOpen::CAM::HoleBossSet::MinorDiameter ( )

Returns the Minor Diameter
Created in NX7.5.0.

License requirements : None

void NXOpen::CAM::HoleBossSet::ReverseDirection ( )

Reverses the direction of the feature
Created in NX8.0.0.

License requirements : None

void NXOpen::CAM::HoleBossSet::SetDepth ( double depthValue )

Sets the Depth
Created in NX7.5.0.
