Represents the Follow Curve Move Builder  <br> To create a new instance of this class, use @link CAM::MoveCollection::CreateFollowCurveMoveBuilder  CAM::MoveCollection::CreateFollowCurveMoveBuilder @endlink  <br>

Default values. More...

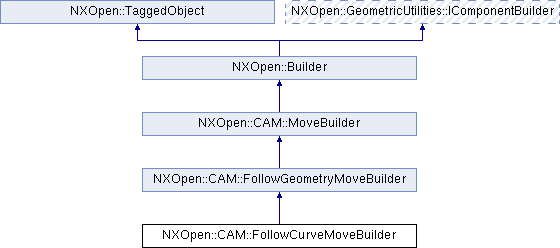

Inheritance diagram for NXOpen::CAM::FollowCurveMoveBuilder:

Public Member Functions
NXOpen::Point *	EndPoint ()
	Returns the end location Created in NX8.0.0.

NXOpen::Direction *	EndToolAxis ()
	Returns the end tool axis Created in NX8.0.0.

NXOpen::Section *	Geometry ()
	Returns the geometry selection Created in NX8.0.0.

void	SetEndPoint (NXOpen::Point *location)
	Sets the end location Created in NX8.0.0.

void	SetEndToolAxis (NXOpen::Direction *vec)
	Sets the end tool axis Created in NX8.0.0.

void	SetGeometry (NXOpen::Section *geometryCollector)
	Sets the geometry selection Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAM::FollowGeometryMoveBuilder
NXOpen::CAM::InheritableToolDepBuilder *	EndExtension ()
	Returns the end extension Created in NX8.0.0.

void	SetEndExtension (NXOpen::CAM::InheritableToolDepBuilder *builderTag)
	Sets the end extension Created in NX8.0.0.

void	SetStartExtension (NXOpen::CAM::InheritableToolDepBuilder *builderTag)
	Sets the start extension Created in NX8.0.0.

void	SetStartPoint (NXOpen::Point *location)
	Sets the start location Created in NX8.0.0.

void	SetStartToolAxis (NXOpen::Direction *vec)
	Sets the start tool axis Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	StartExtension ()
	Returns the start extension Created in NX8.0.0.

NXOpen::Point *	StartPoint ()
	Returns the start location Created in NX8.0.0.

NXOpen::Direction *	StartToolAxis ()
	Returns the start tool axis Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAM::MoveBuilder
double	FeedRate ()
	Returns the feed rate Created in NX5.0.0.

NXOpen::CAM::MoveBuilder::Feed	FeedType ()
	Returns the feed type Created in NX5.0.0.

NXOpen::CAM::FeedRateUnit	FeedUnit ()
	Returns the feed unit Created in NX7.5.0.

NXOpen::CAM::UdeParameter *	GetUserParameter (const NXString &parameterName)
	Returns the custom parameter with the given name.

NXOpen::CAM::UdeParameter *	GetUserParameter (const char *parameterName)
	Returns the custom parameter with the given name.

NXOpen::CAM::UdeParameter *	GetUserParameter (int index)
	Returns the parameter at the input index.

NXOpen::CAM::MoveBuilder::Motion	MotionType ()
	Returns the motion type Created in NX5.0.0.

int	NumberOfUserParameters ()
	Returns the number of user parameters Created in NX8.0.0.

bool	ProtectedMove ()
	Returns the protected move status Created in NX5.0.0.

void	SetFeedRate (double feedRate)
	Sets the feed rate Created in NX5.0.0.

void	SetFeedType (NXOpen::CAM::MoveBuilder::Feed feedType)
	Sets the feed type Created in NX5.0.0.

void	SetFeedUnit (NXOpen::CAM::FeedRateUnit unit)
	Sets the feed unit Created in NX7.5.0.

void	SetMotionType (NXOpen::CAM::MoveBuilder::Motion motionType)
	Sets the motion type Created in NX5.0.0.

void	SetParent (NXOpen::CAM::CAMObject *parent)
	Set parent Created in NX5.0.0.

void	SetProtectedMove (bool protectedMove)
	Sets the protected move status Created in NX5.0.0.

void	SetSibling (NXOpen::CAM::CAMObject *sibling)
	Set sibling Created in NX5.0.0.

void	SetSubopLabel (const NXString &subopLabel)
	Sets the subop label Created in NX8.5.1.

void	SetSubopLabel (const char *subopLabel)
	Sets the subop label Created in NX8.5.1.

NXString	SubopLabel ()
	Returns the subop label Created in NX8.5.1.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::MoveBuilder
enum	Feed { FeedMotion, FeedCustom }
	the feed Type More...

enum	Motion { MotionRapid = 1, MotionEngage, MotionCut, MotionStepover, MotionRetract, MotionApproach, MotionTraversal, MotionDeparture, MotionReturn, MotionFirstCut }
	the motion Type More...

Detailed Description

Represents the Follow Curve Move Builder  <br> To create a new instance of this class, use @link CAM::MoveCollection::CreateFollowCurveMoveBuilder  CAM::MoveCollection::CreateFollowCurveMoveBuilder @endlink  <br>

Default values.

Property

Value

FeedRate

0.0

FeedType

Motion

FeedUnit

None

MotionType

Cut

ProtectedMove

true

Created in NX8.0.0.

Member Function Documentation

NXOpen::Point* NXOpen::CAM::FollowCurveMoveBuilder::EndPoint ( )

Returns the end location
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::CAM::FollowCurveMoveBuilder::EndToolAxis ( )

Returns the end tool axis
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::CAM::FollowCurveMoveBuilder::Geometry ( )

Returns the geometry selection
Created in NX8.0.0.

License requirements : None

void NXOpen::CAM::FollowCurveMoveBuilder::SetEndPoint ( NXOpen::Point * location )

Sets the end location
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

location location

void NXOpen::CAM::FollowCurveMoveBuilder::SetEndToolAxis ( NXOpen::Direction * vec )

Sets the end tool axis
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

vec vec

void NXOpen::CAM::FollowCurveMoveBuilder::SetGeometry ( NXOpen::Section * geometryCollector )

Sets the geometry selection
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

geometryCollector geometrycollector

The documentation for this class was generated from the following file:

CAM_FollowCurveMoveBuilder.hxx
