Represents a CenterlineDrillTurningBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateCenterlineDrillTurningBuilder

Created in NX6.0.0. More...

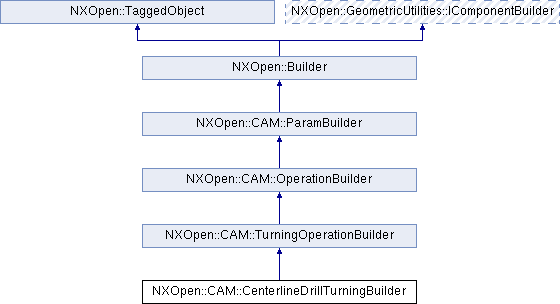

Inheritance diagram for NXOpen::CAM::CenterlineDrillTurningBuilder:

Public Types
enum	CycleTypes { CycleTypesDrill, CycleTypesDrillDeep, CycleTypesDrillBreakChip, CycleTypesTap, CycleTypesTapFloat, CycleTypesBore }
	the centerline cycle types Created in NX6.0.0. More...

enum	DepthReferenceTypes { DepthReferenceTypesToolTip, DepthReferenceTypesToolShoulder }
	the depth reference option types Created in NX9.0.0. More...

enum	DepthTypes { DepthTypesDistance, DepthTypesEndPoint, DepthTypesCrossHoleDimensions, DepthTypesCrossHole, DepthTypesShoulderDepth, DepthTypesCountersinkDiameter }
	the depth option types Created in NX6.0.0. More...

enum	DrillingLocationTypes { DrillingLocationTypesOnCenterline, DrillingLocationTypesOffCenterline }
	the drilling location Created in NX6.0.0. More...

enum	DwellTypes { DwellTypesNone, DwellTypesTime, DwellTypesRevolutions }
	the dwell modes Created in NX6.0.0. More...

enum	FinalRetractTypes { FinalRetractTypesToStartPosition, FinalRetractTypesManual }
	the retract types for simulated cycles Created in NX7.5.0. More...

enum	OutputOptionTypes { OutputOptionTypesMachineCycle, OutputOptionTypesSimulated }
	the output option Created in NX6.0.0. More...

enum	RemovalIncrementTypes { RemovalIncrementTypesConstant, RemovalIncrementTypesVariable }
	the removal increment types Created in NX6.0.0. More...

enum	SpindleStopTypes { SpindleStopTypesNone, SpindleStopTypesBeforeRetract }
	the spindle stop types Created in NX6.0.0. More...

enum	StartPositionTypes { StartPositionTypesAutomatic, StartPositionTypesSpecify }
	the start position Created in NX6.0.0. More...

Public Types inherited from NXOpen::CAM::TurningOperationBuilder
enum	MotionOutputOptions { MotionOutputOptionsLinearOnly, MotionOutputOptionsCircular, MotionOutputOptionsMachineCycle }
	The motion output options Created in NX6.0.0. More...

enum	TrackingPointType { TrackingPointTypeFixed, TrackingPointTypeRotate, TrackingPointTypeAuto }
	available types for tracking point More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
bool	BreakThrough ()
	Returns the break through toggle IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

NXOpen::CAM::InheritableDoubleBuilder *	BreakThroughDistance ()
	Returns the break through distance IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

NXOpen::CAM::CenterlineDrillTurningBuilder::CycleTypes	CenterlineCycle ()
	Returns the centerline cycle Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::RemovalIncrementTypes	ChipRemovalIncrementType ()
	Returns the chip removal increment type Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	ClearanceDistance ()
	Returns the clearance distance Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	ConstantIncrement ()
	Returns the constant increment Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CrossHoleAngle ()
	Returns the cross hole angle Created in NX6.0.0.

NXOpen::NXObject *	CrossHoleCircle ()
	Returns the cross hole circle Created in NX7.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CrossHoleDiameter ()
	Returns the cross hole diameter Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CrossHoleDistance ()
	Returns the cross hole distance Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DepthDistance ()
	Returns the depth distance Created in NX6.0.0.

NXOpen::Point *	DepthEndPoint ()
	Returns the depth end point Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DepthOffset ()
	Returns the depth offset value Created in NX9.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::DepthTypes	DepthOption ()
	Returns the depth option Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReferenceTypes	DepthReference ()
	Returns the depth reference Created in NX9.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocationTypes	DrillingLocation ()
	Returns the drilling location Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DrillStep ()
	Returns the drill step Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DrillStepModifier1 ()
	Returns the drill step modifier1 Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DrillStepModifier2 ()
	Returns the drill step modifier2 Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::DwellTypes	DwellType ()
	Returns the dwell type Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	DwellValue ()
	Returns the dwell value Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	EngageDistance ()
	Returns the engage distance Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	EntranceDiameter ()
	Returns the entrance diameter Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	FinalRetractDistance ()
	Returns the retract distance for simulated cycles Created in NX7.5.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractTypes	FinalRetractType ()
	Returns the retract type for simulated cycles Created in NX7.5.0.

NXOpen::CAM::NcmTurningBuilder *	NonCuttingBuilder ()
	Returns the non-cutting builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	OffCenterDistance ()
	Returns the off center distance Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOptionTypes	OutputOption ()
	Returns the output option Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RepositionDistance ()
	Returns the reposition distance Created in NX7.5.0.

bool	ReverseDirection ()
	Returns the reverse direction value Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeOrDepartureDistance ()
	Returns the safe or departure distance Created in NX6.0.0.

void	SetBreakThrough (bool breakThroughFlag)
	Sets the break through toggle IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

void	SetCenterlineCycle (NXOpen::CAM::CenterlineDrillTurningBuilder::CycleTypes cycleMode)
	Sets the centerline cycle Created in NX6.0.0.

void	SetChipRemovalIncrementType (NXOpen::CAM::CenterlineDrillTurningBuilder::RemovalIncrementTypes incrementType)
	Sets the chip removal increment type Created in NX6.0.0.

void	SetCrossHoleCircle (NXOpen::NXObject *crossHoleCircle)
	Sets the cross hole circle Created in NX7.0.0.

void	SetDepthEndPoint (NXOpen::Point *endPoint)
	Sets the depth end point Created in NX6.0.0.

void	SetDepthOption (NXOpen::CAM::CenterlineDrillTurningBuilder::DepthTypes depthOption)
	Sets the depth option Created in NX6.0.0.

void	SetDepthReference (NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReferenceTypes depthReference)
	Sets the depth reference Created in NX9.0.0.

void	SetDrillingLocation (NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocationTypes drillingLocationMode)
	Sets the drilling location Created in NX6.0.0.

void	SetDwellType (NXOpen::CAM::CenterlineDrillTurningBuilder::DwellTypes dwellMode)
	Sets the dwell type Created in NX6.0.0.

void	SetFinalRetractType (NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractTypes finalRetractType)
	Sets the retract type for simulated cycles Created in NX7.5.0.

void	SetOutputOption (NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOptionTypes outputOptionMode)
	Sets the output option Created in NX6.0.0.

void	SetReverseDirection (bool isReverseDirection)
	Sets the reverse direction value Created in NX6.0.0.

void	SetSpindleStop (NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStopTypes spindleStop)
	Sets the spindle stop Created in NX6.0.0.

void	SetStartPosition (NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionTypes startPositionMode)
	Sets the start position Created in NX6.0.0.

void	SetStartPositionPoint (NXOpen::Point *startPositionSpecifyPoint)
	Sets the start position point Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStopTypes	SpindleStop ()
	Returns the spindle stop Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionTypes	StartPosition ()
	Returns the start position Created in NX6.0.0.

NXOpen::Point *	StartPositionPoint ()
	Returns the start position point Created in NX6.0.0.

NXOpen::CAM::CenterlineDrillVariableIncrementBuilder *	VariableIncrementList ()
	Returns the variable increment list Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::TurningOperationBuilder
NXString	AdditionalCommands ()
	Returns the Additional Commands Created in NX6.0.0.

NXOpen::CAM::FeedsTurnBuilder *	FeedsBuilder ()
	Returns the feeds and speeds builder Created in NX6.0.0.

bool	FlipToolAroundHolder ()
	Returns the Flip Tool Around Holder toggle Created in NX6.0.0.

NXOpen::CAM::LayoutCiBuilder *	LayoutAndLayer ()
	Returns the Layer and Layout Created in NX6.0.0.

NXString	MachineCycleSubroutineName ()
	Returns the machine cycle subroutine name Created in NX8.0.0.

NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions	MotionOutput ()
	Returns the motion output Created in NX6.0.0.

bool	ReorientToolHolder ()
	Returns the Reorient Tool Holder toggle Created in NX6.0.0.

bool	RotateTrackingPoint ()
	Returns the Rotate Tracking Point toggle

void	SetAdditionalCommands (const NXString &additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetAdditionalCommands (const char *additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetFlipToolAroundHolder (bool machAAxis)
	Sets the Flip Tool Around Holder toggle Created in NX6.0.0.

void	SetMachineCycleSubroutineName (const NXString &machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMachineCycleSubroutineName (const char *machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMotionOutput (NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions motionOutput)
	Sets the motion output Created in NX6.0.0.

void	SetReorientToolHolder (bool reorient)
	Sets the Reorient Tool Holder toggle Created in NX6.0.0.

void	SetRotateTrackingPoint (bool rotate)
	Sets the Rotate Tracking Point toggle

void	SetTrackingPointStatus (NXOpen::CAM::TurningOperationBuilder::TrackingPointType status)
	Sets the tracking point status Created in NX8.5.0.

void	SetUpdateIpw (bool updateIpwMode)
	Sets the update IPW mode Created in NX6.0.0.

void	SetUseMachineCycle (bool machineCycle)
	Sets the Use Machine Cycle toggle Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	ToolHolderAngle ()
	Returns the Tool Holder Angle Created in NX6.0.0.

NXOpen::CAM::TurningOperationBuilder::TrackingPointType	TrackingPointStatus ()
	Returns the tracking point status Created in NX8.5.0.

bool	UpdateIpw ()
	Returns the update IPW mode Created in NX6.0.0.

bool	UseMachineCycle ()
	Returns the Use Machine Cycle toggle Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CenterlineDrillTurningBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateCenterlineDrillTurningBuilder

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::CenterlineDrillTurningBuilder::CycleTypes

the centerline cycle types
Created in NX6.0.0.

Enumerator:

CycleTypesDrill	Cycle: Drill.
CycleTypesDrillDeep	Cycle: Drill, Deep.
CycleTypesDrillBreakChip	Cycle: Drill, Break Chip.
CycleTypesTap	Cycle: Tap.
CycleTypesTapFloat	Cycle: Tap, Float.
CycleTypesBore	Cycle: Bore.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReferenceTypes

the depth reference option types
Created in NX9.0.0.

Enumerator:

DepthReferenceTypesToolTip	Depth Reference options: Tool Tip.
DepthReferenceTypesToolShoulder	Depth Reference options: Tool Shoulder.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::DepthTypes

the depth option types
Created in NX6.0.0.

Enumerator:

DepthTypesDistance	Depth options: Distance.
DepthTypesEndPoint	Depth options: End Point.
DepthTypesCrossHoleDimensions	Depth options: Cross Hole Dimensions.
DepthTypesCrossHole	Depth options: Cross Hole.
DepthTypesShoulderDepth	obsolete Shoulder Depth
DepthTypesCountersinkDiameter	Depth options: Countersink Diameter.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocationTypes

the drilling location
Created in NX6.0.0.

Enumerator:

DrillingLocationTypesOnCenterline	Drilling Location: On centerline.
DrillingLocationTypesOffCenterline	Drilling Location: Off centerline.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::DwellTypes

the dwell modes
Created in NX6.0.0.

Enumerator:

DwellTypesNone	Dwell: None.
DwellTypesTime	Dwell: Time.
DwellTypesRevolutions	Dwell: Revolutions.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractTypes

the retract types for simulated cycles
Created in NX7.5.0.

Enumerator:

FinalRetractTypesToStartPosition	Final Retract Type: To start position.
FinalRetractTypesManual	Final Retract Type: Manual.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOptionTypes

the output option
Created in NX6.0.0.

Enumerator:

OutputOptionTypesMachineCycle	Output Option: Machine Cycle.
OutputOptionTypesSimulated	Output Option: Simulated.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::RemovalIncrementTypes

the removal increment types
Created in NX6.0.0.

Enumerator:

RemovalIncrementTypesConstant	Removal Increment Type: Constant.
RemovalIncrementTypesVariable	Removal Increment Type: Variable.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStopTypes

the spindle stop types
Created in NX6.0.0.

Enumerator:

SpindleStopTypesNone	Spindle stop: None.
SpindleStopTypesBeforeRetract	Spindle stop: Before retract.

enum NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionTypes

the start position
Created in NX6.0.0.

Enumerator:

StartPositionTypesAutomatic	Start Position: Automatic.
StartPositionTypesSpecify	Start Position: Specify.

Member Function Documentation

bool NXOpen::CAM::CenterlineDrillTurningBuilder::BreakThrough ( )

Returns the break through toggle IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

Deprecated:: Deprecated in NX9.0.0. Use 'depth reference' instead.

Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::BreakThroughDistance ( )

Returns the break through distance IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

Deprecated:: Deprecated in NX9.0.0. Use 'depth offset' instead.

Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::CycleTypes NXOpen::CAM::CenterlineDrillTurningBuilder::CenterlineCycle ( )

Returns the centerline cycle
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::RemovalIncrementTypes NXOpen::CAM::CenterlineDrillTurningBuilder::ChipRemovalIncrementType ( )

Returns the chip removal increment type
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::ClearanceDistance ( )

Returns the clearance distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::ConstantIncrement ( )

Returns the constant increment
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::CrossHoleAngle ( )

Returns the cross hole angle
Created in NX6.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::CenterlineDrillTurningBuilder::CrossHoleCircle ( )

Returns the cross hole circle
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::CrossHoleDiameter ( )

Returns the cross hole diameter
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::CrossHoleDistance ( )

Returns the cross hole distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DepthDistance ( )

Returns the depth distance
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::CenterlineDrillTurningBuilder::DepthEndPoint ( )

Returns the depth end point
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DepthOffset ( )

Returns the depth offset value
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::DepthTypes NXOpen::CAM::CenterlineDrillTurningBuilder::DepthOption ( )

Returns the depth option
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReferenceTypes NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReference ( )

Returns the depth reference
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocationTypes NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocation ( )

Returns the drilling location
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DrillStep ( )

Returns the drill step
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DrillStepModifier1 ( )

Returns the drill step modifier1
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DrillStepModifier2 ( )

Returns the drill step modifier2
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::DwellTypes NXOpen::CAM::CenterlineDrillTurningBuilder::DwellType ( )

Returns the dwell type
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::DwellValue ( )

Returns the dwell value
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::EngageDistance ( )

Returns the engage distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::EntranceDiameter ( )

Returns the entrance diameter
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractDistance ( )

Returns the retract distance for simulated cycles
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractTypes NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractType ( )

Returns the retract type for simulated cycles
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::NcmTurningBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::NonCuttingBuilder ( )

Returns the non-cutting builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::OffCenterDistance ( )

Returns the off center distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOptionTypes NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOption ( )

Returns the output option
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::RepositionDistance ( )

Returns the reposition distance
Created in NX7.5.0.

License requirements : None

bool NXOpen::CAM::CenterlineDrillTurningBuilder::ReverseDirection ( )

Returns the reverse direction value
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::SafeOrDepartureDistance ( )

Returns the safe or departure distance
Created in NX6.0.0.

License requirements : None

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetBreakThrough ( bool breakThroughFlag )

Sets the break through toggle IMPORTANT: Parameter is obsolete from NX9 on and must not be used longer.

Deprecated:: Deprecated in NX9.0.0. Use 'depth reference' instead.

Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

breakThroughFlag the break through flag value

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetCenterlineCycle ( NXOpen::CAM::CenterlineDrillTurningBuilder::CycleTypes cycleMode )

Sets the centerline cycle
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

cycleMode the cycle

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetChipRemovalIncrementType ( NXOpen::CAM::CenterlineDrillTurningBuilder::RemovalIncrementTypes incrementType )

Sets the chip removal increment type
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

incrementType the removal increment type

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetCrossHoleCircle ( NXOpen::NXObject * crossHoleCircle )

Sets the cross hole circle
Created in NX7.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

crossHoleCircle the cross hole circle

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetDepthEndPoint ( NXOpen::Point * endPoint )

Sets the depth end point
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

endPoint the depth end point

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetDepthOption ( NXOpen::CAM::CenterlineDrillTurningBuilder::DepthTypes depthOption )

Sets the depth option
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

depthOption the depth option

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetDepthReference ( NXOpen::CAM::CenterlineDrillTurningBuilder::DepthReferenceTypes depthReference )

Sets the depth reference
Created in NX9.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

depthReference the depth reference

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetDrillingLocation ( NXOpen::CAM::CenterlineDrillTurningBuilder::DrillingLocationTypes drillingLocationMode )

Sets the drilling location
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

drillingLocationMode the drilling location

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetDwellType ( NXOpen::CAM::CenterlineDrillTurningBuilder::DwellTypes dwellMode )

Sets the dwell type
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

dwellMode the dwell type

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetFinalRetractType ( NXOpen::CAM::CenterlineDrillTurningBuilder::FinalRetractTypes finalRetractType )

Sets the retract type for simulated cycles
Created in NX7.5.0.

License requirements : None

Parameters

finalRetractType the retract type for simulated cycles

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetOutputOption ( NXOpen::CAM::CenterlineDrillTurningBuilder::OutputOptionTypes outputOptionMode )

Sets the output option
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

outputOptionMode the output option mode

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetReverseDirection ( bool isReverseDirection )

Sets the reverse direction value
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

isReverseDirection the reverse direction value

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetSpindleStop ( NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStopTypes spindleStop )

Sets the spindle stop
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

spindleStop the spindle stop

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetStartPosition ( NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionTypes startPositionMode )

Sets the start position
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

startPositionMode the start position mode

void NXOpen::CAM::CenterlineDrillTurningBuilder::SetStartPositionPoint ( NXOpen::Point * startPositionSpecifyPoint )

Sets the start position point
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

startPositionSpecifyPoint the start position point

NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStopTypes NXOpen::CAM::CenterlineDrillTurningBuilder::SpindleStop ( )

Returns the spindle stop
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionTypes NXOpen::CAM::CenterlineDrillTurningBuilder::StartPosition ( )

Returns the start position
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::CenterlineDrillTurningBuilder::StartPositionPoint ( )

Returns the start position point
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::CenterlineDrillVariableIncrementBuilder* NXOpen::CAM::CenterlineDrillTurningBuilder::VariableIncrementList ( )

Returns the variable increment list
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_CenterlineDrillTurningBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
