Manages the 2D display style
Not support KF. More...

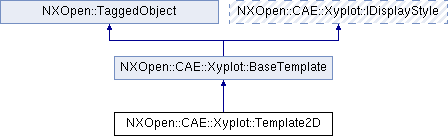

Inheritance diagram for NXOpen::CAE::Xyplot::Template2D:

Public Member Functions
NXOpen::CAE::Xyplot::ComplexOption2D	ComplexOption ()
	Returns the complex option Created in NX7.5.0.

NXOpen::CAE::Xyplot::BarOption2D	GetBarOption (int styleIndex)
	Gets bar style option.

NXOpen::CAE::Xyplot::LineOption2D	GetLineOption (int styleIndex)
	Gets line style option.

NXOpen::CAE::Xyplot::PlateOption2D	GetPlateOption (int styleIndex)
	Gets plate style option.

NXOpen::CAE::Xyplot::GridLayout2D	GridLayout ()
	Returns the grid layout style

double	PhaseAngle ()
	Returns the phase angle in degree Created in NX9.0.0.

NXOpen::CAE::Xyplot::PhaseRangeOption	PhaseRangeOption ()
	Returns the phase range option Created in NX8.0.0.

void	SetBarOption (int styleIndex, const NXOpen::CAE::Xyplot::BarOption2D &barOption)
	Sets bar style option

void	SetComplexOption (NXOpen::CAE::Xyplot::ComplexOption2D complexOption)
	Sets the complex option Created in NX7.5.0.

void	SetGridLayout (const NXOpen::CAE::Xyplot::GridLayout2D &gridLayout)
	Sets the grid layout style

void	SetLineOption (int styleIndex, const NXOpen::CAE::Xyplot::LineOption2D &lineOption)
	Sets line style option

void	SetPhaseAngle (double phaseAngle)
	Sets the phase angle in degree Created in NX9.0.0.

void	SetPhaseRangeOption (NXOpen::CAE::Xyplot::PhaseRangeOption phaseRangeOption)
	Sets the phase range option Created in NX8.0.0.

void	SetPlateOption (int styleIndex, const NXOpen::CAE::Xyplot::PlateOption2D &plateOption)
	Sets plate style option

void	SetShowOrderedAbscissa (bool ordered)
	Sets a value indicating whether to show the data by ordered abscissa or not Created in NX9.0.0.

bool	ShowOrderedAbscissa ()
	Returns a value indicating whether to show the data by ordered abscissa or not Created in NX9.0.0.

void	SwitchXyAxis ()
	Switches the X/Y axis Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAE::Xyplot::BaseTemplate
virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.

void	ExportTemplate (const NXString &strXmlFile)
	Exports current graph template setting to a template xml file, it will override the template file if it is existing.

void	ExportTemplate (const char *strXmlFile)
	Exports current graph template setting to a template xml file, it will override the template file if it is existing.

NXOpen::CAE::Xyplot::AxisStyle	GetAxisStyle (NXOpen::CAE::Xyplot::AxisDirection axisDirection)
	Gets the axis display style.

NXOpen::CAE::Xyplot::AxisStyleSetting *	GetAxisStyleSetting (NXOpen::CAE::Xyplot::AxisDirection axisDirection)
	Gets the axis display style.

NXOpen::CAE::Xyplot::UnitSystem	GetAxisUnitSystem (NXOpen::CAE::Xyplot::AxisDirection axisDirection)
	Gets the axis unit system.

NXOpen::CAE::Xyplot::BaseBarStyleSetting *	GetBarStyleSetting (int styleIndex)
	Gets the bar display style.

NXOpen::CAE::Xyplot::GraphStyle	GetGraphStyle (int styleIndex)
	Gets the graph style.

NXOpen::CAE::Xyplot::BaseLineStyleSetting *	GetLineStyleSetting (int styleIndex)
	Gets the line display style.

NXOpen::CAE::Xyplot::ScatterStyleSetting *	GetScatterStyleSetting (int styleIndex)
	Gets the scatter display style.

NXOpen::CAE::Xyplot::TextOption	GetTextOption (NXOpen::CAE::Xyplot::TextType textType)
	Gets the text option.

NXOpen::CAE::Xyplot::TextStyleSetting *	GetTextStyleSetting (NXOpen::CAE::Xyplot::TextType textType)
	Gets the text style.

NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting *	GridLayoutStyleSetting ()
	Returns the grid layout display style Created in NX9.0.0.

void	ImportTemplate (const NXString &strXmlFile)
	Updates current graph template setting from a template xml file Created in NX9.0.0.

void	ImportTemplate (const char *strXmlFile)
	Updates current graph template setting from a template xml file Created in NX9.0.0.

void	ResetToDefault ()
	Resets the graph template to default values Created in NX9.0.0.

void	SetAxisStyle (NXOpen::CAE::Xyplot::AxisDirection axisDirection, const NXOpen::CAE::Xyplot::AxisStyle &axisStyle)
	Sets the axis display style

void	SetAxisUnitSystem (NXOpen::CAE::Xyplot::AxisDirection axisDirection, NXOpen::CAE::Xyplot::UnitSystem unitSystem)
	Sets the axis unit system

void	SetGraphStyle (int styleIndex, NXOpen::CAE::Xyplot::GraphStyle graphStyle)
	Sets the graph style Created in NX7.5.0.

void	SetTextOption (NXOpen::CAE::Xyplot::TextType textType, const NXOpen::CAE::Xyplot::TextOption &textOption)
	Sets the text option

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Manages the 2D display style
Not support KF.

Created in NX7.5.0.

Member Function Documentation

NXOpen::CAE::Xyplot::ComplexOption2D NXOpen::CAE::Xyplot::Template2D::ComplexOption ( )

Returns the complex option
Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

NXOpen::CAE::Xyplot::BarOption2D NXOpen::CAE::Xyplot::Template2D::GetBarOption ( int styleIndex )

Gets bar style option.

Returns: Bar style option

Deprecated:: Deprecated in NX9.0.0. Use CAE::Xyplot::BaseTemplate::GetBarStyleSetting instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex Style index

NXOpen::CAE::Xyplot::LineOption2D NXOpen::CAE::Xyplot::Template2D::GetLineOption ( int styleIndex )

Gets line style option.

Returns: Line style option

Deprecated:: Deprecated in NX9.0.0. Use CAE::Xyplot::BaseTemplate::GetLineStyleSetting instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex Style index

NXOpen::CAE::Xyplot::PlateOption2D NXOpen::CAE::Xyplot::Template2D::GetPlateOption ( int styleIndex )

Gets plate style option.

Returns: Plate style option

Deprecated:: Deprecated in NX9.0.0. Use CAE::Xyplot::BaseTemplate::GetPlateStyleSetting instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex Style index

NXOpen::CAE::Xyplot::GridLayout2D NXOpen::CAE::Xyplot::Template2D::GridLayout ( )

Returns the grid layout style

Deprecated:: Deprecated in NX9.0.0.

Use CAE::Xyplot::BaseTemplate::GridLayoutStyleSetting instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

double NXOpen::CAE::Xyplot::Template2D::PhaseAngle ( )

Returns the phase angle in degree
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::Xyplot::PhaseRangeOption NXOpen::CAE::Xyplot::Template2D::PhaseRangeOption ( )

Returns the phase range option
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::Template2D::SetBarOption	(	int	styleIndex,
		const NXOpen::CAE::Xyplot::BarOption2D &	barOption
	)

Sets bar style option

Deprecated:: Deprecated in NX9.0.0.

Use CAE::Xyplot::IDisplayStyle::CommitChange instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex	Style index
barOption	Bar style option

void NXOpen::CAE::Xyplot::Template2D::SetComplexOption ( NXOpen::CAE::Xyplot::ComplexOption2D complexOption )

Sets the complex option
Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

complexOption Complex option

void NXOpen::CAE::Xyplot::Template2D::SetGridLayout ( const NXOpen::CAE::Xyplot::GridLayout2D & gridLayout )

Sets the grid layout style

Deprecated:: Deprecated in NX9.0.0.

Use CAE::Xyplot::IDisplayStyle::CommitChange instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

gridLayout Grid layout style

void NXOpen::CAE::Xyplot::Template2D::SetLineOption	(	int	styleIndex,
		const NXOpen::CAE::Xyplot::LineOption2D &	lineOption
	)

Sets line style option

Deprecated:: Deprecated in NX9.0.0.

Use CAE::Xyplot::IDisplayStyle::CommitChange instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex	Style index
lineOption	Line style option

void NXOpen::CAE::Xyplot::Template2D::SetPhaseAngle ( double phaseAngle )

Sets the phase angle in degree
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

phaseAngle Phase angle

void NXOpen::CAE::Xyplot::Template2D::SetPhaseRangeOption ( NXOpen::CAE::Xyplot::PhaseRangeOption phaseRangeOption )

Sets the phase range option
Created in NX8.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

phaseRangeOption Phase range option

void NXOpen::CAE::Xyplot::Template2D::SetPlateOption	(	int	styleIndex,
		const NXOpen::CAE::Xyplot::PlateOption2D &	plateOption
	)

Sets plate style option

Deprecated:: Deprecated in NX9.0.0.

Use CAE::Xyplot::IDisplayStyle::CommitChange instead.

Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

styleIndex	Style index
plateOption	Plate style option

void NXOpen::CAE::Xyplot::Template2D::SetShowOrderedAbscissa ( bool ordered )

Sets a value indicating whether to show the data by ordered abscissa or not
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

ordered ordered

bool NXOpen::CAE::Xyplot::Template2D::ShowOrderedAbscissa ( )

Returns a value indicating whether to show the data by ordered abscissa or not
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::Template2D::SwitchXyAxis ( )

Switches the X/Y axis
Created in NX7.5.0.

License requirements : nx_ftk ("NX Advanced Graphing")

The documentation for this class was generated from the following file:

CAE_Xyplot_Template2D.hxx
