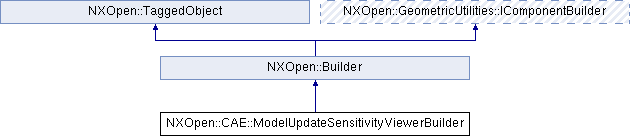

Inheritance diagram for NXOpen::CAE::ModelUpdateSensitivityViewerBuilder:

Public Member Functions
std::vector< NXString >	GetDesignVariableLabels ()
	Gets the design variable labels.

std::vector< double >	GetSensitivityValues ()
	Gets the sensitivity values.

void	GetTargetIds (std::vector< int > &targetIds)
	Gets the target IDs Created in NX6.0.0.

void	SetDesignVariableLabels (std::vector< NXString > &designVaraibleLabels)
	Sets the design variable labels Created in NX6.0.0.

void	SetSensitivityValues (const std::vector< double > &sensitivityValues)
	Sets the sensitivity values Created in NX6.0.0.

void	SetTargetIds (const std::vector< int > &targetIds)
	Sets the terget IDs Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Member Function Documentation

std::vector<NXString> NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::GetDesignVariableLabels ( )

Gets the design variable labels.

Returns: SM allocated array containing the design variable labels
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

std::vector<double> NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::GetSensitivityValues ( )

Gets the sensitivity values.

Returns: SM allocated array containing the sensitivity values
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::GetTargetIds ( std::vector< int > & targetIds )

Gets the target IDs
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

targetIds SM allocated array containing the targets ID

void NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::SetDesignVariableLabels ( std::vector< NXString > & designVaraibleLabels )

Sets the design variable labels
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

designVaraibleLabels The design variable labels
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::SetSensitivityValues ( const std::vector< double > & sensitivityValues )

Sets the sensitivity values
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

sensitivityValues The sensitivity values

void NXOpen::CAE::ModelUpdateSensitivityViewerBuilder::SetTargetIds ( const std::vector< int > & targetIds )

Sets the terget IDs
Created in NX6.0.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

targetIds The target IDs
