NXOpen::CAE::MeshCollectorOccurrenceBuilder Class Reference

Represents a CAE::MeshCollectorOccurrenceBuilder
To create a new instance of this class, use CAE::MeshManagerOccurrence::CreateOccurrenceBuilder

Created in NX5.0.0. More...

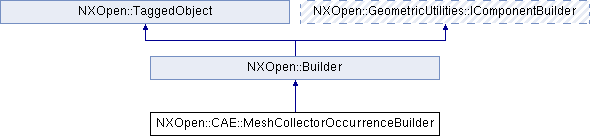

Inheritance diagram for NXOpen::CAE::MeshCollectorOccurrenceBuilder:

Public Member Functions
NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the Mesh Collector Occurrence's Property Table Created in NX5.0.0.
void	SetOverrideProperty (const NXString &overrideProperty, bool updateThisOverride)
	Update-create or delete the passed in override based on the updateThisOverride flag.
void	SetOverrideProperty (const char *overrideProperty, bool updateThisOverride)
	Update-create or delete the passed in override based on the updateThisOverride flag.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::MeshCollectorOccurrenceBuilder
To create a new instance of this class, use CAE::MeshManagerOccurrence::CreateOccurrenceBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::PropertyTable* NXOpen::CAE::MeshCollectorOccurrenceBuilder::PropertyTable

(

)

Returns the Mesh Collector Occurrence's Property Table
Created in NX5.0.0.

License requirements : None

void NXOpen::CAE::MeshCollectorOccurrenceBuilder::SetOverrideProperty	(	const NXString &	overrideProperty,
		bool	updateThisOverride
	)

Update-create or delete the passed in override based on the updateThisOverride flag.

Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

overrideProperty	Override Property name NOTE: The full Unicode character set is not supported for this parameter.
updateThisOverride	update-create or delete the passed override

void NXOpen::CAE::MeshCollectorOccurrenceBuilder::SetOverrideProperty	(	const char *	overrideProperty,
		bool	updateThisOverride
	)

Update-create or delete the passed in override based on the updateThisOverride flag.

Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

overrideProperty	Override Property name NOTE: The full Unicode character set is not supported for this parameter.
updateThisOverride	update-create or delete the passed override

---

The documentation for this class was generated from the following file:

• CAE_MeshCollectorOccurrenceBuilder.hxx
