Represents 0d Mesh
To create or edit an instance of this class, use CAE::Mesh0dBuilder
Created in NX6.0.0.
More...

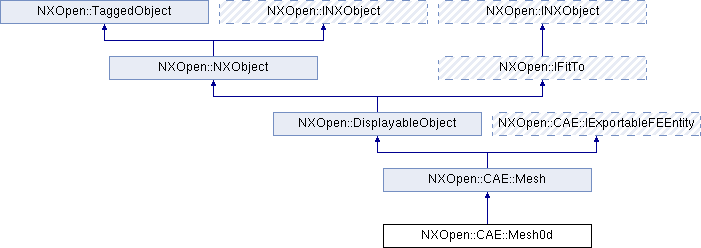

Inheritance diagram for NXOpen::CAE::Mesh0d:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::CAE::Mesh | |
| NXOpen::CAE::PropertyTable * | ElementPropertyTable () |
| Returns the element property table associated with the mesh object Created in NX5.0.1. | |
| NXOpen::CAE::MeshDisplaySettings * | GetMeshDisplaySettings () |
| The MeshDisplaySettings for this mesh. | |
| virtual std::vector< NXString > | GetSolverCardSyntax () |
| Returns the solver card syntax strings for this entity. | |
| bool | LockStatus () |
| Returns the lock status for this mesh. | |
| NXOpen::CAE::IMeshCollector * | MeshCollector () |
| Returns the MeshCollector for this mesh. | |
| void | SetLockStatus (bool lockStatus) |
| Sets the lock status for this mesh. | |
Detailed Description
Represents 0d Mesh
To create or edit an instance of this class, use CAE::Mesh0dBuilder
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- CAE_Mesh0d.hxx
