NXOpen::CAE::LaminatePostReportBuilder Class Reference

Represents a CAE::LaminatePostReport builder
There is no kf creator. More...

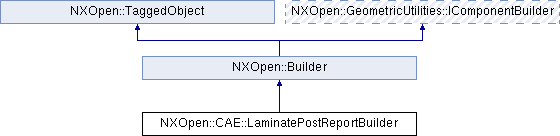

Inheritance diagram for NXOpen::CAE::LaminatePostReportBuilder:

Public Member Functions
void	GetSelectedResults (std::vector< NXString > &resultNames, std::vector< NXString > &loadcaseNames, std::vector< NXString > &iterationNames)
	Get the selected results Created in NX8.0.0.
NXString	Name ()
	Returns the name of the laminate post report setup Created in NX8.0.0.
void	SetName (const NXString &name)
	Sets the name of the laminate post report setup Created in NX8.0.0.
void	SetName (const char *name)
	Sets the name of the laminate post report setup Created in NX8.0.0.
void	SetSelectedResults (std::vector< NXString > &resultNames, std::vector< NXString > &loadcaseNames, std::vector< NXString > &iterationNames)
	Set the selected results Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::LaminatePostReport builder
There is no kf creator.

Created in NX8.0.0.

Member Function Documentation

void NXOpen::CAE::LaminatePostReportBuilder::GetSelectedResults	(	std::vector< NXString > &	resultNames,
		std::vector< NXString > &	loadcaseNames,
		std::vector< NXString > &	iterationNames
	)

Get the selected results
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

resultNames	resultnames
loadcaseNames	loadcasenames
iterationNames	iterationnames

NXString NXOpen::CAE::LaminatePostReportBuilder::Name

(

)

Returns the name of the laminate post report setup
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::LaminatePostReportBuilder::SetName

(

const NXString &

name

)

Sets the name of the laminate post report setup
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name

name

void NXOpen::CAE::LaminatePostReportBuilder::SetName

(

const char *

name

)

Sets the name of the laminate post report setup
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name

name

void NXOpen::CAE::LaminatePostReportBuilder::SetSelectedResults	(	std::vector< NXString > &	resultNames,
		std::vector< NXString > &	loadcaseNames,
		std::vector< NXString > &	iterationNames
	)

Set the selected results
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

resultNames	NOTE: The full Unicode character set is not supported for this parameter.
loadcaseNames	NOTE: The full Unicode character set is not supported for this parameter.
iterationNames	NOTE: The full Unicode character set is not supported for this parameter.

---

The documentation for this class was generated from the following file:

• CAE_LaminatePostReportBuilder.hxx
