Represents one ply in a laminate layup. More...

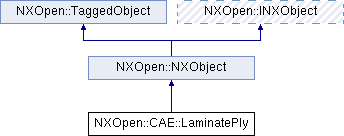

Inheritance diagram for NXOpen::CAE::LaminatePly:

Public Types
enum	InterLaminarFailureTheoryType { InterLaminarFailureTheoryTypeNone, InterLaminarFailureTheoryTypeTransverseShearStress, InterLaminarFailureTheoryTypeNormalStress, InterLaminarFailureTheoryTypeUserDefined }
	Inter-Laminar failure theory types. More...

enum	PlyFailureTheoryType { PlyFailureTheoryTypeNone, PlyFailureTheoryTypeHill, PlyFailureTheoryTypeHoffman, PlyFailureTheoryTypeTsaiWu, PlyFailureTheoryTypeMaxStrain, PlyFailureTheoryTypeMaxStress, PlyFailureTheoryTypeMaxTransverseShear, PlyFailureTheoryTypeVonMisesYield, PlyFailureTheoryTypeVonMisesUltimate, PlyFailureTheoryTypeUserDefined }
	Ply failure theory types. More...

enum	SolidPropertyType { SolidPropertyTypeLayered, SolidPropertyTypeHomogeneous }
	Solid property type for laminate extrusion. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
int	Color ()
	Returns the ply color Created in NX5.0.0.

void	ComputeDraping ()
	Launch the draping algorithm, overriding previous results Created in NX7.5.1.

void	CopyDrapingResults (NXOpen::CAE::LaminateDrapingOrientation *drapingResults)
	Copy draping results.

NXOpen::CAE::LaminateDrapingDataBuilder *	CreateDrapingDataBuilder ()
	Creates a CAE::LaminateDrapingDataBuilder.

NXOpen::CAE::LaminateDrapingExtensionBuilder *	CreateDrapingExtensionBuilder ()
	Creates a CAE::LaminateDrapingExtensionBuilder.

NXOpen::CAE::LaminatePlyMaxThicknessVarBuilder *	CreateLaminatePlyMaxThicknessVarBuilder ()
	Creates a CAE::LaminatePlyMaxThicknessVarBuilder.

NXString	Description ()
	Returns the ply description Created in NX7.5.0.

NXOpen::CAE::LaminateDrapingExtension *	DrapingExtension ()
	Returns the draping extension selection Created in NX8.5.0.

NXOpen::CAE::LaminateDrapingData *	DrapingInput ()
	Returns the draping data (draping settings) Created in NX7.5.0.

void	ExportDrapingDomainAsGroup ()
	Exports draping domain to a group Created in NX7.5.2.

void	ExportDrapingResults (const NXString &csvFilename, bool showShearAngle, bool showYarnAngle, bool showPrimaryDirection, bool showSecondaryDirection, bool showNormalDirection)
	Exports draping results to a csv file.

void	ExportDrapingResults (const char *csvFilename, bool showShearAngle, bool showYarnAngle, bool showPrimaryDirection, bool showSecondaryDirection, bool showNormalDirection)
	Exports draping results to a csv file.

int	GlobalId ()
	Returns the ply global id Created in NX6.0.0.

void	Information (bool detailed)
	Display global ply information Created in NX7.5.1.

NXOpen::CAE::LaminatePly::InterLaminarFailureTheoryType	InterLaminarFailureTheory ()
	Returns the inter laminar failure theory used in a solid laminate nastran analysis (PCOMPS) Created in NX8.0.0.

double	Orientation ()
	Returns the ply orientation angle in degrees, relative to local material orientation Created in NX5.0.0.

NXOpen::CAE::LaminatePly::PlyFailureTheoryType	PlyFailureTheory ()
	Returns the ply failure theory used in a solid laminate nastran analysis (PCOMPS) Created in NX8.0.0.

void	ResetExtensionTarget (NXOpen::CAE::LaminatePly *targetPly)
	For global link ply subtype, resets the ply link target Created in NX8.5.0.

void	SetColor (int orientation)
	Sets the ply color Created in NX5.0.0.

void	SetDescription (const NXString &description)
	Sets the ply description Created in NX7.5.0.

void	SetDescription (const char *description)
	Sets the ply description Created in NX7.5.0.

void	SetDrapingExtension (NXOpen::CAE::LaminateDrapingExtension *drapingExtension)
	Sets the draping extension selection Created in NX8.5.0.

void	SetDrapingInput (NXOpen::CAE::LaminateDrapingData *drapingInput)
	Sets the draping data (draping settings) Created in NX7.5.0.

void	SetGlobalId (int globalId)
	Sets the ply global id Created in NX6.0.0.

void	SetInterLaminarFailureTheory (NXOpen::CAE::LaminatePly::InterLaminarFailureTheoryType interLaminarFailureTheory)
	Sets the inter laminar failure theory used in a solid laminate nastran analysis (PCOMPS) Created in NX8.0.0.

void	SetMaterialByName (const NXString &name)
	Sets the material by name.

void	SetMaterialByName (const char *name)
	Sets the material by name.

void	SetOrientation (double orientation)
	Sets the ply orientation angle in degrees, relative to local material orientation Created in NX5.0.0.

void	SetPlyFailureTheory (NXOpen::CAE::LaminatePly::PlyFailureTheoryType plyFailureTheory)
	Sets the ply failure theory used in a solid laminate nastran analysis (PCOMPS) Created in NX8.0.0.

void	SetPlyMaterialByName (const NXString &name)
	Sets the ply material by name.

void	SetPlyMaterialByName (const char *name)
	Sets the ply material by name.

void	SetSolidProperty (NXOpen::CAE::LaminatePly::SolidPropertyType solidProp)
	Sets the ply solid property Created in NX9.0.0.

void	SetThickness (double thickness)
	Sets the ply thickness, in part units (inches or millimeters) Created in NX5.0.0.

void	SetUserDefinedInterLaminarFailureTheory (const NXString &name)
	Sets the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

void	SetUserDefinedInterLaminarFailureTheory (const char *name)
	Sets the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

void	SetUserDefinedPlyFailureTheory (const NXString &name)
	Sets the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

void	SetUserDefinedPlyFailureTheory (const char *name)
	Sets the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

NXOpen::CAE::LaminatePly::SolidPropertyType	SolidProperty ()
	Returns the ply solid property Created in NX9.0.0.

double	Thickness ()
	Returns the ply thickness, in part units (inches or millimeters) Created in NX5.0.0.

NXString	UserDefinedInterLaminarFailureTheory ()
	Returns the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

NXString	UserDefinedPlyFailureTheory ()
	Returns the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS) Created in NX9.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents one ply in a laminate layup.

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::LaminatePly::InterLaminarFailureTheoryType

Inter-Laminar failure theory types.

Enumerator:

InterLaminarFailureTheoryTypeNone	No failure theory selected.
InterLaminarFailureTheoryTypeTransverseShearStress	Transverse Shear Stress inter-laminar failure criteria.
InterLaminarFailureTheoryTypeNormalStress	Normal Stress inter-laminar failure criteria.
InterLaminarFailureTheoryTypeUserDefined	User defined interlaminar failure theory (thru a user dll)

enum NXOpen::CAE::LaminatePly::PlyFailureTheoryType

Ply failure theory types.

Enumerator:

PlyFailureTheoryTypeNone	No failure theory selected.
PlyFailureTheoryTypeHill	Hill failure criteria.
PlyFailureTheoryTypeHoffman	Hoffman failure criteria.
PlyFailureTheoryTypeTsaiWu	Tsai-Wu failure criteria.
PlyFailureTheoryTypeMaxStrain	Maximum Strain failure criteria.
PlyFailureTheoryTypeMaxStress	Maximum Stress failure criteria.
PlyFailureTheoryTypeMaxTransverseShear	Maximum Transverse Shear Stress failure criteria.
PlyFailureTheoryTypeVonMisesYield	Von Mises Yield failure criteria.
PlyFailureTheoryTypeVonMisesUltimate	Von Mises Utlimate failure criteria.
PlyFailureTheoryTypeUserDefined	User defined ply failure theory (thru a user dll)

enum NXOpen::CAE::LaminatePly::SolidPropertyType

Solid property type for laminate extrusion.

Enumerator:

SolidPropertyTypeLayered	Extruded plies will use regular layered property.
SolidPropertyTypeHomogeneous	Extruded plies will use homogeneous property.

Member Function Documentation

int NXOpen::CAE::LaminatePly::Color ( )

Returns the ply color
Created in NX5.0.0.

License requirements : None

void NXOpen::CAE::LaminatePly::ComputeDraping ( )

Launch the draping algorithm, overriding previous results
Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::LaminatePly::CopyDrapingResults ( NXOpen::CAE::LaminateDrapingOrientation * drapingResults )

Copy draping results.

Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

drapingResults draping results

NXOpen::CAE::LaminateDrapingDataBuilder* NXOpen::CAE::LaminatePly::CreateDrapingDataBuilder ( )

Creates a CAE::LaminateDrapingDataBuilder.

Returns: Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

NXOpen::CAE::LaminateDrapingExtensionBuilder* NXOpen::CAE::LaminatePly::CreateDrapingExtensionBuilder ( )

Creates a CAE::LaminateDrapingExtensionBuilder.

Returns: Created in NX8.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

NXOpen::CAE::LaminatePlyMaxThicknessVarBuilder* NXOpen::CAE::LaminatePly::CreateLaminatePlyMaxThicknessVarBuilder ( )

Creates a CAE::LaminatePlyMaxThicknessVarBuilder.

Returns: Created in NX8.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

NXString NXOpen::CAE::LaminatePly::Description ( )

Returns the ply description
Created in NX7.5.0.

License requirements : None

NXOpen::CAE::LaminateDrapingExtension* NXOpen::CAE::LaminatePly::DrapingExtension ( )

Returns the draping extension selection
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::LaminateDrapingData* NXOpen::CAE::LaminatePly::DrapingInput ( )

Returns the draping data (draping settings)
Created in NX7.5.0.

License requirements : None

void NXOpen::CAE::LaminatePly::ExportDrapingDomainAsGroup ( )

Exports draping domain to a group
Created in NX7.5.2.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::LaminatePly::ExportDrapingResults	(	const NXString &	csvFilename,
		bool	showShearAngle,
		bool	showYarnAngle,
		bool	showPrimaryDirection,
		bool	showSecondaryDirection,
		bool	showNormalDirection
	)

Exports draping results to a csv file.

Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename	NOTE: The full Unicode character set is not supported for this parameter.
showShearAngle	showshearangle
showYarnAngle	showyarnangle
showPrimaryDirection	showprimarydirection
showSecondaryDirection	showsecondarydirection
showNormalDirection	shownormaldirection

void NXOpen::CAE::LaminatePly::ExportDrapingResults	(	const char *	csvFilename,
		bool	showShearAngle,
		bool	showYarnAngle,
		bool	showPrimaryDirection,
		bool	showSecondaryDirection,
		bool	showNormalDirection
	)

Exports draping results to a csv file.

Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename	NOTE: The full Unicode character set is not supported for this parameter.
showShearAngle	showshearangle
showYarnAngle	showyarnangle
showPrimaryDirection	showprimarydirection
showSecondaryDirection	showsecondarydirection
showNormalDirection	shownormaldirection

int NXOpen::CAE::LaminatePly::GlobalId ( )

Returns the ply global id
Created in NX6.0.0.

License requirements : None

void NXOpen::CAE::LaminatePly::Information ( bool detailed )

Display global ply information
Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

detailed detailed

NXOpen::CAE::LaminatePly::InterLaminarFailureTheoryType NXOpen::CAE::LaminatePly::InterLaminarFailureTheory ( )

Returns the inter laminar failure theory used in a solid laminate nastran analysis (PCOMPS)
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::LaminatePly::Orientation ( )

Returns the ply orientation angle in degrees, relative to local material orientation
Created in NX5.0.0.

License requirements : None

NXOpen::CAE::LaminatePly::PlyFailureTheoryType NXOpen::CAE::LaminatePly::PlyFailureTheory ( )

Returns the ply failure theory used in a solid laminate nastran analysis (PCOMPS)
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::LaminatePly::ResetExtensionTarget ( NXOpen::CAE::LaminatePly * targetPly )

For global link ply subtype, resets the ply link target
Created in NX8.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

targetPly The new extension target

void NXOpen::CAE::LaminatePly::SetColor ( int orientation )

Sets the ply color
Created in NX5.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

orientation ply color

void NXOpen::CAE::LaminatePly::SetDescription ( const NXString & description )

Sets the ply description
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

description ply description

void NXOpen::CAE::LaminatePly::SetDescription ( const char * description )

Sets the ply description
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

description ply description

void NXOpen::CAE::LaminatePly::SetDrapingExtension ( NXOpen::CAE::LaminateDrapingExtension * drapingExtension )

Sets the draping extension selection
Created in NX8.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

drapingExtension draping extension

void NXOpen::CAE::LaminatePly::SetDrapingInput ( NXOpen::CAE::LaminateDrapingData * drapingInput )

Sets the draping data (draping settings)
Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

drapingInput draping algorithm input

void NXOpen::CAE::LaminatePly::SetGlobalId ( int globalId )

Sets the ply global id
Created in NX6.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

globalId ply color

void NXOpen::CAE::LaminatePly::SetInterLaminarFailureTheory ( NXOpen::CAE::LaminatePly::InterLaminarFailureTheoryType interLaminarFailureTheory )

Sets the inter laminar failure theory used in a solid laminate nastran analysis (PCOMPS)
Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

interLaminarFailureTheory interlaminarfailuretheory

void NXOpen::CAE::LaminatePly::SetMaterialByName ( const NXString & name )

Sets the material by name.

Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	material name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminatePly::SetMaterialByName ( const char * name )

Sets the material by name.

Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	material name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminatePly::SetOrientation ( double orientation )

Sets the ply orientation angle in degrees, relative to local material orientation
Created in NX5.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

orientation ply orientation

void NXOpen::CAE::LaminatePly::SetPlyFailureTheory ( NXOpen::CAE::LaminatePly::PlyFailureTheoryType plyFailureTheory )

Sets the ply failure theory used in a solid laminate nastran analysis (PCOMPS)
Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

plyFailureTheory plyfailuretheory

void NXOpen::CAE::LaminatePly::SetPlyMaterialByName ( const NXString & name )

Sets the ply material by name.

Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	ply material name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminatePly::SetPlyMaterialByName ( const char * name )

Sets the ply material by name.

Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	ply material name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminatePly::SetSolidProperty ( NXOpen::CAE::LaminatePly::SolidPropertyType solidProp )

Sets the ply solid property
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

solidProp ply solid property

void NXOpen::CAE::LaminatePly::SetThickness ( double thickness )

Sets the ply thickness, in part units (inches or millimeters)
Created in NX5.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

thickness ply thickness

void NXOpen::CAE::LaminatePly::SetUserDefinedInterLaminarFailureTheory ( const NXString & name )

Sets the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

name	the user defined interlaminar failure theory name

void NXOpen::CAE::LaminatePly::SetUserDefinedInterLaminarFailureTheory ( const char * name )

Sets the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

name	the user defined interlaminar failure theory name

void NXOpen::CAE::LaminatePly::SetUserDefinedPlyFailureTheory ( const NXString & name )

Sets the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

name	the user defined ply failure theory name

void NXOpen::CAE::LaminatePly::SetUserDefinedPlyFailureTheory ( const char * name )

Sets the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

name	the user defined ply failure theory name

NXOpen::CAE::LaminatePly::SolidPropertyType NXOpen::CAE::LaminatePly::SolidProperty ( )

Returns the ply solid property
Created in NX9.0.0.

License requirements : None

double NXOpen::CAE::LaminatePly::Thickness ( )

Returns the ply thickness, in part units (inches or millimeters)
Created in NX5.0.0.

License requirements : None

NXString NXOpen::CAE::LaminatePly::UserDefinedInterLaminarFailureTheory ( )

Returns the user defined interlaminar failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAE::LaminatePly::UserDefinedPlyFailureTheory ( )

Returns the user defined ply failure theory name used in a solid laminate nastran analysis (PCOMPS)
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_LaminatePly.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
