Represent a global layup in the ply based modeling. More...

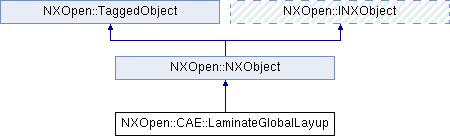

Inheritance diagram for NXOpen::CAE::LaminateGlobalLayup:

Public Types
enum	StackingRecipeType { StackingRecipeTypeNormal, StackingRecipeTypeSymmetric, StackingRecipeTypeSymmetricWithCore, StackingRecipeTypeRepeated, StackingRecipeTypeRepeatedWithCore }
	Used to specify the stacking recipe of the global layup. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
bool	ActiveStatus ()
	Returns the global layup active status Created in NX7.5.0.

void	AutogroupByMaterials ()
	Create groups for materials Created in NX9.0.0.

void	ClearLayup ()
	Removes all the ply groups and plies from the global layup Created in NX7.5.0.

NXOpen::CAE::LaminateFiberOrientationOptionsBuilder *	CreateFiberOrientationOptionsBuilder ()
	Creates a CAE::LaminateFiberOrientationOptionsBuilder.

NXOpen::CAE::LaminateLockAngleBuilder *	CreateLockAngleBuilder ()
	Creates a CAE::LaminateLockAngleBuilder.

void	DefineSymPlyidRange (int minId, int maxId)
	Defines the range of id to be used for symmetric and repeated plies.

void	ExportDrapingDomainAsGroups (bool individualPlyGroups)
	Exports draping domain to a group Created in NX7.5.2.

void	ExportDrapingResults (const NXString &csvFilename, bool showShearAngle, bool showYarnAngle, bool showPrimaryDirection, bool showSecondaryDirection, bool showNormalDirection)
	Exports draping results to a csv file.

void	ExportDrapingResults (const char *csvFilename, bool showShearAngle, bool showYarnAngle, bool showPrimaryDirection, bool showSecondaryDirection, bool showNormalDirection)
	Exports draping results to a csv file.

void	ExportLayup (const NXString &csvFilename)
	Export simple layup definition to a csv file.

void	ExportLayup (const char *csvFilename)
	Export simple layup definition to a csv file.

void	ExportPliesToFibersim (const NXString &filename)
	Exports ply definitions to FiberSim using the hdf5 file format.

void	ExportPliesToFibersim (const char *filename)
	Exports ply definitions to FiberSim using the hdf5 file format.

NXOpen::CAE::LaminateFiberOrientationOptions *	FiberOrientationOptions ()
	Returns the fiber orientation options Created in NX7.5.0.

void	Information (bool detailed)
	Display global layup information Created in NX7.5.1.

int	Label ()
	Returns the global layup label Created in NX7.5.0.

NXString	Name ()
	Returns the global layup name Created in NX7.5.0.

NXOpen::CAE::LaminateGlobalLayupPlyGroupCollection *	PlyGroups ()
	The list of ply groups associated to global layup Created in NX6.0.2.

void	RefreshLinkedGroups ()
	Refresh the global layup linked ply group state Created in NX7.5.0.

void	SetActiveStatus (bool active)
	Sets the global layup active status Created in NX7.5.0.

void	SetLabel (int label)
	Sets the global layup label Created in NX7.5.0.

void	SetName (const NXString &name)
	Sets the global layup name Created in NX7.5.0.

void	SetName (const char *name)
	Sets the global layup name Created in NX7.5.0.

void	SetStackingRecipe (NXOpen::CAE::LaminateGlobalLayup::StackingRecipeType stacinkRecipe)
	Sets the global layup stacking recipe Created in NX7.5.0.

NXOpen::CAE::LaminateGlobalLayup::StackingRecipeType	StackingRecipe ()
	Returns the global layup stacking recipe Created in NX7.5.0.

void	UpdateDraping ()
	Compute draping for all the plies under this global layup.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represent a global layup in the ply based modeling.

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::LaminateGlobalLayup::StackingRecipeType

Used to specify the stacking recipe of the global layup.

Enumerator:

StackingRecipeTypeNormal	Normal.
StackingRecipeTypeSymmetric	Symmetric.
StackingRecipeTypeSymmetricWithCore	Symmetric with core.
StackingRecipeTypeRepeated	Repeated.
StackingRecipeTypeRepeatedWithCore	Repeated with core.

Member Function Documentation

bool NXOpen::CAE::LaminateGlobalLayup::ActiveStatus ( )

Returns the global layup active status
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::LaminateGlobalLayup::AutogroupByMaterials ( )

Create groups for materials
Created in NX9.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::LaminateGlobalLayup::ClearLayup ( )

Removes all the ply groups and plies from the global layup
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

NXOpen::CAE::LaminateFiberOrientationOptionsBuilder* NXOpen::CAE::LaminateGlobalLayup::CreateFiberOrientationOptionsBuilder ( )

Creates a CAE::LaminateFiberOrientationOptionsBuilder.

Returns: Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

NXOpen::CAE::LaminateLockAngleBuilder* NXOpen::CAE::LaminateGlobalLayup::CreateLockAngleBuilder ( )

Creates a CAE::LaminateLockAngleBuilder.

Returns: Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::LaminateGlobalLayup::DefineSymPlyidRange	(	int	minId,
		int	maxId
	)

Defines the range of id to be used for symmetric and repeated plies.

Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

minId	Minimum symmetric ply id, inclusive
maxId	Maximum symmetric ply id, exclusive

void NXOpen::CAE::LaminateGlobalLayup::ExportDrapingDomainAsGroups ( bool individualPlyGroups )

Exports draping domain to a group
Created in NX7.5.2.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

individualPlyGroups If true, create one group per ply. If false, put everything in the same group

void NXOpen::CAE::LaminateGlobalLayup::ExportDrapingResults	(	const NXString &	csvFilename,
		bool	showShearAngle,
		bool	showYarnAngle,
		bool	showPrimaryDirection,
		bool	showSecondaryDirection,
		bool	showNormalDirection
	)

Exports draping results to a csv file.

Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename	NOTE: The full Unicode character set is not supported for this parameter.
showShearAngle	showshearangle
showYarnAngle	showyarnangle
showPrimaryDirection	showprimarydirection
showSecondaryDirection	showsecondarydirection
showNormalDirection	shownormaldirection

void NXOpen::CAE::LaminateGlobalLayup::ExportDrapingResults	(	const char *	csvFilename,
		bool	showShearAngle,
		bool	showYarnAngle,
		bool	showPrimaryDirection,
		bool	showSecondaryDirection,
		bool	showNormalDirection
	)

Exports draping results to a csv file.

Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename	NOTE: The full Unicode character set is not supported for this parameter.
showShearAngle	showshearangle
showYarnAngle	showyarnangle
showPrimaryDirection	showprimarydirection
showSecondaryDirection	showsecondarydirection
showNormalDirection	shownormaldirection

void NXOpen::CAE::LaminateGlobalLayup::ExportLayup ( const NXString & csvFilename )

Export simple layup definition to a csv file.

       Corresponds to the CSV layup export button in the Ply Layup section of the Layup Modeler dialog.

Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminateGlobalLayup::ExportLayup ( const char * csvFilename )

Export simple layup definition to a csv file.

       Corresponds to the CSV layup export button in the Ply Layup section of the Layup Modeler dialog.

Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

csvFilename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminateGlobalLayup::ExportPliesToFibersim ( const NXString & filename )

Exports ply definitions to FiberSim using the hdf5 file format.

Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

filename File to which the plies will be exported using the FiberSim hdf5 format.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::LaminateGlobalLayup::ExportPliesToFibersim ( const char * filename )

Exports ply definitions to FiberSim using the hdf5 file format.

Created in NX8.0.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

filename File to which the plies will be exported using the FiberSim hdf5 format.
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::LaminateFiberOrientationOptions* NXOpen::CAE::LaminateGlobalLayup::FiberOrientationOptions ( )

Returns the fiber orientation options
Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

void NXOpen::CAE::LaminateGlobalLayup::Information ( bool detailed )

Display global layup information
Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

detailed detailed

int NXOpen::CAE::LaminateGlobalLayup::Label ( )

Returns the global layup label
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

NXString NXOpen::CAE::LaminateGlobalLayup::Name ( )

virtual

Returns the global layup name
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Reimplemented from NXOpen::NXObject.

NXOpen::CAE::LaminateGlobalLayupPlyGroupCollection* NXOpen::CAE::LaminateGlobalLayup::PlyGroups ( )

The list of ply groups associated to global layup
Created in NX6.0.2.

void NXOpen::CAE::LaminateGlobalLayup::RefreshLinkedGroups ( )

Refresh the global layup linked ply group state
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::LaminateGlobalLayup::SetActiveStatus ( bool active )

Sets the global layup active status
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

active layup active status

void NXOpen::CAE::LaminateGlobalLayup::SetLabel ( int label )

Sets the global layup label
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

label layup label

void NXOpen::CAE::LaminateGlobalLayup::SetName ( const NXString & name )

virtual

Sets the global layup name
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	layup name

Reimplemented from NXOpen::NXObject.

void NXOpen::CAE::LaminateGlobalLayup::SetName ( const char * name )

Sets the global layup name
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

name	layup name

void NXOpen::CAE::LaminateGlobalLayup::SetStackingRecipe ( NXOpen::CAE::LaminateGlobalLayup::StackingRecipeType stacinkRecipe )

Sets the global layup stacking recipe
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

stacinkRecipe stacking recipe

NXOpen::CAE::LaminateGlobalLayup::StackingRecipeType NXOpen::CAE::LaminateGlobalLayup::StackingRecipe ( )

Returns the global layup stacking recipe
Created in NX7.5.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::LaminateGlobalLayup::UpdateDraping ( )

Compute draping for all the plies under this global layup.

       Plies that are already computed wont be recomputed.

Created in NX7.5.1.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")
