Represents a CAE::DurabilityResultPath builder. More...

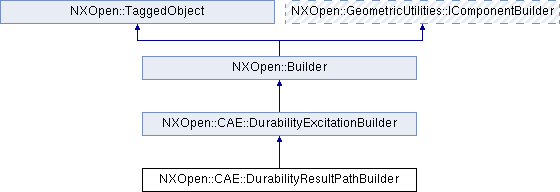

Inheritance diagram for NXOpen::CAE::DurabilityResultPathBuilder:

Public Member Functions
void	AddIteration (int iteration)
	Adds an iteration.

void	AddLoadcase (int loadcase)
	Adds a loadcase.

void	MoveLoadcaseDown (int index)
	Moves a loadcase down by index.

void	MoveLoadcaseUp (int index)
	Moves a loadcase up by index.

void	RemoveLoadcase (int index)
	Removes a loadcase by index.

void	SetScale (int index, double scale)
	Sets the scale for a loadcase by index.

Public Member Functions inherited from NXOpen::CAE::DurabilityExcitationBuilder
NXString	ExcitationName ()
	Returns the excitation name.

void	SetExcitationName (const NXString &title)
	Sets the excitation name.

void	SetExcitationName (const char *title)
	Sets the excitation name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::DurabilityResultPath builder.

There is no kf creator for this.

Created in NX8.0.0.

Member Function Documentation

void NXOpen::CAE::DurabilityResultPathBuilder::AddIteration ( int iteration )

Adds an iteration.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

iteration iteration

void NXOpen::CAE::DurabilityResultPathBuilder::AddLoadcase ( int loadcase )

Adds a loadcase.
