NXOpen::CAE::DurabilityLoadPatternBuilder Class Reference

Represents a CAE::DurabilityLoadPattern builder. More...

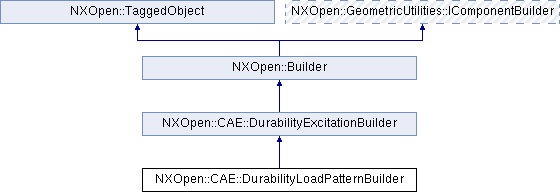

Inheritance diagram for NXOpen::CAE::DurabilityLoadPatternBuilder:

Public Types
enum	PatternTypeEnum { PatternTypeEnumHalfSineWave, PatternTypeEnumFullSineWave }
	the pattern type. More...

Public Member Functions
int	Iteration ()
	Returns the iteration.
int	Loadcase ()
	Returns the load case.
double	Offset ()
	Returns the offset.
NXOpen::CAE::DurabilityLoadPatternBuilder::PatternTypeEnum	PatternType ()
	Returns the pattern type.
double	Scale ()
	Returns the scale.
void	SetIteration (int iteration)
	Sets the iteration.
void	SetLoadcase (int loadcase)
	Sets the load case.
void	SetOffset (double offset)
	Sets the offset.
void	SetPatternType (NXOpen::CAE::DurabilityLoadPatternBuilder::PatternTypeEnum patternType)
	Sets the pattern type.
void	SetScale (double scale)
	Sets the scale.
Public Member Functions inherited from NXOpen::CAE::DurabilityExcitationBuilder
NXString	ExcitationName ()
	Returns the excitation name.
void	SetExcitationName (const NXString &title)
	Sets the excitation name.
void	SetExcitationName (const char *title)
	Sets the excitation name.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::DurabilityLoadPattern builder.

There is no kf creator for this.

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityLoadPatternBuilder::PatternTypeEnum

the pattern type.

Enumerator:

PatternTypeEnumHalfSineWave	Half.
PatternTypeEnumFullSineWave	Full.

Member Function Documentation

int NXOpen::CAE::DurabilityLoadPatternBuilder::Iteration

(

)

Returns the iteration.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

int NXOpen::CAE::DurabilityLoadPatternBuilder::Loadcase

(

)

Returns the load case.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityLoadPatternBuilder::Offset

(

)

Returns the offset.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityLoadPatternBuilder::PatternTypeEnum NXOpen::CAE::DurabilityLoadPatternBuilder::PatternType

(

)

Returns the pattern type.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityLoadPatternBuilder::Scale

(

)

Returns the scale.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityLoadPatternBuilder::SetIteration

(

int

iteration

)

Sets the iteration.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

iteration

iteration

void NXOpen::CAE::DurabilityLoadPatternBuilder::SetLoadcase

(

int

loadcase

)

Sets the load case.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

loadcase

loadcase

void NXOpen::CAE::DurabilityLoadPatternBuilder::SetOffset

(

double

offset

)

Sets the offset.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

offset

offset

void NXOpen::CAE::DurabilityLoadPatternBuilder::SetPatternType

(

NXOpen::CAE::DurabilityLoadPatternBuilder::PatternTypeEnum

patternType

)

Sets the pattern type.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

patternType

patterntype

void NXOpen::CAE::DurabilityLoadPatternBuilder::SetScale

(

double

scale

)

Sets the scale.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

scale

scale

---

The documentation for this class was generated from the following file:

• CAE_DurabilityLoadPatternBuilder.hxx
