Represents the builder for evaluating durability damage. More...

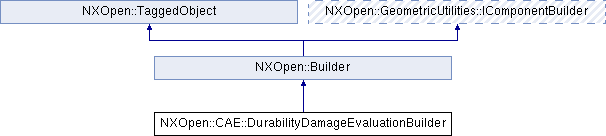

Inheritance diagram for NXOpen::CAE::DurabilityDamageEvaluationBuilder:

Public Types
enum	BwiWeldClassEnum { BwiWeldClassEnumB, BwiWeldClassEnumC, BwiWeldClassEnumD, BwiWeldClassEnumE, BwiWeldClassEnumF, BwiWeldClassEnumF2, BwiWeldClassEnumG, BwiWeldClassEnumW }
	the BWi Weld Class Enum. More...

enum	CyclicStressStrainModelEnum { CyclicStressStrainModelEnumLinear, CyclicStressStrainModelEnumPowerHardening, CyclicStressStrainModelEnumRambergOsgood }
	the cyclic stress strain model. More...

enum	EquivalentStressMethodEnum { EquivalentStressMethodEnumNone, EquivalentStressMethodEnumGoodman, EquivalentStressMethodEnumSoderberg, EquivalentStressMethodEnumGerberg, EquivalentStressMethodEnumMorrow }
	the equivalent stress method. More...

enum	FatigueLifeCriterionEnum { FatigueLifeCriterionEnumSmithWatsonTopper, FatigueLifeCriterionEnumStrainLifeMaximumPrincipal, FatigueLifeCriterionEnumStrainLifeMaximumShear, FatigueLifeCriterionEnumStressLife, FatigueLifeCriterionEnumBwi, FatigueLifeCriterionEnumTwi }
	the fatigue life criterion. More...

enum	ProbabilityOptionEnum { ProbabilityOptionEnumNumberOfStandardDeviations, ProbabilityOptionEnumProbabilityOfFailure }
	the Probability Option. More...

Public Member Functions
NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClassEnum	BwiWeldClass ()
	Returns the bwi weld class.

NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModelEnum	CyclicStressStrainModel ()
	Returns the cyclic stress strain model

bool	EnableDetailedOutput ()
	Returns the detailed output.

NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethodEnum	EquivalentStressMethod ()
	Returns the equivalent stress method

void	ExportResultsToCsv (const NXString &csvFilename)
	Export damage results to a csv file.

void	ExportResultsToCsv (const char *csvFilename)
	Export damage results to a csv file.

NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterionEnum	FatigueLifeCriterion ()
	Returns the fatigue life criterion

double	GetNthMeanBin (int index)
	Gets the nth mean bin.

double	GetNthNominalRangeBin (int index)
	Gets the nth nominal range bin.

bool	HighlightDamageValues ()
	Returns the highlighting of non-zero damage values.

int	HysterisisNumber ()
	Returns the hysterisis number

bool	IncludeMeanStress ()
	Returns the include mean stress

NXOpen::PhysicalMaterial *	MaterialTag ()
	Returns the material.

double	MaxMeanRange ()
	Returns the max mean range Created in NX8.0.0.

double	MaxNominalRange ()
	Returns the max nominal range Created in NX8.0.0.

double	MinMeanRange ()
	Returns the min mean range Created in NX8.0.0.

double	NotchFactor ()
	Returns the notch factor

int	NumberOfMaxBins ()
	Returns the number of max bins Created in NX8.0.0.

int	NumberOfMeanBins ()
	Returns the number of mean bins Created in NX8.0.0.

double	NumberOfStandardDeviations ()
	Returns the number of standard deviations.

double	PeakValleyTolerance ()
	Returns the peak valley tolerance Created in NX8.0.0.

double	PlateThicknessExponent ()
	Returns the plate thickness exponent.

double	PlateThicknessRatio ()
	Returns the plate thickness ratio.

double	ProbabilityOfFailure ()
	Returns the probability of failure.

NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOptionEnum	ProbabilityOption ()
	Returns the probability option.

void	RemoveFunction (int rowIndex)
	Removes the function.

void	SetBwiWeldClass (NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClassEnum bwiWeldClass)
	Sets the bwi weld class.

void	SetCyclicStressStrainModel (NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModelEnum cyclicStressStrainModel)
	Sets the cyclic stress strain model

void	SetEnableDetailedOutput (bool enableDetailedOutput)
	Sets the detailed output.

void	SetEquivalentStressMethod (NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethodEnum equivalentStressMethod)
	Sets the equivalent stress method

void	SetFatigue (NXOpen::CAE::DurabilityFatigue *fatigue)
	The fatigue settings.

void	SetFatigueLifeCriterion (NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterionEnum fatigueLifeCriterion)
	Sets the fatigue life criterion

void	SetFunctionData (NXOpen::TaggedObject *functionTag, int numberOfOccurrences, double lateralLoadingFactor, double scaleFactor)
	Sets the function data.

void	SetHighlightDamageValues (bool highlightDamageValues)
	Sets the highlighting of non-zero damage values.

void	SetHysterisisNumber (int hysterisisNumber)
	Sets the hysterisis number

void	SetIncludeMeanStress (bool includeMeanStress)
	Sets the include mean stress

void	SetLlr (int rowIndex, double lateralLoadingFactor)
	Sets the lateral loading ratio.

void	SetMaterialTag (NXOpen::PhysicalMaterial *materialTag)
	Sets the material.

void	SetMaxMeanRange (double maxMeanRange)
	Sets the max mean range Created in NX8.0.0.

void	SetMaxNominalRange (double maxNominalRange)
	Sets the max nominal range Created in NX8.0.0.

void	SetMinMeanRange (double minMeanRange)
	Sets the min mean range Created in NX8.0.0.

void	SetNotchFactor (double notchFactor)
	Sets the notch factor

void	SetNthMeanBin (int index, double nthMeanBin)
	Sets the nth mean bin.

void	SetNthNominalRangeBin (int index, double nthNominalRangeBin)
	Sets the nth nominal range bin.

void	SetNumberOfMaxBins (int numberOfMaxBins)
	Sets the number of max bins Created in NX8.0.0.

void	SetNumberOfMeanBins (int numberOfMeanBins)
	Sets the number of mean bins Created in NX8.0.0.

void	SetNumberOfStandardDeviations (double numberOfStandardDeviations)
	Sets the number of standard deviations.

void	SetOccurrence (int rowIndex, int occurrence)
	Sets the number of Occurrences.

void	SetPeakValleyTolerance (double peakValleyTolerance)
	Sets the peak valley tolerance Created in NX8.0.0.

void	SetPlateThicknessExponent (double plateThicknessExponent)
	Sets the plate thickness exponent.

void	SetPlateThicknessRatio (double plateThicknessRatio)
	Sets the plate thickness ratio.

void	SetProbabilityOfFailure (double probabilityOfFailure)
	Sets the probability of failure.

void	SetProbabilityOption (NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOptionEnum probabilityOption)
	Sets the probability option.

void	SetScale (int rowIndex, double scale)
	Sets the scale.

void	SetTwiHighCycleCutoff (double twiHighCycleCutoff)
	Sets the twi high cycle cutoff.

void	SetTwiHighCycleSlopeChange (double twiHighCycleSlopeChange)
	Sets the twi high cycle slope change.

void	SetTwiLowCycleStressCutoff (double twiLowCycleStressCutoff)
	Sets the twi low cycle stress cutoff.

void	SetTwiLowCycleStressExtension (double twiLowCycleStressExtension)
	Sets the twi low cycle stress extension.

void	SetUseNotchFactor (bool useNotchFactor)
	Sets the use notch factor.

void	SetUsePlateThicknessCorrection (bool usePlateThicknessCorrection)
	Sets the plate thickness correction usage.

double	TwiHighCycleCutoff ()
	Returns the twi high cycle cutoff.

double	TwiHighCycleSlopeChange ()
	Returns the twi high cycle slope change.

double	TwiLowCycleStressCutoff ()
	Returns the twi low cycle stress cutoff.

double	TwiLowCycleStressExtension ()
	Returns the twi low cycle stress extension.

bool	UseNotchFactor ()
	Returns the use notch factor.

bool	UsePlateThicknessCorrection ()
	Returns the plate thickness correction usage.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for evaluating durability damage.

    This mechanism takes a stress/strain history and computes a damage histogram based
    on the history. This could either be on a spreadsheet or in a comma separated file.
 <br> To create a new instance of this class, use @link CAE::DurabilityManager::CreateDamageEvaluationBuilder  CAE::DurabilityManager::CreateDamageEvaluationBuilder @endlink  <br>

Default values.

Property

Value

BwiWeldClass (deprecated)

B

CyclicStressStrainModel (deprecated)

RambergOsgood

EnableDetailedOutput

0

EquivalentStressMethod (deprecated)

None

FatigueLifeCriterion (deprecated)

SmithWatsonTopper

HighlightDamageValues

0

HysterisisNumber (deprecated)

100

IncludeMeanStress (deprecated)

0

MaxMeanRange

0

MaxNominalRange

0

MinMeanRange

0

NotchFactor (deprecated)

0

NumberOfMaxBins

10

NumberOfMeanBins

10

NumberOfStandardDeviations (deprecated)

0.0

PeakValleyTolerance

0

PlateThicknessExponent (deprecated)

0.25

PlateThicknessRatio (deprecated)

1.0

UsePlateThicknessCorrection (deprecated)

false

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClassEnum

the BWi Weld Class Enum.

Enumerator:

BwiWeldClassEnumB	B.
BwiWeldClassEnumC	C.
BwiWeldClassEnumD	D.
BwiWeldClassEnumE	E.
BwiWeldClassEnumF	F.
BwiWeldClassEnumF2	F2.
BwiWeldClassEnumG	G.
BwiWeldClassEnumW	W.

enum NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModelEnum

the cyclic stress strain model.

Enumerator:

CyclicStressStrainModelEnumLinear	linear
CyclicStressStrainModelEnumPowerHardening	power hardening
CyclicStressStrainModelEnumRambergOsgood	ramberg osgood

enum NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethodEnum

the equivalent stress method.

Enumerator:

EquivalentStressMethodEnumNone	none
EquivalentStressMethodEnumGoodman	goodman
EquivalentStressMethodEnumSoderberg	soderberg
EquivalentStressMethodEnumGerberg	gerberg
EquivalentStressMethodEnumMorrow	morrow

enum NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterionEnum

the fatigue life criterion.

Enumerator:

FatigueLifeCriterionEnumSmithWatsonTopper	smith watson topper
FatigueLifeCriterionEnumStrainLifeMaximumPrincipal	strain life maximum principal
FatigueLifeCriterionEnumStrainLifeMaximumShear	strain life maximum shear
FatigueLifeCriterionEnumStressLife	stress life
FatigueLifeCriterionEnumBwi	bwi
FatigueLifeCriterionEnumTwi	twi

enum NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOptionEnum

the Probability Option.

Enumerator:

ProbabilityOptionEnumNumberOfStandardDeviations

Number of Std.

Dev.

ProbabilityOptionEnumProbabilityOfFailure

Prob.

Of Failure

Member Function Documentation

NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClassEnum NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClass ( )

Returns the bwi weld class.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClass and CAE::DurabilityEventFatigueSettingsBuilder::SetBwiWeldClass followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModelEnum NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModel ( )

Returns the cyclic stress strain model

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModel and CAE::DurabilityEventFatigueSettingsBuilder::SetCyclicStressStrainModel followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityDamageEvaluationBuilder::EnableDetailedOutput ( )

Returns the detailed output.

Created in NX8.5.1.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethodEnum NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethod ( )

Returns the equivalent stress method

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethod and CAE::DurabilityEventFatigueSettingsBuilder::SetEquivalentStressMethod followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::ExportResultsToCsv ( const NXString & csvFilename )

Export damage results to a csv file.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

csvFilename damage report will be written-out to this file.
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::ExportResultsToCsv ( const char * csvFilename )

Export damage results to a csv file.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

csvFilename damage report will be written-out to this file.
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterionEnum NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterion ( )

Returns the fatigue life criterion

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterion and CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueLifeCriterion followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::GetNthMeanBin ( int index )

Gets the nth mean bin.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

index index

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::GetNthNominalRangeBin ( int index )

Gets the nth nominal range bin.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

index index

bool NXOpen::CAE::DurabilityDamageEvaluationBuilder::HighlightDamageValues ( )

Returns the highlighting of non-zero damage values.

Created in NX8.5.1.

License requirements : nx_adv_durability ("NX Advanced Durability")

int NXOpen::CAE::DurabilityDamageEvaluationBuilder::HysterisisNumber ( )

Returns the hysterisis number

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NumberOfElementsInHysterisisLoop and CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfElementsInHysterisisLoop followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityDamageEvaluationBuilder::IncludeMeanStress ( )

Returns the include mean stress

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::IncludeMeanStressEffects and CAE::DurabilityEventFatigueSettingsBuilder::SetIncludeMeanStressEffects followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

NXOpen::PhysicalMaterial* NXOpen::CAE::DurabilityDamageEvaluationBuilder::MaterialTag ( )

Returns the material.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::MaxMeanRange ( )

Returns the max mean range
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::MaxNominalRange ( )

Returns the max nominal range
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::MinMeanRange ( )

Returns the min mean range
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::NotchFactor ( )

Returns the notch factor

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NotchFactor and CAE::DurabilityEventFatigueSettingsBuilder::SetNotchFactor followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

int NXOpen::CAE::DurabilityDamageEvaluationBuilder::NumberOfMaxBins ( )

Returns the number of max bins
Created in NX8.0.0.

License requirements : None

int NXOpen::CAE::DurabilityDamageEvaluationBuilder::NumberOfMeanBins ( )

Returns the number of mean bins
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::NumberOfStandardDeviations ( )

Returns the number of standard deviations.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NumberOfStandardDeviations and CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfStandardDeviations followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::PeakValleyTolerance ( )

Returns the peak valley tolerance
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::PlateThicknessExponent ( )

Returns the plate thickness exponent.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessExponent and CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessExponent followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::PlateThicknessRatio ( )

Returns the plate thickness ratio.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessRatio and CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessRatio followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOfFailure ( )

Returns the probability of failure.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOfFailure and CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOfFailure followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOptionEnum NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOption ( )

Returns the probability option.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOption and CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOption followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::RemoveFunction ( int rowIndex )

Removes the function.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

rowIndex row index

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetBwiWeldClass ( NXOpen::CAE::DurabilityDamageEvaluationBuilder::BwiWeldClassEnum bwiWeldClass )

Sets the bwi weld class.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClass and CAE::DurabilityEventFatigueSettingsBuilder::SetBwiWeldClass followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

bwiWeldClass bwiweldclass

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetCyclicStressStrainModel ( NXOpen::CAE::DurabilityDamageEvaluationBuilder::CyclicStressStrainModelEnum cyclicStressStrainModel )

Sets the cyclic stress strain model

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModel and CAE::DurabilityEventFatigueSettingsBuilder::SetCyclicStressStrainModel followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

cyclicStressStrainModel cyclicstressstrainmodel

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetEnableDetailedOutput ( bool enableDetailedOutput )

Sets the detailed output.

Created in NX8.5.1.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

enableDetailedOutput enabledetailedoutput

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetEquivalentStressMethod ( NXOpen::CAE::DurabilityDamageEvaluationBuilder::EquivalentStressMethodEnum equivalentStressMethod )

Sets the equivalent stress method

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethod and CAE::DurabilityEventFatigueSettingsBuilder::SetEquivalentStressMethod followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

equivalentStressMethod equivalentstressmethod

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetFatigue ( NXOpen::CAE::DurabilityFatigue * fatigue )

The fatigue settings.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigue fatigue

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetFatigueLifeCriterion ( NXOpen::CAE::DurabilityDamageEvaluationBuilder::FatigueLifeCriterionEnum fatigueLifeCriterion )

Sets the fatigue life criterion

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterion and CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueLifeCriterion followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueLifeCriterion fatiguelifecriterion

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetFunctionData	(	NXOpen::TaggedObject *	functionTag,
		int	numberOfOccurrences,
		double	lateralLoadingFactor,
		double	scaleFactor
	)

Sets the function data.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

functionTag	functiontag
numberOfOccurrences	numberofoccurrences
lateralLoadingFactor	lateralloadingfactor
scaleFactor	scalefactor

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetHighlightDamageValues ( bool highlightDamageValues )

Sets the highlighting of non-zero damage values.

Created in NX8.5.1.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

highlightDamageValues highlightdamagevalues

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetHysterisisNumber ( int hysterisisNumber )

Sets the hysterisis number

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NumberOfElementsInHysterisisLoop and CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfElementsInHysterisisLoop followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

hysterisisNumber hysterisisnumber

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetIncludeMeanStress ( bool includeMeanStress )

Sets the include mean stress

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::IncludeMeanStressEffects and CAE::DurabilityEventFatigueSettingsBuilder::SetIncludeMeanStressEffects followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

includeMeanStress includemeanstress

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetLlr	(	int	rowIndex,
		double	lateralLoadingFactor
	)

Sets the lateral loading ratio.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

rowIndex	row index
lateralLoadingFactor	lateralloadingfactor

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetMaterialTag ( NXOpen::PhysicalMaterial * materialTag )

Sets the material.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

materialTag materialtag

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetMaxMeanRange ( double maxMeanRange )

Sets the max mean range
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maxMeanRange maxmeanrange

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetMaxNominalRange ( double maxNominalRange )

Sets the max nominal range
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maxNominalRange maxnominalrange

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetMinMeanRange ( double minMeanRange )

Sets the min mean range
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

minMeanRange minmeanrange

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNotchFactor ( double notchFactor )

Sets the notch factor

Deprecated:: Deprecated in NX8.5.0.

Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NotchFactor and CAE::DurabilityEventFatigueSettingsBuilder::SetNotchFactor followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

notchFactor notchfactor

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNthMeanBin	(	int	index,
		double	nthMeanBin
	)

Sets the nth mean bin.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

index	index
nthMeanBin	nthmeanbin

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNthNominalRangeBin	(	int	index,
		double	nthNominalRangeBin
	)

Sets the nth nominal range bin.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

index	index
nthNominalRangeBin	nthnominalrangebin

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNumberOfMaxBins ( int numberOfMaxBins )

Sets the number of max bins
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfMaxBins numberofmaxbins

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNumberOfMeanBins ( int numberOfMeanBins )

Sets the number of mean bins
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfMeanBins numberofmeanbins

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetNumberOfStandardDeviations ( double numberOfStandardDeviations )

Sets the number of standard deviations.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::NumberOfStandardDeviations and CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfStandardDeviations followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfStandardDeviations numberofstandarddeviations

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetOccurrence	(	int	rowIndex,
		int	occurrence
	)

Sets the number of Occurrences.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

rowIndex	row index
occurrence	occurrence

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetPeakValleyTolerance ( double peakValleyTolerance )

Sets the peak valley tolerance
Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

peakValleyTolerance peakvalleytolerance

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetPlateThicknessExponent ( double plateThicknessExponent )

Sets the plate thickness exponent.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessExponent and CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessExponent followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

plateThicknessExponent platethicknessexponent

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetPlateThicknessRatio ( double plateThicknessRatio )

Sets the plate thickness ratio.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessRatio and CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessRatio followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

plateThicknessRatio platethicknessratio

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetProbabilityOfFailure ( double probabilityOfFailure )

Sets the probability of failure.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOfFailure and CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOfFailure followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

probabilityOfFailure probabilityoffailure

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetProbabilityOption ( NXOpen::CAE::DurabilityDamageEvaluationBuilder::ProbabilityOptionEnum probabilityOption )

Sets the probability option.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOption and CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOption followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

probabilityOption probabilityoption

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetScale	(	int	rowIndex,
		double	scale
	)

Sets the scale.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

rowIndex	row index
scale	scale

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetTwiHighCycleCutoff ( double twiHighCycleCutoff )

Sets the twi high cycle cutoff.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleCutoff and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleCutoff followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiHighCycleCutoff twihighcyclecutoff

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetTwiHighCycleSlopeChange ( double twiHighCycleSlopeChange )

Sets the twi high cycle slope change.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleSlopeChange and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleSlopeChange followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiHighCycleSlopeChange twihighcycleslopechange

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetTwiLowCycleStressCutoff ( double twiLowCycleStressCutoff )

Sets the twi low cycle stress cutoff.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressCutoff and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressCutoff followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiLowCycleStressCutoff twilowcyclestresscutoff

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetTwiLowCycleStressExtension ( double twiLowCycleStressExtension )

Sets the twi low cycle stress extension.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressExtension and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressExtension followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiLowCycleStressExtension twilowcyclestressextension

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetUseNotchFactor ( bool useNotchFactor )

Sets the use notch factor.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::UseNotchFactor and CAE::DurabilityEventFatigueSettingsBuilder::SetUseNotchFactor followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

useNotchFactor usenotchfactor

void NXOpen::CAE::DurabilityDamageEvaluationBuilder::SetUsePlateThicknessCorrection ( bool usePlateThicknessCorrection )

Sets the plate thickness correction usage.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::UsePlateThicknessCorrection and CAE::DurabilityEventFatigueSettingsBuilder::SetUsePlateThicknessCorrection followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

usePlateThicknessCorrection useplatethicknesscorrection

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::TwiHighCycleCutoff ( )

Returns the twi high cycle cutoff.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleCutoff and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleCutoff followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::TwiHighCycleSlopeChange ( )

Returns the twi high cycle slope change.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleSlopeChange and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleSlopeChange followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::TwiLowCycleStressCutoff ( )

Returns the twi low cycle stress cutoff.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressCutoff and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressCutoff followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityDamageEvaluationBuilder::TwiLowCycleStressExtension ( )

Returns the twi low cycle stress extension.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressExtension and CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressExtension followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityDamageEvaluationBuilder::UseNotchFactor ( )

Returns the use notch factor.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::UseNotchFactor and CAE::DurabilityEventFatigueSettingsBuilder::SetUseNotchFactor followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityDamageEvaluationBuilder::UsePlateThicknessCorrection ( )

Returns the plate thickness correction usage.

Deprecated:: Deprecated in NX8.5.0. Please use the alternative CAE::DurabilityEventFatigueSettingsBuilder::UsePlateThicknessCorrection and CAE::DurabilityEventFatigueSettingsBuilder::SetUsePlateThicknessCorrection followed by CAE::DurabilityDamageEvaluationBuilder::SetFatigue .

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_DurabilityDamageEvaluationBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
