Represents a property table. More...

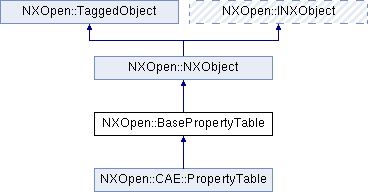

Inheritance diagram for NXOpen::BasePropertyTable:

Public Types
enum	BasePropertyType { BasePropertyTypeUnknown, BasePropertyTypeString, BasePropertyTypeBoolean, BasePropertyTypeInteger, BasePropertyTypeDouble, BasePropertyTypeFieldWrapper, BasePropertyTypeScalarFieldWrapper, BasePropertyTypeCoordinateSystem, BasePropertyTypeDoubleArray, BasePropertyTypeIntegerArray, BasePropertyTypePhysicalMaterial, BasePropertyTypeMatrix, BasePropertyTypeScalarTable }
	Property Types. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
void	ClearTablePropertyOverride (const NXString &propertyName)
	Clear property override flag.

void	ClearTablePropertyOverride (const char *propertyName)
	Clear property override flag.

void	CopyProperties (NXOpen::BasePropertyTable *sourceTable)
	Copies the values from the input table into this table, the table descriptor neutral names must match Created in NX9.0.0.

NXString	DescriptorNeutralName ()
	Returns the neutral name of the property table's descriptor Created in NX8.5.0.

NXString	DescriptorSpecificName ()
	Returns the language specific name of the property table's descriptor Created in NX8.5.0.

NXOpen::BasePropertyTable::BasePropertyType	GetBasePropertyType (const NXString &propertyName)
	Returns the type of the property.

NXOpen::BasePropertyTable::BasePropertyType	GetBasePropertyType (const char *propertyName)
	Returns the type of the property.

NXOpen::Fields::FieldExpression *	GetBaseScalarFieldPropertyValue (const NXString &propertyName)
	Returns the field expression Fields::FieldExpression value of the property.

NXOpen::Fields::FieldExpression *	GetBaseScalarFieldPropertyValue (const char *propertyName)
	Returns the field expression Fields::FieldExpression value of the property.

void	GetBaseScalarWithDataPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
	Returns the double value of the property with units.

void	GetBaseScalarWithDataPropertyValue (const char propertyName, double propertyValue, NXOpen::Unit **unitType)
	Returns the double value of the property with units.

bool	GetBooleanPropertyValue (const NXString &propertyName)
	Returns the boolean value of the property.

bool	GetBooleanPropertyValue (const char *propertyName)
	Returns the boolean value of the property.

NXOpen::CoordinateSystem *	GetCoordinateSystemPropertyValue (const NXString &propertyName)
	Returns the coordinate system CoordinateSystem.

NXOpen::CoordinateSystem *	GetCoordinateSystemPropertyValue (const char *propertyName)
	Returns the coordinate system CoordinateSystem.

double	GetDoublePropertyValue (const NXString &propertyName)
	Returns the double value of the property.

double	GetDoublePropertyValue (const char *propertyName)
	Returns the double value of the property.

NXOpen::Fields::FieldWrapper *	GetFieldWrapperPropertyValue (const NXString &propertyName)
	Returns the field wrapper Fields::FieldWrapper.

NXOpen::Fields::FieldWrapper *	GetFieldWrapperPropertyValue (const char *propertyName)
	Returns the field wrapper Fields::FieldWrapper.

std::vector< int >	GetIntegerArrayPropertyValue (const NXString &propertyName)
	Returns the integer array value of the property.

std::vector< int >	GetIntegerArrayPropertyValue (const char *propertyName)
	Returns the integer array value of the property.

int	GetIntegerPropertyValue (const NXString &propertyName)
	Returns the integer value of the property.

int	GetIntegerPropertyValue (const char *propertyName)
	Returns the integer value of the property.

void	GetMaterialPropertyValue (const NXString &propertyName, bool materialInherited, NXOpen::PhysicalMaterial *material)
	Gets the material value.

void	GetMaterialPropertyValue (const char propertyName, bool materialInherited, NXOpen::PhysicalMaterial **material)
	Gets the material value.

NXOpen::ScalarMatrixValue *	GetMatrixPropertyValue (const NXString &propertyName)
	Returns a matrix cell value from the matrix value of the property.

NXOpen::ScalarMatrixValue *	GetMatrixPropertyValue (const char *propertyName)
	Returns a matrix cell value from the matrix value of the property.

int	GetPropertyCount ()
	The count of properties in the table.

NXString	GetPropertyNameByIndex (int index)
	Returns the name of the property.

std::vector< double >	GetScalarArrayPropertyValue (const NXString &propertyName)
	Returns the scalar array value of the property.

std::vector< double >	GetScalarArrayPropertyValue (const char *propertyName)
	Returns the scalar array value of the property.

void	GetScalarArrayWithUnitsPropertyValue (const NXString &propertyName, std::vector< double > &propertyValue, NXOpen::Unit **unitType)
	Returns the scalar array and unit value of the property.

void	GetScalarArrayWithUnitsPropertyValue (const char propertyName, std::vector< double > &propertyValue, NXOpen::Unit *unitType)
	Returns the scalar array and unit value of the property.

NXOpen::Fields::ScalarFieldWrapper *	GetScalarFieldWrapperPropertyValue (const NXString &propertyName)
	Returns the scalar field wrapper Fields::ScalarFieldWrapper.

NXOpen::Fields::ScalarFieldWrapper *	GetScalarFieldWrapperPropertyValue (const char *propertyName)
	Returns the scalar field wrapper Fields::ScalarFieldWrapper.

NXOpen::Expression *	GetScalarPropertyValue (const NXString &propertyName)
	Returns the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

NXOpen::Expression *	GetScalarPropertyValue (const char *propertyName)
	Returns the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

NXOpen::ScalarTableValue *	GetScalarTablePropertyValue (const NXString &propertyName)
	Returns a scalar table value value from the scalar table value of the property.

NXOpen::ScalarTableValue *	GetScalarTablePropertyValue (const char *propertyName)
	Returns a scalar table value value from the scalar table value of the property.

NXString	GetStringPropertyValue (const NXString &propertyName)
	Returns the string value of the property.

NXString	GetStringPropertyValue (const char *propertyName)
	Returns the string value of the property.

void	SetBaseScalarFieldPropertyValue (const NXString &propertyName, NXOpen::Fields::FieldExpression *propertyValue)
	Sets the field expression Fields::FieldExpression value of the property.

void	SetBaseScalarFieldPropertyValue (const char propertyName, NXOpen::Fields::FieldExpression propertyValue)
	Sets the field expression Fields::FieldExpression value of the property.

void	SetBaseScalarWithDataPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
	Sets the the Scalar property as a constant double value with units.

void	SetBaseScalarWithDataPropertyValue (const char propertyName, double propertyValue, NXOpen::Unit unitType)
	Sets the the Scalar property as a constant double value with units.

void	SetBaseScalarWithDataPropertyValue (const NXString &propertyName, const NXString &propertyValue, NXOpen::Unit *unitType)
	Sets the the Scalar property as a string value with units.

void	SetBaseScalarWithDataPropertyValue (const char propertyName, const char propertyValue, NXOpen::Unit *unitType)
	Sets the the Scalar property as a string value with units.

void	SetBooleanPropertyValue (const NXString &propertyName, bool propertyValue)
	Sets the boolean value of the property.

void	SetBooleanPropertyValue (const char *propertyName, bool propertyValue)
	Sets the boolean value of the property.

void	SetCoordinateSystemPropertyValue (const NXString &propertyName, NXOpen::CoordinateSystem *propertyValue)
	Sets the coordinate system CoordinateSystem.

void	SetCoordinateSystemPropertyValue (const char propertyName, NXOpen::CoordinateSystem propertyValue)
	Sets the coordinate system CoordinateSystem.

void	SetDoublePropertyValue (const NXString &propertyName, double propertyValue)
	Sets the double value of the property.

void	SetDoublePropertyValue (const char *propertyName, double propertyValue)
	Sets the double value of the property.

void	SetFieldWrapperPropertyValue (const NXString &propertyName, NXOpen::Fields::FieldWrapper *propertyValue)
	Sets the field wrapper Fields::FieldWrapper.

void	SetFieldWrapperPropertyValue (const char propertyName, NXOpen::Fields::FieldWrapper propertyValue)
	Sets the field wrapper Fields::FieldWrapper.

void	SetIntegerArrayPropertyValue (const NXString &propertyName, const std::vector< int > &propertyValue)
	Sets the integer array value of the property.

void	SetIntegerArrayPropertyValue (const char *propertyName, const std::vector< int > &propertyValue)
	Sets the integer array value of the property.

void	SetIntegerPropertyValue (const NXString &propertyName, int propertyValue)
	Sets the integer value of the property.

void	SetIntegerPropertyValue (const char *propertyName, int propertyValue)
	Sets the integer value of the property.

void	SetMaterialPropertyValue (const NXString &propertyName, bool materialInherited, NXOpen::PhysicalMaterial *material)
	Sets the material value.

void	SetMaterialPropertyValue (const char propertyName, bool materialInherited, NXOpen::PhysicalMaterial material)
	Sets the material value.

void	SetMatrixPropertyValue (const NXString &propertyName, NXOpen::ScalarMatrixValue *matrix)
	Set a matrix cell value from the matrix value of the property.

void	SetMatrixPropertyValue (const char propertyName, NXOpen::ScalarMatrixValue matrix)
	Set a matrix cell value from the matrix value of the property.

void	SetScalarArrayPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue)
	Sets the scalar array value of the property.

void	SetScalarArrayPropertyValue (const char *propertyName, const std::vector< double > &propertyValue)
	Sets the scalar array value of the property.

void	SetScalarArrayWithUnitsPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue, NXOpen::Unit *unitType)
	Sets the scalar array and unit value of the property.

void	SetScalarArrayWithUnitsPropertyValue (const char propertyName, const std::vector< double > &propertyValue, NXOpen::Unit unitType)
	Sets the scalar array and unit value of the property.

void	SetScalarFieldWrapperPropertyValue (const NXString &propertyName, NXOpen::Fields::ScalarFieldWrapper *propertyValue)
	Sets the scalar field wrapper Fields::ScalarFieldWrapper.

void	SetScalarFieldWrapperPropertyValue (const char propertyName, NXOpen::Fields::ScalarFieldWrapper propertyValue)
	Sets the scalar field wrapper Fields::ScalarFieldWrapper.

void	SetScalarPropertyValue (const NXString &propertyName, NXOpen::Expression *propertyValue)
	Sets the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

void	SetScalarPropertyValue (const char propertyName, NXOpen::Expression propertyValue)
	Sets the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

void	SetScalarTablePropertyValue (const NXString &propertyName, NXOpen::ScalarTableValue *table)
	Set a scalar table value from the scalar table value of the property.

void	SetScalarTablePropertyValue (const char propertyName, NXOpen::ScalarTableValue table)
	Set a scalar table value from the scalar table value of the property.

void	SetStringPropertyValue (const NXString &propertyName, const NXString &propertyValue)
	Sets the string value of the property.

void	SetStringPropertyValue (const char propertyName, const char propertyValue)
	Sets the string value of the property.

void	SetTablePropertyOverride (const NXString &propertyName)
	Set property override flag.

void	SetTablePropertyOverride (const char *propertyName)
	Set property override flag.

void	SetTablePropertyWithoutValue (const NXString &propertyName)
	Unset a property.

void	SetTablePropertyWithoutValue (const char *propertyName)
	Unset a property.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a property table.

This is a sub object

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::BasePropertyTable::BasePropertyType

Property Types.

Enumerator:

BasePropertyTypeUnknown	unknown
BasePropertyTypeString	string
BasePropertyTypeBoolean	boolean
BasePropertyTypeInteger	integer
BasePropertyTypeDouble	double
BasePropertyTypeFieldWrapper	field wrapper
BasePropertyTypeScalarFieldWrapper	scalar field wrapper
BasePropertyTypeCoordinateSystem	coordinate system
BasePropertyTypeDoubleArray	double array
BasePropertyTypeIntegerArray	integer array
BasePropertyTypePhysicalMaterial	physical material
BasePropertyTypeMatrix	matrix
BasePropertyTypeScalarTable	scalar table

Member Function Documentation

void NXOpen::BasePropertyTable::ClearTablePropertyOverride ( const NXString & propertyName )

Clear property override flag.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::ClearTablePropertyOverride ( const char * propertyName )

Clear property override flag.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::CopyProperties ( NXOpen::BasePropertyTable * sourceTable )

Copies the values from the input table into this table, the table descriptor neutral names must match
Created in NX9.0.0.

License requirements : None

Parameters

sourceTable source table

NXString NXOpen::BasePropertyTable::DescriptorNeutralName ( )

Returns the neutral name of the property table's descriptor
Created in NX8.5.0.

License requirements : None

NXString NXOpen::BasePropertyTable::DescriptorSpecificName ( )

Returns the language specific name of the property table's descriptor
Created in NX8.5.0.

License requirements : None

NXOpen::BasePropertyTable::BasePropertyType NXOpen::BasePropertyTable::GetBasePropertyType ( const NXString & propertyName )

Returns the type of the property.

Returns: type of the property
Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::BasePropertyTable::BasePropertyType NXOpen::BasePropertyTable::GetBasePropertyType ( const char * propertyName )

Returns the type of the property.

Returns: type of the property
Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::FieldExpression* NXOpen::BasePropertyTable::GetBaseScalarFieldPropertyValue ( const NXString & propertyName )

Returns the field expression Fields::FieldExpression value of the property.

    @return  value of the property

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::FieldExpression* NXOpen::BasePropertyTable::GetBaseScalarFieldPropertyValue ( const char * propertyName )

Returns the field expression Fields::FieldExpression value of the property.

    @return  value of the property

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::GetBaseScalarWithDataPropertyValue	(	const NXString &	propertyName,
		double *	propertyValue,
		NXOpen::Unit **	unitType
	)

Returns the double value of the property with units.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the Scalar NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The current double value of the Scalar
unitType	Unit type for the Scalar NULL if the Scalar has no units

void NXOpen::BasePropertyTable::GetBaseScalarWithDataPropertyValue	(	const char *	propertyName,
		double *	propertyValue,
		NXOpen::Unit **	unitType
	)

Returns the double value of the property with units.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the Scalar NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The current double value of the Scalar
unitType	Unit type for the Scalar NULL if the Scalar has no units

bool NXOpen::BasePropertyTable::GetBooleanPropertyValue ( const NXString & propertyName )

Returns the boolean value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

bool NXOpen::BasePropertyTable::GetBooleanPropertyValue ( const char * propertyName )

Returns the boolean value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CoordinateSystem* NXOpen::BasePropertyTable::GetCoordinateSystemPropertyValue ( const NXString & propertyName )

Returns the coordinate system CoordinateSystem.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CoordinateSystem* NXOpen::BasePropertyTable::GetCoordinateSystemPropertyValue ( const char * propertyName )

Returns the coordinate system CoordinateSystem.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

double NXOpen::BasePropertyTable::GetDoublePropertyValue ( const NXString & propertyName )

Returns the double value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

double NXOpen::BasePropertyTable::GetDoublePropertyValue ( const char * propertyName )

Returns the double value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::FieldWrapper* NXOpen::BasePropertyTable::GetFieldWrapperPropertyValue ( const NXString & propertyName )

Returns the field wrapper Fields::FieldWrapper.

    @return  value of the property

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::FieldWrapper* NXOpen::BasePropertyTable::GetFieldWrapperPropertyValue ( const char * propertyName )

Returns the field wrapper Fields::FieldWrapper.

    @return  value of the property

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

std::vector<int> NXOpen::BasePropertyTable::GetIntegerArrayPropertyValue ( const NXString & propertyName )

Returns the integer array value of the property.

    @return

Created in NX5.0.0.

License requirements : None

Parameters

propertyName NOTE: The full Unicode character set is not supported for this parameter.

std::vector<int> NXOpen::BasePropertyTable::GetIntegerArrayPropertyValue ( const char * propertyName )

Returns the integer array value of the property.

    @return

Created in NX5.0.0.

License requirements : None

Parameters

propertyName NOTE: The full Unicode character set is not supported for this parameter.

int NXOpen::BasePropertyTable::GetIntegerPropertyValue ( const NXString & propertyName )

Returns the integer value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

int NXOpen::BasePropertyTable::GetIntegerPropertyValue ( const char * propertyName )

Returns the integer value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::GetMaterialPropertyValue	(	const NXString &	propertyName,
		bool *	materialInherited,
		NXOpen::PhysicalMaterial **	material
	)

Gets the material value.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
materialInherited	true indicate the material is inherited from referenced object assignments such as geometry
material	the material value to assign

void NXOpen::BasePropertyTable::GetMaterialPropertyValue	(	const char *	propertyName,
		bool *	materialInherited,
		NXOpen::PhysicalMaterial **	material
	)

Gets the material value.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
materialInherited	true indicate the material is inherited from referenced object assignments such as geometry
material	the material value to assign

NXOpen::ScalarMatrixValue* NXOpen::BasePropertyTable::GetMatrixPropertyValue ( const NXString & propertyName )

Returns a matrix cell value from the matrix value of the property.

    @return  NxM Scalar matrix

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::ScalarMatrixValue* NXOpen::BasePropertyTable::GetMatrixPropertyValue ( const char * propertyName )

Returns a matrix cell value from the matrix value of the property.

    @return  NxM Scalar matrix

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

int NXOpen::BasePropertyTable::GetPropertyCount ( )

The count of properties in the table.

Returns: count of properties
Created in NX4.0.0.

License requirements : None

NXString NXOpen::BasePropertyTable::GetPropertyNameByIndex ( int index )

Returns the name of the property.

Returns: name of the property
Created in NX4.0.0.

License requirements : None

Parameters

index index of the property

std::vector<double> NXOpen::BasePropertyTable::GetScalarArrayPropertyValue ( const NXString & propertyName )

Returns the scalar array value of the property.

   Use @link BasePropertyTable::GetScalarArrayWithUnitsPropertyValue BasePropertyTable::GetScalarArrayWithUnitsPropertyValue@endlink
   when other than base units are set.
    @return  value of the property

Created in NX5.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

std::vector<double> NXOpen::BasePropertyTable::GetScalarArrayPropertyValue ( const char * propertyName )

Returns the scalar array value of the property.

   Use @link BasePropertyTable::GetScalarArrayWithUnitsPropertyValue BasePropertyTable::GetScalarArrayWithUnitsPropertyValue@endlink
   when other than base units are set.
    @return  value of the property

Created in NX5.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::GetScalarArrayWithUnitsPropertyValue	(	const NXString &	propertyName,
		std::vector< double > &	propertyValue,
		NXOpen::Unit **	unitType
	)

Returns the scalar array and unit value of the property.

Created in NX7.5.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	array of values of the property
unitType	Unit type for the Array NULL if the Array has no units

void NXOpen::BasePropertyTable::GetScalarArrayWithUnitsPropertyValue	(	const char *	propertyName,
		std::vector< double > &	propertyValue,
		NXOpen::Unit **	unitType
	)

Returns the scalar array and unit value of the property.

Created in NX7.5.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	array of values of the property
unitType	Unit type for the Array NULL if the Array has no units

NXOpen::Fields::ScalarFieldWrapper* NXOpen::BasePropertyTable::GetScalarFieldWrapperPropertyValue ( const NXString & propertyName )

Returns the scalar field wrapper Fields::ScalarFieldWrapper.

    @return  value of the property

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::ScalarFieldWrapper* NXOpen::BasePropertyTable::GetScalarFieldWrapperPropertyValue ( const char * propertyName )

Returns the scalar field wrapper Fields::ScalarFieldWrapper.

    @return  value of the property

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Expression* NXOpen::BasePropertyTable::GetScalarPropertyValue ( const NXString & propertyName )

Returns the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Expression* NXOpen::BasePropertyTable::GetScalarPropertyValue ( const char * propertyName )

Returns the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::ScalarTableValue* NXOpen::BasePropertyTable::GetScalarTablePropertyValue ( const NXString & propertyName )

Returns a scalar table value value from the scalar table value of the property.

    @return  NxM Scalar table

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::ScalarTableValue* NXOpen::BasePropertyTable::GetScalarTablePropertyValue ( const char * propertyName )

Returns a scalar table value value from the scalar table value of the property.

    @return  NxM Scalar table

Created in NX6.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXString NXOpen::BasePropertyTable::GetStringPropertyValue ( const NXString & propertyName )

Returns the string value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

NXString NXOpen::BasePropertyTable::GetStringPropertyValue ( const char * propertyName )

Returns the string value of the property.

    @return  value of the property

Created in NX4.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetBaseScalarFieldPropertyValue	(	const NXString &	propertyName,
		NXOpen::Fields::FieldExpression *	propertyValue
	)

Sets the field expression Fields::FieldExpression value of the property.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetBaseScalarFieldPropertyValue	(	const char *	propertyName,
		NXOpen::Fields::FieldExpression *	propertyValue
	)

Sets the field expression Fields::FieldExpression value of the property.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetBaseScalarWithDataPropertyValue	(	const NXString &	propertyName,
		double	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the the Scalar property as a constant double value with units.

   Use @link BasePropertyTable::SetScalarPropertyValue BasePropertyTable::SetScalarPropertyValue@endlink  to enable
   Design Logic for this property.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The double value for the Scalar
unitType	Unit type for the Scalar NULL if the Scalar has no units

void NXOpen::BasePropertyTable::SetBaseScalarWithDataPropertyValue	(	const char *	propertyName,
		double	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the the Scalar property as a constant double value with units.

   Use @link BasePropertyTable::SetScalarPropertyValue BasePropertyTable::SetScalarPropertyValue@endlink  to enable
   Design Logic for this property.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The double value for the Scalar
unitType	Unit type for the Scalar NULL if the Scalar has no units

void NXOpen::BasePropertyTable::SetBaseScalarWithDataPropertyValue	(	const NXString &	propertyName,
		const NXString &	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the the Scalar property as a string value with units.

   When the string does not represent a constant number, then an expression is created.
   Once a property has an expression, subsequent set commands will retain the expression
   and edit the new string into it.
   The string must not be empty. To set this property to empty, use @link BasePropertyTable::SetTablePropertyWithoutValue BasePropertyTable::SetTablePropertyWithoutValue@endlink .

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The string value for the Scalar NOTE: The full Unicode character set is not supported for this parameter.
unitType	Unit type for the Scalar NULL if the Scalar has no units

void NXOpen::BasePropertyTable::SetBaseScalarWithDataPropertyValue	(	const char *	propertyName,
		const char *	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the the Scalar property as a string value with units.

   When the string does not represent a constant number, then an expression is created.
   Once a property has an expression, subsequent set commands will retain the expression
   and edit the new string into it.
   The string must not be empty. To set this property to empty, use @link BasePropertyTable::SetTablePropertyWithoutValue BasePropertyTable::SetTablePropertyWithoutValue@endlink .

Created in NX9.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	The string value for the Scalar NOTE: The full Unicode character set is not supported for this parameter.
unitType	Unit type for the Scalar NULL if the Scalar has no units

void NXOpen::BasePropertyTable::SetBooleanPropertyValue	(	const NXString &	propertyName,
		bool	propertyValue
	)

Sets the boolean value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetBooleanPropertyValue	(	const char *	propertyName,
		bool	propertyValue
	)

Sets the boolean value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetCoordinateSystemPropertyValue	(	const NXString &	propertyName,
		NXOpen::CoordinateSystem *	propertyValue
	)

Sets the coordinate system CoordinateSystem.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetCoordinateSystemPropertyValue	(	const char *	propertyName,
		NXOpen::CoordinateSystem *	propertyValue
	)

Sets the coordinate system CoordinateSystem.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetDoublePropertyValue	(	const NXString &	propertyName,
		double	propertyValue
	)

Sets the double value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetDoublePropertyValue	(	const char *	propertyName,
		double	propertyValue
	)

Sets the double value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetFieldWrapperPropertyValue	(	const NXString &	propertyName,
		NXOpen::Fields::FieldWrapper *	propertyValue
	)

Sets the field wrapper Fields::FieldWrapper.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetFieldWrapperPropertyValue	(	const char *	propertyName,
		NXOpen::Fields::FieldWrapper *	propertyValue
	)

Sets the field wrapper Fields::FieldWrapper.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetIntegerArrayPropertyValue	(	const NXString &	propertyName,
		const std::vector< int > &	propertyValue
	)

Sets the integer array value of the property.

Created in NX5.0.0.

License requirements : None

Parameters

propertyName	NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	property value

void NXOpen::BasePropertyTable::SetIntegerArrayPropertyValue	(	const char *	propertyName,
		const std::vector< int > &	propertyValue
	)

Sets the integer array value of the property.

Created in NX5.0.0.

License requirements : None

Parameters

propertyName	NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	property value

void NXOpen::BasePropertyTable::SetIntegerPropertyValue	(	const NXString &	propertyName,
		int	propertyValue
	)

Sets the integer value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetIntegerPropertyValue	(	const char *	propertyName,
		int	propertyValue
	)

Sets the integer value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetMaterialPropertyValue	(	const NXString &	propertyName,
		bool	materialInherited,
		NXOpen::PhysicalMaterial *	material
	)

Sets the material value.

Created in NX6.0.3.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
materialInherited	true indicate the material is inherited from referenced object assignments such as geometry
material	the material value to assign

void NXOpen::BasePropertyTable::SetMaterialPropertyValue	(	const char *	propertyName,
		bool	materialInherited,
		NXOpen::PhysicalMaterial *	material
	)

Sets the material value.

Created in NX6.0.3.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
materialInherited	true indicate the material is inherited from referenced object assignments such as geometry
material	the material value to assign

void NXOpen::BasePropertyTable::SetMatrixPropertyValue	(	const NXString &	propertyName,
		NXOpen::ScalarMatrixValue *	matrix
	)

Set a matrix cell value from the matrix value of the property.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
matrix	NxM Scalar matrix

void NXOpen::BasePropertyTable::SetMatrixPropertyValue	(	const char *	propertyName,
		NXOpen::ScalarMatrixValue *	matrix
	)

Set a matrix cell value from the matrix value of the property.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
matrix	NxM Scalar matrix

void NXOpen::BasePropertyTable::SetScalarArrayPropertyValue	(	const NXString &	propertyName,
		const std::vector< double > &	propertyValue
	)

Sets the scalar array value of the property.

   Use @link BasePropertyTable::SetScalarArrayWithUnitsPropertyValue BasePropertyTable::SetScalarArrayWithUnitsPropertyValue@endlink
   when other than base units are set.

Created in NX5.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarArrayPropertyValue	(	const char *	propertyName,
		const std::vector< double > &	propertyValue
	)

Sets the scalar array value of the property.

   Use @link BasePropertyTable::SetScalarArrayWithUnitsPropertyValue BasePropertyTable::SetScalarArrayWithUnitsPropertyValue@endlink
   when other than base units are set.

Created in NX5.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarArrayWithUnitsPropertyValue	(	const NXString &	propertyName,
		const std::vector< double > &	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the scalar array and unit value of the property.

Created in NX7.5.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property
unitType	Unit type for the Array

void NXOpen::BasePropertyTable::SetScalarArrayWithUnitsPropertyValue	(	const char *	propertyName,
		const std::vector< double > &	propertyValue,
		NXOpen::Unit *	unitType
	)

Sets the scalar array and unit value of the property.

Created in NX7.5.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property
unitType	Unit type for the Array

void NXOpen::BasePropertyTable::SetScalarFieldWrapperPropertyValue	(	const NXString &	propertyName,
		NXOpen::Fields::ScalarFieldWrapper *	propertyValue
	)

Sets the scalar field wrapper Fields::ScalarFieldWrapper.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarFieldWrapperPropertyValue	(	const char *	propertyName,
		NXOpen::Fields::ScalarFieldWrapper *	propertyValue
	)

Sets the scalar field wrapper Fields::ScalarFieldWrapper.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarPropertyValue	(	const NXString &	propertyName,
		NXOpen::Expression *	propertyValue
	)

Sets the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarPropertyValue	(	const char *	propertyName,
		NXOpen::Expression *	propertyValue
	)

Sets the expression Expression value of the property Use BasePropertyTable::SetBaseScalarWithDataPropertyValue for a constant value when an expression Expression is not needed.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property

void NXOpen::BasePropertyTable::SetScalarTablePropertyValue	(	const NXString &	propertyName,
		NXOpen::ScalarTableValue *	table
	)

Set a scalar table value from the scalar table value of the property.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
table	NxM Scalar table

void NXOpen::BasePropertyTable::SetScalarTablePropertyValue	(	const char *	propertyName,
		NXOpen::ScalarTableValue *	table
	)

Set a scalar table value from the scalar table value of the property.

Created in NX6.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
table	NxM Scalar table

void NXOpen::BasePropertyTable::SetStringPropertyValue	(	const NXString &	propertyName,
		const NXString &	propertyValue
	)

Sets the string value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetStringPropertyValue	(	const char *	propertyName,
		const char *	propertyValue
	)

Sets the string value of the property.

Created in NX4.0.0.

License requirements : None

Parameters

propertyName	name of the property NOTE: The full Unicode character set is not supported for this parameter.
propertyValue	value of the property NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetTablePropertyOverride ( const NXString & propertyName )

Set property override flag.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetTablePropertyOverride ( const char * propertyName )

Set property override flag.

Created in NX9.0.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetTablePropertyWithoutValue ( const NXString & propertyName )

Unset a property.

Cause a property to be output to the solver as a blank so that the solver uses its default value

Created in NX7.5.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::BasePropertyTable::SetTablePropertyWithoutValue ( const char * propertyName )

Unset a property.

Cause a property to be output to the solver as a blank so that the solver uses its default value

Created in NX7.5.0.

License requirements : None

Parameters

propertyName name of the property
NOTE: The full Unicode character set is not supported for this parameter.

The documentation for this class was generated from the following file:

BasePropertyTable.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
