Builder for creating Symmetrical Centerline. More...

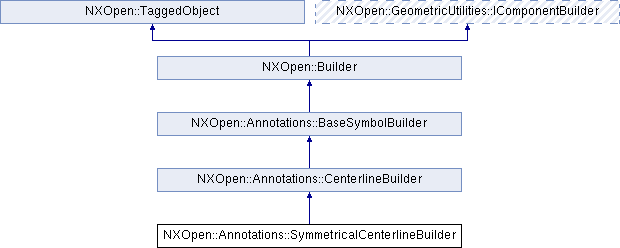

Inheritance diagram for NXOpen::Annotations::SymmetricalCenterlineBuilder:

Public Types
enum	Types { TypesFromFace, TypesStartAndEnd }
	the valid types of Symmetrical Centerline More...

Public Member Functions
NXOpen::SelectNXObject *	End ()
	Returns the end object of Symmetrical Centerline Created in NX6.0.0.

NXOpen::SelectNXObject *	Face ()
	Returns the face object of Symmetrical Centerline Created in NX6.0.0.

NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit object Created in NX6.0.0.

NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder *	Settings ()
	Returns the settings builder object for Symmetrical Centerline Created in NX6.0.0.

void	SetType (NXOpen::Annotations::SymmetricalCenterlineBuilder::Types type)
	Sets the type of Symmetrical Centerline Created in NX6.0.0.

NXOpen::SelectNXObject *	Start ()
	Returns the start object of Symmetrical Centerline Created in NX6.0.0.

NXOpen::Annotations::SymmetricalCenterlineBuilder::Types	Type ()
	Returns the type of Symmetrical Centerline Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.

void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.

std::vector< double >	GetAllExtensions ()
	Returns all extensions.

std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.

std::vector< double >	GetEndExtensions ()
	Returns end extensions only.

void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.

void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.

void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.

void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.

void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.

void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Builder for creating Symmetrical Centerline.

It creates or edits Symmetrical Centerline
To create a new instance of this class, use Annotations::CenterlineCollection::CreateSymmetricalCenterlineBuilder
Default values.

Property

Value

Settings.Extension

6.35 (millimeters part), 0.25 (inches part)

Settings.Gap

1.5875 (millimeters part), 0.0625 (inches part)

Settings.IndividualDistance

0

Settings.Size

3.175 (millimeters part), 0.125 (inches part)

Settings.Width

Thin

Type

FromFace

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::SymmetricalCenterlineBuilder::Types

the valid types of Symmetrical Centerline

Enumerator:

TypesFromFace	Centerline from face.
TypesStartAndEnd	Centerline from start and end point.

Member Function Documentation

NXOpen::SelectNXObject* NXOpen::Annotations::SymmetricalCenterlineBuilder::End ( )

Returns the end object of Symmetrical Centerline
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::SymmetricalCenterlineBuilder::Face ( )

Returns the face object of Symmetrical Centerline
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::SymmetricalCenterlineBuilder::Inherit ( )

Returns the inherit object
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder* NXOpen::Annotations::SymmetricalCenterlineBuilder::Settings ( )

Returns the settings builder object for Symmetrical Centerline
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::SymmetricalCenterlineBuilder::SetType ( NXOpen::Annotations::SymmetricalCenterlineBuilder::Types type )

Sets the type of Symmetrical Centerline
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

type type

NXOpen::SelectNXObject* NXOpen::Annotations::SymmetricalCenterlineBuilder::Start ( )

Returns the start object of Symmetrical Centerline
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::SymmetricalCenterlineBuilder::Types NXOpen::Annotations::SymmetricalCenterlineBuilder::Type ( )

Returns the type of Symmetrical Centerline
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_SymmetricalCenterlineBuilder.hxx
