Represents a Builder for Symmetrical Centerline Settings
Created in NX6.0.0. More...

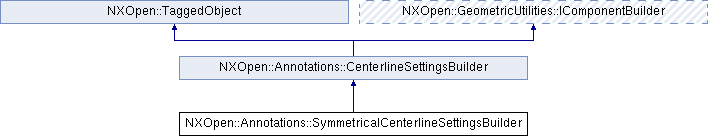

Inheritance diagram for NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder:

Public Member Functions
double	Extension ()
	Returns the extension parameter for centerline Created in NX6.0.0.

bool	IndividualDistance ()
	Returns the individual extension distance On/Off parameter Created in NX6.0.0.

void	SetExtension (double extension)
	Sets the extension parameter for centerline Created in NX6.0.0.

void	SetIndividualDistance (bool individualDistance)
	Sets the individual extension distance On/Off parameter Created in NX6.0.0.

void	SetSize (double size)
	Sets the offset size parameter Created in NX6.0.0.

double	Size ()
	Returns the offset size parameter Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineSettingsBuilder
NXOpen::NXColor *	Color ()
	Returns the color of centerline Created in NX6.0.0.

double	Gap ()
	Returns the gap parameter for centeline Created in NX6.0.0.

void	SetColor (NXOpen::NXColor *color)
	Sets the color of centerline Created in NX6.0.0.

void	SetGap (double gap)
	Sets the gap parameter for centeline Created in NX6.0.0.

void	SetWidth (NXOpen::Annotations::CenterlineSettingsBuilder::CenterlineThickness width)
	Sets the width of centerline Created in NX6.0.0.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

NXOpen::Annotations::CenterlineSettingsBuilder::CenterlineThickness	Width ()
	Returns the width of centerline Created in NX6.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Annotations::CenterlineSettingsBuilder
enum	CenterlineThickness { CenterlineThicknessThin, CenterlineThicknessNormal, CenterlineThicknessThick, CenterlineThicknessOne = 6, CenterlineThicknessTwo, CenterlineThicknessThree, CenterlineThicknessFour, CenterlineThicknessFive, CenterlineThicknessSix, CenterlineThicknessSeven, CenterlineThicknessEight, CenterlineThicknessNine }
	the types of centerline thickness More...

Detailed Description

Represents a Builder for Symmetrical Centerline Settings
Created in NX6.0.0.

Member Function Documentation

double NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::Extension ( )

Returns the extension parameter for centerline
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::IndividualDistance ( )

Returns the individual extension distance On/Off parameter
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::SetExtension ( double extension )

Sets the extension parameter for centerline
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

extension extension

void NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::SetIndividualDistance ( bool individualDistance )

Sets the individual extension distance On/Off parameter
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

individualDistance individualdistance

void NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::SetSize ( double size )

Sets the offset size parameter
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

size size

double NXOpen::Annotations::SymmetricalCenterlineSettingsBuilder::Size ( )

Returns the offset size parameter
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_SymmetricalCenterlineSettingsBuilder.hxx
