Represents a User Defined Attribute
To create or edit an instance of this class, use Annotations::PmiUserDefinedBuilder
Created in NX6.0.0.
More...

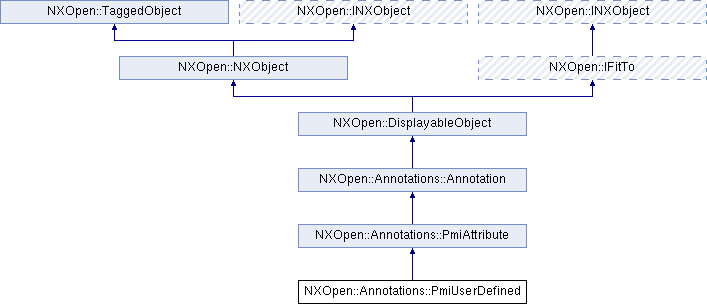

Inheritance diagram for NXOpen::Annotations::PmiUserDefined:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::Annotation | |
| NXOpen::Point3d | AnnotationOrigin () |
| Returns the origin (location) of the annotation. | |
| NXOpen::Xform * | AnnotationPlane () |
| Returns the annotation plane. | |
| NXOpen::Annotations::Annotation::AssociativeOriginData | GetAssociativeOrigin (NXOpen::Point3d *origin) |
| Gets data that specifies the origin's associativity. | |
| NXOpen::Annotations::Associativity * | GetAssociativity (int associativityIndex) |
| Returns the associativity at specified index. | |
| NXOpen::Xform * | GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane) |
| Returns the inferred annotation plane. | |
| NXOpen::Annotations::LetteringPreferences * | GetLetteringPreferences () |
| Returns the lettering preferences for the annotation. | |
| NXOpen::Annotations::LineAndArrowPreferences * | GetLineAndArrowPreferences () |
| Returns the line and arrow preferences for the annotation. | |
| NXOpen::Annotations::SymbolPreferences * | GetSymbolPreferences () |
| Returns the symbol preferences for the annotation. | |
| std::vector< NXOpen::View * > | GetViews () |
| Returns the views that the PMI display instance object is displayed in NOTE: This method is only valid for PMI display instance objects. | |
| bool | HasAssociativeOrigin () |
| Returns a flag indicating whether the origin is associative Created in NX3.0.0. | |
| void | InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position) |
| Inserts the annotation into a stack. | |
| bool | IsRetained () |
| Returns a flag indicating whether the annotation is retained Created in NX3.0.0. | |
| NXOpen::Annotations::LeaderOrientation | LeaderOrientation () |
| Returns the leader orientation for the annotation. | |
| int | NumberOfAssociativities () |
| Returns the number of associativities for the annotation. | |
| void | SetAnnotationOrigin (const NXOpen::Point3d &origin) |
| Sets the origin (location) of the annotation. | |
| void | SetAnnotationPlane (NXOpen::Xform *annotationPlane) |
| Sets the annotation plane. | |
| void | SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin) |
| Associates the annotation's origin to the specified geometry. | |
| void | SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity) |
| Sets the associativity at specified index. | |
| void | SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation) |
| Sets the leader orientation for the annotation. | |
| void | SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs) |
| Sets the lettering preferences for the annotation. | |
| void | SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs) |
| Sets the line and arrow preferences for the annotation. | |
| void | SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs) |
| Sets the symbol preferences for the annotation. | |
| void | SetViews (const std::vector< NXOpen::View * > &modelViews) |
| Sets the views that the PMI display instance object is displayed in. | |
Detailed Description
Represents a User Defined Attribute
To create or edit an instance of this class, use Annotations::PmiUserDefinedBuilder
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Annotations_PmiUserDefined.hxx
