NXOpen::Annotations::MajorAngularDimension Class Reference

Represents a major angular dimension
To create or edit an instance of this class, use Annotations::MajorAngularDimensionBuilder

Created in NX4.0.0. More...

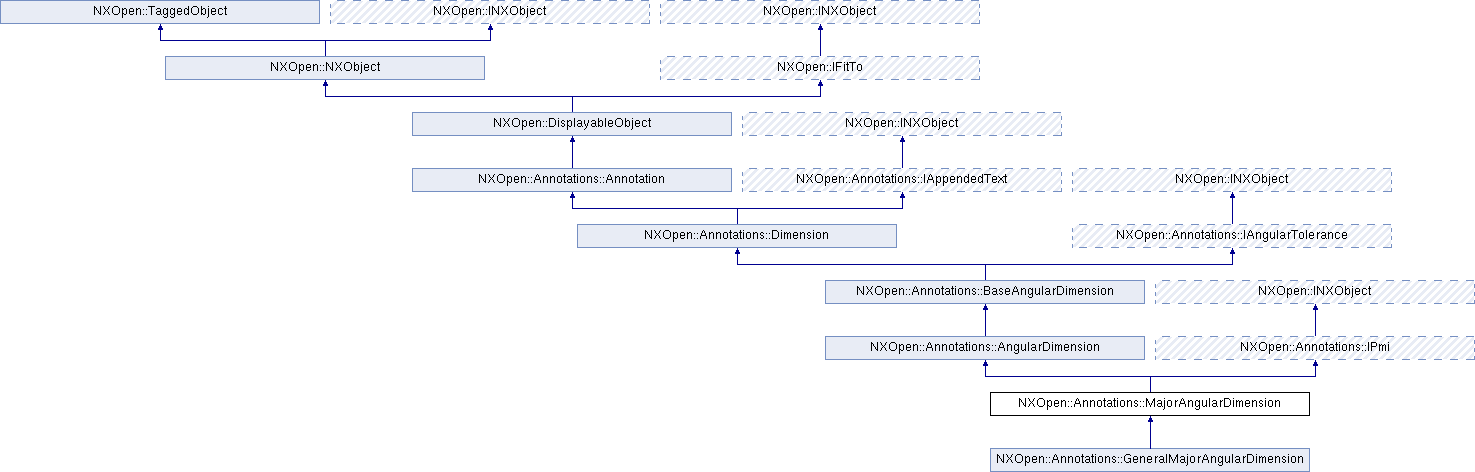

Inheritance diagram for NXOpen::Annotations::MajorAngularDimension:

Public Member Functions
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()
	Returns the associated object.
virtual std::vector < NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()
	Returns the business modifiers.
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()
	Returns the shared associated objects.
virtual int	Index ()
	Returns the index.
virtual bool	IsMirrored ()
	Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0.
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)
	Sets the associated object.
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
	Sets the business modifiers.
virtual void	SetIndex (int index)
	Sets the index.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a major angular dimension
To create or edit an instance of this class, use Annotations::MajorAngularDimensionBuilder

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::MajorAngularDimension::GetAssociatedObject ( )

virtual

Returns the associated object.

Returns

Associated object
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual std::vector<NXOpen::Annotations::BusinessModifier *> NXOpen::Annotations::MajorAngularDimension::GetBusinessModifiers ( )

virtual

Returns the business modifiers.

Returns

List of business modifiers
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::MajorAngularDimension::GetSharedAssociatedObject ( )

virtual

Returns the shared associated objects.

Returns

Shared associated objects
Created in NX8.5.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual int NXOpen::Annotations::MajorAngularDimension::Index ( )

virtual

Returns the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual bool NXOpen::Annotations::MajorAngularDimension::IsMirrored ( )

virtual

Returns a flag indicating whether the annotation is mirrored
Created in NX8.5.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual void NXOpen::Annotations::MajorAngularDimension::SetAssociatedObject ( NXOpen::Annotations::AssociatedObject *  assocObj )

virtual

Sets the associated object.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

assocObj

New associated object

Implements NXOpen::Annotations::IPmi.

virtual void NXOpen::Annotations::MajorAngularDimension::SetBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > &  businessModifiers )

virtual

Sets the business modifiers.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

businessModifiers

List of new business modifiers

Implements NXOpen::Annotations::IPmi.

virtual void NXOpen::Annotations::MajorAngularDimension::SetIndex ( int  index )

virtual

Sets the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

index

New integer for PMI object

Implements NXOpen::Annotations::IPmi.

---

The documentation for this class was generated from the following file:

• Annotations_MajorAngularDimension.hxx
