NXOpen::Annotations::IPmi Class Reference

Represents an object that has PMI(Product and Manufacturing Information) data. More...

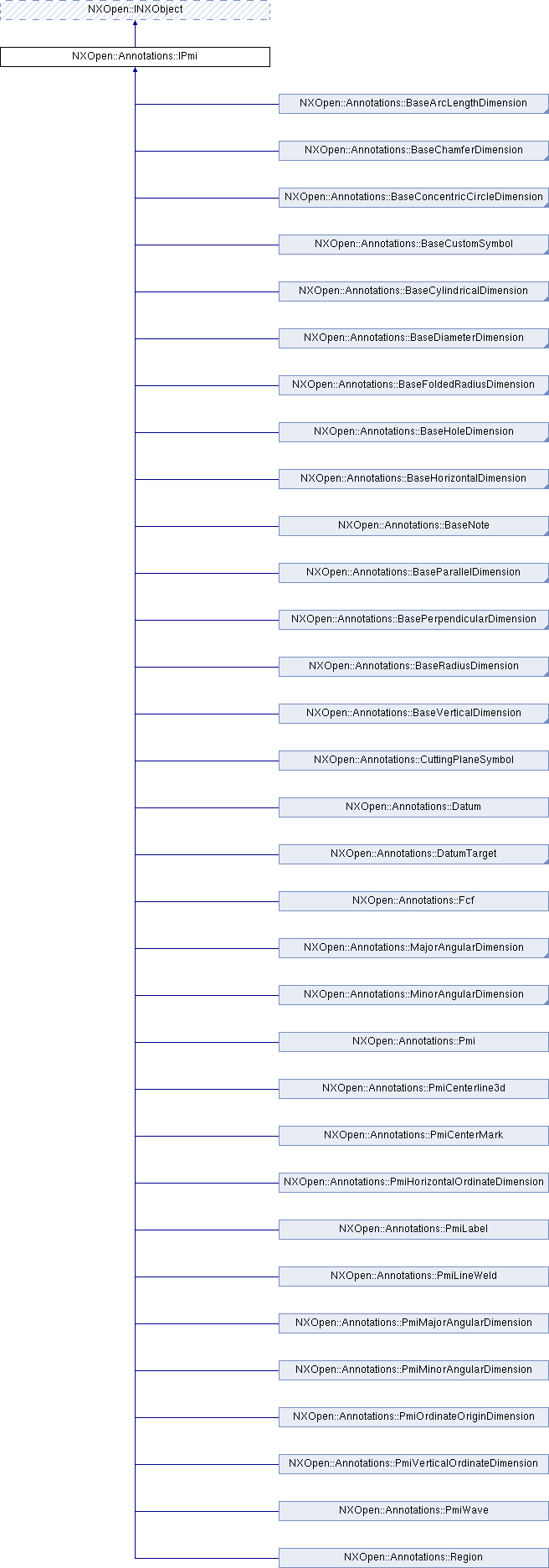

Inheritance diagram for NXOpen::Annotations::IPmi:

Public Member Functions
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()=0
	Returns the associated object.
virtual std::vector < NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()=0
	Returns the business modifiers.
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()=0
	Returns the shared associated objects.
virtual int	Index ()=0
	Returns the index.
virtual bool	IsMirrored ()=0
	Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0.
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)=0
	Sets the associated object.
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)=0
	Sets the business modifiers.
virtual void	SetIndex (int index)=0
	Sets the index.
Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()=0
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()=0
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.
virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents an object that has PMI(Product and Manufacturing Information) data.

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::IPmi::GetAssociatedObject ( )

pure virtual

Returns the associated object.

Returns

Associated object
Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual std::vector<NXOpen::Annotations::BusinessModifier *> NXOpen::Annotations::IPmi::GetBusinessModifiers ( )

pure virtual

Returns the business modifiers.

Returns

List of business modifiers
Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::IPmi::GetSharedAssociatedObject ( )

pure virtual

Returns the shared associated objects.

Returns

Shared associated objects
Created in NX8.5.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual int NXOpen::Annotations::IPmi::Index ( )

pure virtual

Returns the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual bool NXOpen::Annotations::IPmi::IsMirrored ( )

pure virtual

Returns a flag indicating whether the annotation is mirrored
Created in NX8.5.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual void NXOpen::Annotations::IPmi::SetAssociatedObject ( NXOpen::Annotations::AssociatedObject *  assocObj )

pure virtual

Sets the associated object.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

assocObj

New associated object

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual void NXOpen::Annotations::IPmi::SetBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > &  businessModifiers )

pure virtual

Sets the business modifiers.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

businessModifiers

List of new business modifiers

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

virtual void NXOpen::Annotations::IPmi::SetIndex ( int  index )

pure virtual

Sets the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

index

New integer for PMI object

Implemented in NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::Region, NXOpen::Annotations::Pmi, NXOpen::Annotations::Fcf, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiVerticalOrdinateDimension, and NXOpen::Annotations::PmiWave.

---

The documentation for this class was generated from the following file:

• Annotations_IPmi.hxx
