Represents a @link Annotations::LineWeldBuilder Annotations::LineWeldBuilder@endlink    <br> To create a new instance of this class, use @link Annotations::WeldCollection::CreateLineWeldBuilder  Annotations::WeldCollection::CreateLineWeldBuilder @endlink  <br>

Default values. More...

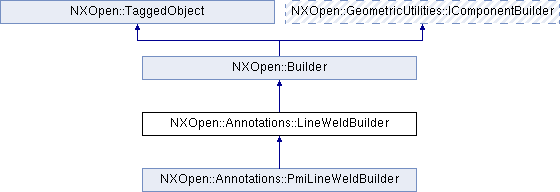

Inheritance diagram for NXOpen::Annotations::LineWeldBuilder:

Public Types
enum	FieldWeldType { FieldWeldTypePlain, FieldWeldTypeTopField, FieldWeldTypeTopFieldSimpleFlag }
	Represents the field weld type. More...

enum	IdLineType { IdLineTypePlain, IdLineTypeIdLineAbove, IdLineTypeIdLineBelow, IdLineTypeCenteredSpotWeld, IdLineTypeCenteredSeamWeld }
	Represents the id line type. More...

enum	StaggeredWeldType { StaggeredWeldTypeNoStaggeredSymbol, StaggeredWeldTypeStaggeredSymbol, StaggeredWeldTypeStaggeredSymbolWeldSide }
	Represents the staggered weld type. More...

enum	TailType { TailTypeNoTail, TailTypeTail, TailTypeBox }
	represents the tail type More...

enum	WeldSymbolWeldAlongContourType { WeldSymbolWeldAlongContourTypeNone, WeldSymbolWeldAlongContourTypeClosed, WeldSymbolWeldAlongContourTypeUnclosed, WeldSymbolWeldAlongContourTypeTrilateralWeld, WeldSymbolWeldAlongContourTypeAllAround }
	Represents the weld along contour option. More...

Public Member Functions
NXOpen::Annotations::LineWeldDataBuilder *	ArrowSideWeldData ()
	Returns the Annotations::LineWeldDataBuilder for the arrow side of the weld symbol Created in NX6.0.0.

NXOpen::Annotations::LineWeldBuilder::FieldWeldType	FieldWeld ()
	Returns the field indicating the weld is done at the field site Created in NX6.0.0.

bool	FlipDirection ()
	Returns the flip direction for top seam Created in NX6.0.0.

bool	FlipHorizontal ()
	Returns the flip horizontal direction for side seam Created in NX6.0.0.

bool	FlipVertical ()
	Returns the flip vertical direction for side seam Created in NX6.0.0.

std::vector< NXString >	GetReference ()
	Returns the reference or specification text.

NXOpen::Annotations::LineWeldBuilder::IdLineType	IdLine ()
	Returns the identification or reference line Created in NX6.0.0.

NXOpen::SelectDisplayableObject *	Inherit ()
	Returns the weld symbol from which the style properties are inherited Created in NX6.0.0.

void	InheritProperties (NXOpen::Annotations::Weld *annotation)
	This inherits the properties from the existing weld symbol Created in NX8.0.0.

void	InheritPropertiesFromWeldFeature (NXOpen::Body *feature)
	This inherits the properties from the existing weld feature Created in NX8.0.0.

NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for weld symbol Created in NX6.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the Annotations::OriginBuilder for the weld symbol Created in NX6.0.0.

NXOpen::Annotations::LineWeldDataBuilder *	OtherSideWeldData ()
	Returns the Annotations::LineWeldDataBuilder for the other side of the weld symbol Created in NX6.0.0.

double	Scale ()
	Returns the scaling factor for the welding symbol Created in NX6.0.0.

void	SetFieldWeld (NXOpen::Annotations::LineWeldBuilder::FieldWeldType fieldWeld)
	Sets the field indicating the weld is done at the field site Created in NX6.0.0.

void	SetFlipDirection (bool flipDirection)
	Sets the flip direction for top seam Created in NX6.0.0.

void	SetFlipHorizontal (bool flipHorizontal)
	Sets the flip horizontal direction for side seam Created in NX6.0.0.

void	SetFlipVertical (bool flipVertical)
	Sets the flip vertical direction for side seam Created in NX6.0.0.

void	SetIdLine (NXOpen::Annotations::LineWeldBuilder::IdLineType idLine)
	Sets the identification or reference line Created in NX6.0.0.

void	SetReference (const std::vector< NXString > &reference)
	Sets the reference or specification text Created in NX6.0.0.

void	SetScale (double scale)
	Sets the scaling factor for the welding symbol Created in NX6.0.0.

void	SetSpaceFactor (double spaceFactor)
	Sets the space factor for the welding symbol Created in NX7.0.0.

void	SetStaggeredWeld (NXOpen::Annotations::LineWeldBuilder::StaggeredWeldType staggeredWeld)
	Sets the staggered weld Created in NX6.0.0.

void	SetTail (NXOpen::Annotations::LineWeldBuilder::TailType tail)
	Sets the weld tail Created in NX6.0.0.

void	SetWeldAlongContour (NXOpen::Annotations::LineWeldBuilder::WeldSymbolWeldAlongContourType alongContour)
	Sets the weld along contour option Created in NX6.0.0.

NXOpen::SelectDisplayableObjectList *	SideSeamObjects ()
	Returns the side seam object Created in NX6.0.0.

double	SpaceFactor ()
	Returns the space factor for the welding symbol Created in NX7.0.0.

NXOpen::Annotations::LineWeldBuilder::StaggeredWeldType	StaggeredWeld ()
	Returns the staggered weld Created in NX6.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the Annotations::StyleBuilder for the weld symbol Created in NX6.0.0.

NXOpen::Annotations::LineWeldBuilder::TailType	Tail ()
	Returns the weld tail Created in NX6.0.0.

NXOpen::SelectDisplayableObject *	TopSeamObject ()
	Returns the top seam object Created in NX6.0.0.

NXOpen::Annotations::LineWeldBuilder::WeldSymbolWeldAlongContourType	WeldAlongContour ()
	Returns the weld along contour option Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Annotations::LineWeldBuilder Annotations::LineWeldBuilder@endlink    <br> To create a new instance of this class, use @link Annotations::WeldCollection::CreateLineWeldBuilder  Annotations::WeldCollection::CreateLineWeldBuilder @endlink  <br>

Default values.

Property

Value

ArrowSideWeldData.ContourSymbol

None

ArrowSideWeldData.FinishSymbol

None

ArrowSideWeldData.WeldSizeCode

None

ArrowSideWeldData.WeldSymbol

None

FieldWeld

Plain

FlipDirection

False

FlipHorizontal

False

FlipVertical

False

IdLine

Plain

Scale

1

StaggeredWeld

NoStaggeredSymbol

Tail

NoTail

WeldAlongContour

None

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::LineWeldBuilder::FieldWeldType

Represents the field weld type.

Enumerator:

FieldWeldTypePlain	plain
FieldWeldTypeTopField	top field
FieldWeldTypeTopFieldSimpleFlag	top field simple flag

enum NXOpen::Annotations::LineWeldBuilder::IdLineType

Represents the id line type.

Enumerator:

IdLineTypePlain	plain
IdLineTypeIdLineAbove	id line above
IdLineTypeIdLineBelow	id line below
IdLineTypeCenteredSpotWeld	centered spot weld
IdLineTypeCenteredSeamWeld	centered seam weld

enum NXOpen::Annotations::LineWeldBuilder::StaggeredWeldType

Represents the staggered weld type.

Enumerator:

StaggeredWeldTypeNoStaggeredSymbol	no staggered symbol
StaggeredWeldTypeStaggeredSymbol	staggered symbol
StaggeredWeldTypeStaggeredSymbolWeldSide	staggered symbol weld side

enum NXOpen::Annotations::LineWeldBuilder::TailType

represents the tail type

Enumerator:

TailTypeNoTail	no tail
TailTypeTail	tail
TailTypeBox	box

enum NXOpen::Annotations::LineWeldBuilder::WeldSymbolWeldAlongContourType

Represents the weld along contour option.

Enumerator:

WeldSymbolWeldAlongContourTypeNone	none
WeldSymbolWeldAlongContourTypeClosed	closed
WeldSymbolWeldAlongContourTypeUnclosed	unclosed
WeldSymbolWeldAlongContourTypeTrilateralWeld	trilateral weld
WeldSymbolWeldAlongContourTypeAllAround	all around

Member Function Documentation

NXOpen::Annotations::LineWeldDataBuilder* NXOpen::Annotations::LineWeldBuilder::ArrowSideWeldData ( )

Returns the Annotations::LineWeldDataBuilder for the arrow side of the weld symbol
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineWeldBuilder::FieldWeldType NXOpen::Annotations::LineWeldBuilder::FieldWeld ( )

Returns the field indicating the weld is done at the field site
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::LineWeldBuilder::FlipDirection ( )

Returns the flip direction for top seam
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::LineWeldBuilder::FlipHorizontal ( )

Returns the flip horizontal direction for side seam
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::LineWeldBuilder::FlipVertical ( )

Returns the flip vertical direction for side seam
Created in NX6.0.0.

License requirements : None

std::vector<NXString> NXOpen::Annotations::LineWeldBuilder::GetReference ( )

Returns the reference or specification text.

Returns: Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineWeldBuilder::IdLineType NXOpen::Annotations::LineWeldBuilder::IdLine ( )

Returns the identification or reference line
Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::LineWeldBuilder::Inherit ( )

Returns the weld symbol from which the style properties are inherited
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::LineWeldBuilder::InheritProperties ( NXOpen::Annotations::Weld * annotation )

This inherits the properties from the existing weld symbol
Created in NX8.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

annotation annotation

void NXOpen::Annotations::LineWeldBuilder::InheritPropertiesFromWeldFeature ( NXOpen::Body * feature )

This inherits the properties from the existing weld feature
Created in NX8.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

feature feature

NXOpen::Annotations::LeaderBuilder* NXOpen::Annotations::LineWeldBuilder::Leader ( )

Returns the Annotations::LeaderBuilder for weld symbol
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::LineWeldBuilder::Origin ( )

Returns the Annotations::OriginBuilder for the weld symbol
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineWeldDataBuilder* NXOpen::Annotations::LineWeldBuilder::OtherSideWeldData ( )

Returns the Annotations::LineWeldDataBuilder for the other side of the weld symbol
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::LineWeldBuilder::Scale ( )

Returns the scaling factor for the welding symbol
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::LineWeldBuilder::SetFieldWeld ( NXOpen::Annotations::LineWeldBuilder::FieldWeldType fieldWeld )

Sets the field indicating the weld is done at the field site
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

fieldWeld fieldweld

void NXOpen::Annotations::LineWeldBuilder::SetFlipDirection ( bool flipDirection )

Sets the flip direction for top seam
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

flipDirection flipdirection

void NXOpen::Annotations::LineWeldBuilder::SetFlipHorizontal ( bool flipHorizontal )

Sets the flip horizontal direction for side seam
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

flipHorizontal fliphorizontal

void NXOpen::Annotations::LineWeldBuilder::SetFlipVertical ( bool flipVertical )

Sets the flip vertical direction for side seam
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

flipVertical flipvertical

void NXOpen::Annotations::LineWeldBuilder::SetIdLine ( NXOpen::Annotations::LineWeldBuilder::IdLineType idLine )

Sets the identification or reference line
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

idLine id line

void NXOpen::Annotations::LineWeldBuilder::SetReference ( const std::vector< NXString > & reference )

Sets the reference or specification text
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

reference reference

void NXOpen::Annotations::LineWeldBuilder::SetScale ( double scale )

Sets the scaling factor for the welding symbol
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

scale scale

void NXOpen::Annotations::LineWeldBuilder::SetSpaceFactor ( double spaceFactor )

Sets the space factor for the welding symbol
Created in NX7.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

spaceFactor spacefactor

void NXOpen::Annotations::LineWeldBuilder::SetStaggeredWeld ( NXOpen::Annotations::LineWeldBuilder::StaggeredWeldType staggeredWeld )

Sets the staggered weld
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

staggeredWeld staggeredweld

void NXOpen::Annotations::LineWeldBuilder::SetTail ( NXOpen::Annotations::LineWeldBuilder::TailType tail )

Sets the weld tail
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

tail tail

void NXOpen::Annotations::LineWeldBuilder::SetWeldAlongContour ( NXOpen::Annotations::LineWeldBuilder::WeldSymbolWeldAlongContourType alongContour )

Sets the weld along contour option
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

alongContour alongcontour

NXOpen::SelectDisplayableObjectList* NXOpen::Annotations::LineWeldBuilder::SideSeamObjects ( )

Returns the side seam object
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::LineWeldBuilder::SpaceFactor ( )

Returns the space factor for the welding symbol
Created in NX7.0.0.

License requirements : None

NXOpen::Annotations::LineWeldBuilder::StaggeredWeldType NXOpen::Annotations::LineWeldBuilder::StaggeredWeld ( )

Returns the staggered weld
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::StyleBuilder* NXOpen::Annotations::LineWeldBuilder::Style ( )

Returns the Annotations::StyleBuilder for the weld symbol
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineWeldBuilder::TailType NXOpen::Annotations::LineWeldBuilder::Tail ( )

Returns the weld tail
Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::LineWeldBuilder::TopSeamObject ( )

Returns the top seam object
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineWeldBuilder::WeldSymbolWeldAlongContourType NXOpen::Annotations::LineWeldBuilder::WeldAlongContour ( )

Returns the weld along contour option
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_LineWeldBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
