Represents a line weld
To create or edit an instance of this class, use Annotations::LineWeldBuilder
Created in NX4.0.0.
More...

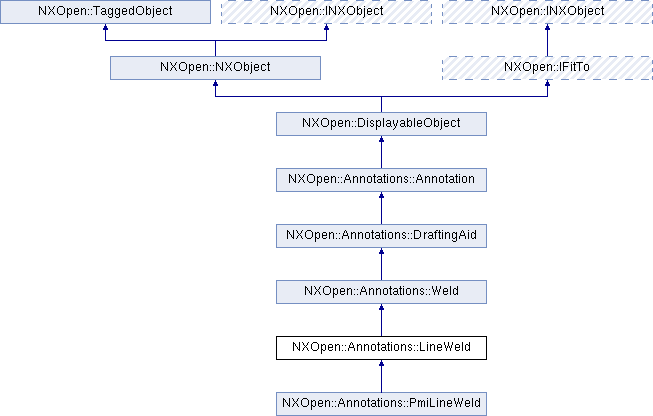

Inheritance diagram for NXOpen::Annotations::LineWeld:
Public Member Functions | |
| NXOpen::Annotations::LineWeldData * | GetWeldData () |
| Returns the weld data. | |
| void | SetWeldData (NXOpen::Annotations::LineWeldData *data) |
| Sets the weld data. | |
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
Detailed Description
Represents a line weld
To create or edit an instance of this class, use Annotations::LineWeldBuilder
Created in NX4.0.0.
Member Function Documentation
| NXOpen::Annotations::LineWeldData* NXOpen::Annotations::LineWeld::GetWeldData | ( | ) |
Returns the weld data.
- Returns
- Line weld data
Created in NX4.0.0.
License requirements : None
| void NXOpen::Annotations::LineWeld::SetWeldData | ( | NXOpen::Annotations::LineWeldData * | data | ) |
Sets the weld data.
NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
If it is, the changes will be overridden when the part is updated.
Created in NX4.0.0.
License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")
- Parameters
-
data New line weld data
The documentation for this class was generated from the following file:
- Annotations_LineWeld.hxx
