Represents a PMI Lightweight Section View
Created with LightweightSection

Created in NX7.5.0. More...

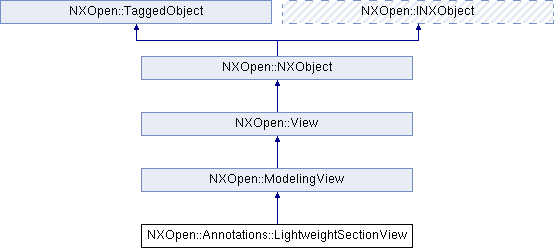

Inheritance diagram for NXOpen::Annotations::LightweightSectionView:

Public Member Functions
bool	GetSectionCurvesVisibility ()
	Returns the lightweight section view curves visiblity.

void	SetSectionCurvesVisibility (bool optionHideShow)
	Sets the lightweight section view curves visiblity Created in NX7.5.0.

Public Member Functions inherited from NXOpen::ModelingView
NXOpen::Display::DynamicSection *	ActiveDynamicSection ()
	Returns the active dynamic section object in the modeling view.

bool	DisplaySectioningToggle ()
	Returns the toggle between enabling or disabling the Dynamic Sectioning viewing Created in NX4.0.0.

void	GetDisplaySectioning (NXOpen::Matrix3x3 sectionMatrix, NXOpen::Point3d sectionOrigin, std::vector< double > &planeDist, NXOpen::ModelingView::OtherSectionAttrT *otherAttrs)
	To adjust and orient the Sectioning planes as a quick display trick.

NXOpen::ModelingViewHighQualityImage *	HiqhQualityImage ()
	Returns the High Quality Image instance belonging to a view Created in NX3.0.0.

bool	IsDynamicSectionVisible (NXOpen::Display::DynamicSection *dynamicSection)
	Returns if the specified dynamic section object is visible in this view.

bool	IsMirrored ()
	Returns a flag indicating whether the model view is mirrored Created in NX8.5.0.

void	SetActiveDynamicSection (NXOpen::Display::DynamicSection *dynamicSection)
	Sets the active dynamic section object in the modeling view.

void	SetDisplaySectioning (const NXOpen::Matrix3x3 &sectionMatrix, const NXOpen::Point3d &sectionOrigin, const std::vector< double > &planeDist, const NXOpen::ModelingView::OtherSectionAttrT &otherAttrs)
	To adjust and orient the Sectioning planes as a quick display trick.

void	SetDisplaySectioningToggle (bool newState)
	Sets the toggle between enabling or disabling the Dynamic Sectioning viewing Created in NX4.0.0.

void	SetDynamicSectionVisible (NXOpen::Display::DynamicSection *dynamicSection, bool visible)
	Sets the specified dynamic section object is visible/invisible in this view.

void	UseDefaultLights ()
	Changes the set of lights used in the given view to the "Default" set, which for now is the Scene Ambient, Scene Left Top and Scene Right Top lights.

void	UseSceneLights ()
	Changes the set of lights used in the given view to the "Scene" set, which for now includes the eight predefined scene lights (including the Scene Ambient light).

Public Member Functions inherited from NXOpen::View
NXOpen::Point3d	AbsoluteOrigin ()
	Returns the view origin in absolute space.

std::vector < NXOpen::DisplayableObject * >	AskVisibleObjects ()
	Returns an array of objects visible in a view.

void	Concatenate (const NXOpen::Point3d &translation)
	Concatenates the given translation with the previous viewing transformation of the specified view.

void	Concatenate (double scale)
	Concatenates the given scale with the previous viewing transformation of the specified view.

void	Concatenate (const NXOpen::Point3d &translation, double scale)
	Concatenates the given translation and scale with the previous viewing transformation of the specified view.

void	Concatenate (const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given rotation with the previous viewing transformation of the specified view.

void	Concatenate (const NXOpen::Point3d &translation, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given translation and rotation with the previous viewing transformation of the specified view.

void	Concatenate (double scale, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given scale and rotation with the previous viewing transformation of the specified view.

void	Concatenate (const NXOpen::Point3d &translation, double scale, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given translation, scale and rotation with the previous viewing transformation of the specified view.

NXOpen::ViewDependentDisplayManager *	DependentDisplay ()
	Returns an object to perform all view dependent display operations Created in NX3.0.0.

void	Expand ()
	Expands the specified view to fill as much of the layout which contains the view as possible, without changing the aspect ratio of the view.

void	Fit ()
	Adjusts the bounds of a given view so that it fully encompasses the extents of the model geometry.

void	FitAfterShowOrHide (NXOpen::View::ShowOrHideType type)
	Adjusts the bounds of a given view conditionally so that it fully encompasses the extents of the model geometry.

void	FitToObjects (const std::vector< NXOpen::IFitTo * > &objects)
	Adjusts the bounds of a given view so that it fully encompasses the extents of the given objects.

NXOpen::Vector3d	GetAxis (NXOpen::XYZAxis xYZAxis)
	Returns one of the view axes.

bool	LockRotations ()
	Returns the "Lock Rotations" toggle state of a view.

void	MakeWork ()
	Makes the given view the work view.

NXOpen::Matrix3x3	Matrix ()
	Returns the view matrix.

void	Orient (const NXOpen::Matrix3x3 &matrix)
	Changes the view orientation relative to the specified absolute coordinate system.

void	Orient (NXOpen::View::Canned viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified canned view.

void	Orient (const NXString &viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified view.

void	Orient (const char *viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified view.

NXOpen::Point3d	Origin ()
	Returns the view origin.

void	Regenerate ()
	Regenerates the display of given view.

NXOpen::View::RenderingStyleType	RenderingStyle ()
	Returns the rendering style of the view.

bool	Restore ()
	Restores a view to its last remembered rotation, scale and translation.

void	Rotate (const NXOpen::Matrix3x3 &matrix)
	Rotates the view by concatenating the given matrix to the existing rotation matrix of the view.

void	Rotate (const NXOpen::Point3d &origin, const NXOpen::Vector3d &vector, double angle)
	Rotates the specified view using the specified origin of rotation and about the specified axis.

double	Scale ()
	Returns the view scale Created in NX3.0.0.

void	SetLockRotations (bool newToggleState)
	Sets the "Lock Rotations" toggle state of a view.

void	SetOrigin (const NXOpen::Point3d &origin)
	Moves the given position to the center of the view.

void	SetRenderingStyle (NXOpen::View::RenderingStyleType renderingStyle)
	Sets the rendering style of the view.

void	SetRotationTranslationScale (const NXOpen::Matrix3x3 &rotMatrix, const NXOpen::Point3d &translation, double scale)
	Sets the rotation, translation and scale of the specified view.

void	SetScale (double scale)
	Sets the scale of the specified view to the desired scale factor.

void	SetSyncViews (bool newToggleState)
	Sets the "Synchronized Views" toggle state of a view.

void	SnapToClosestCannedOrientation ()
	Changes the orientation of the given view to the orientation of the canned view whose orientation is the closest to that of the given view.

void	SnapToVariantCannedOrientation ()
	Similar to View::SnapToClosestCannedOrientation except it changes the orientation of the given view to the orientation of some canned view "variant" based on I-deas's 'snapview' logic whose orientation is the closest to one of the six orthographic and eight flavors of trimetric views.

bool	SyncViews ()
	Returns the "Synchronized Views" toggle state of a view.

void	UpdateCustomSymbols ()
	Updates custom symbol in a drawing member view or drawing sheet Created in NX8.0.1.

void	UpdateDisplay ()
	Updates the display of given view, as needed.

NXOpen::Preferences::ViewVisualizationSpecialEffects *	VisualizationSpecialEffectsPreferences ()
	Returns an object to perform all visualization Special Effects related preferences settings Created in NX3.0.0.

NXOpen::Preferences::ViewVisualizationVisual *	VisualizationVisualPreferences ()
	Returns an object to perform all visualization related preferences settings Created in NX3.0.0.

void	Zoom (NXOpen::View::ScaleFactor scaleFactor)
	Scales the specified view to a desired relative scale.

void	ZoomAboutPoint (double relativeScale, const NXOpen::Point3d &scaleAboutPoint, const NXOpen::Point3d &viewCenter)
	Scales the specified view such that the given scale_about_point does not move.

void	ZoomByRectangle (const NXOpen::Point3d &corner1, const NXOpen::Point3d &corner2)
	Scales the specified view such that the specified rectangle is as large as possible while being fully contained within the viewport.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::ModelingView
enum	SectionCap { SectionCapOff, SectionCapOn, SectionCapBodyColor, SectionCapBodyColorAndInterference }
	Defines whether to disable and enable capping. More...

enum	SectionPlane { SectionPlanePrimary, SectionPlaneSecondary }
	This arbitrarily defines an initaial reference point. More...

Detailed Description

Represents a PMI Lightweight Section View
Created with LightweightSection

Created in NX7.5.0.

Member Function Documentation

bool NXOpen::Annotations::LightweightSectionView::GetSectionCurvesVisibility ( )

Returns the lightweight section view curves visiblity.

Returns: false = Hide lightweight section curves, true = Show lightweight section curves
Created in NX7.5.0.

License requirements : None

void NXOpen::Annotations::LightweightSectionView::SetSectionCurvesVisibility ( bool optionHideShow )

Sets the lightweight section view curves visiblity
Created in NX7.5.0.

License requirements : None

Parameters

optionHideShow false = Hide lightweight section curves, true = Show lightweight section curves

The documentation for this class was generated from the following file:

Annotations_LightweightSectionView.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
