Represents a Annotations::FeatureControlFrameBuilder
This is an abstract class, and cannot be instantiated. More...

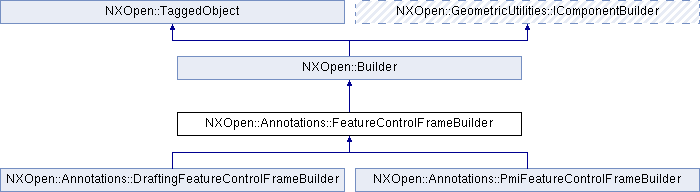

Inheritance diagram for NXOpen::Annotations::FeatureControlFrameBuilder:

Public Types
enum	FcfCharacteristic { FcfCharacteristicStraightness, FcfCharacteristicFlatness, FcfCharacteristicCircularity, FcfCharacteristicCylindricity, FcfCharacteristicProfileOfALine, FcfCharacteristicProfileOfASurface, FcfCharacteristicAngularity, FcfCharacteristicPerpendicularity, FcfCharacteristicParallelism, FcfCharacteristicPosition, FcfCharacteristicConcentricity, FcfCharacteristicSymmetry, FcfCharacteristicCircularRunout, FcfCharacteristicTotalRunout, FcfCharacteristicAxisIntersection }
	Specifies the characteristitic of the feature control frame. More...

enum	FcfFrameStyle { FcfFrameStyleSingleFrame, FcfFrameStyleCompositeFrame }
	Specifies whether the feature control frame is a single frame or composite. More...

Public Member Functions
NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic	Characteristic ()
	Returns the characteristic Created in NX6.0.0.

void	FeatureControlFrameData (std::vector< NXOpen::Annotations::FeatureControlFrameDataBuilder * > &featureControlFrameDataBuilders)
	The feature control frame data list Created in NX6.0.0.

NXOpen::Annotations::FeatureControlFrameDataBuilderList *	FeatureControlFrameDataList ()
	Returns the feature control frame data list Created in NX6.0.0.

NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle	FrameStyle ()
	Returns the frame style Created in NX6.0.0.

void	InheritFrom (NXOpen::Annotations::BaseFcf *inheritTag)
	The feature control frame is inherited form existing feature control frame.

NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the Annotations::OriginBuilder for the annotation Created in NX6.0.0.

void	SetCharacteristic (NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic characteristic)
	Sets the characteristic Created in NX6.0.0.

void	SetFrameStyle (NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle frameStyle)
	Sets the frame style Created in NX6.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX6.0.0.

NXOpen::Annotations::TextWithSymbolsBuilder *	Text ()
	Returns the text Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::FeatureControlFrameBuilder
This is an abstract class, and cannot be instantiated.

Default values.

Property

Value

Text.CustomSymbolScale

1.0

Text.SymbolAspectRatio

1.0

Text.SymbolHeight

25.4 (millimeters part), 1.0 (inches part)

Text.SymbolLength

25.4 (millimeters part), 1.0 (inches part)

Text.SymbolPreferences

UseCurrent

Text.SymbolScale

1.0

Text.SymbolSizeMethod

ScaleAndAspectRatio

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic

Specifies the characteristitic of the feature control frame.

Enumerator:

FcfCharacteristicStraightness	straightness
FcfCharacteristicFlatness	flatness
FcfCharacteristicCircularity	circularity
FcfCharacteristicCylindricity	cylindricity
FcfCharacteristicProfileOfALine	profile of a line
FcfCharacteristicProfileOfASurface	profile of a sufrace
FcfCharacteristicAngularity	angularity
FcfCharacteristicPerpendicularity	perpendicularity
FcfCharacteristicParallelism	parallelism
FcfCharacteristicPosition	position
FcfCharacteristicConcentricity	concentricity
FcfCharacteristicSymmetry	symmetry
FcfCharacteristicCircularRunout	circular runout
FcfCharacteristicTotalRunout	total runout
FcfCharacteristicAxisIntersection	axis intersection

enum NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle

Specifies whether the feature control frame is a single frame or composite.

Enumerator:

FcfFrameStyleSingleFrame	single frame
FcfFrameStyleCompositeFrame	composite frame

Member Function Documentation

NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic NXOpen::Annotations::FeatureControlFrameBuilder::Characteristic ( )

Returns the characteristic
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::FeatureControlFrameBuilder::FeatureControlFrameData ( std::vector< NXOpen::Annotations::FeatureControlFrameDataBuilder * > & featureControlFrameDataBuilders )

The feature control frame data list
Created in NX6.0.0.

License requirements : None

Parameters

featureControlFrameDataBuilders feature control frame data builders

NXOpen::Annotations::FeatureControlFrameDataBuilderList* NXOpen::Annotations::FeatureControlFrameBuilder::FeatureControlFrameDataList ( )

Returns the feature control frame data list
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle NXOpen::Annotations::FeatureControlFrameBuilder::FrameStyle ( )

Returns the frame style
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::FeatureControlFrameBuilder::InheritFrom ( NXOpen::Annotations::BaseFcf * inheritTag )

The feature control frame is inherited form existing feature control frame.

Created in NX8.5.0.

License requirements : None

Parameters

inheritTag inherittag

NXOpen::Annotations::LeaderBuilder* NXOpen::Annotations::FeatureControlFrameBuilder::Leader ( )

Returns the Annotations::LeaderBuilder for the annotation
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::FeatureControlFrameBuilder::Origin ( )

Returns the Annotations::OriginBuilder for the annotation
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::FeatureControlFrameBuilder::SetCharacteristic ( NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic characteristic )

Sets the characteristic
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

characteristic characteristic

void NXOpen::Annotations::FeatureControlFrameBuilder::SetFrameStyle ( NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle frameStyle )

Sets the frame style
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

frameStyle framestyle

NXOpen::Annotations::StyleBuilder* NXOpen::Annotations::FeatureControlFrameBuilder::Style ( )

Returns the style
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::TextWithSymbolsBuilder* NXOpen::Annotations::FeatureControlFrameBuilder::Text ( )

Returns the text
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_FeatureControlFrameBuilder.hxx
