Represents an FCF
To create or edit an instance of this class, use Annotations::DraftingFeatureControlFrameBuilder
Created in NX4.0.0.
More...

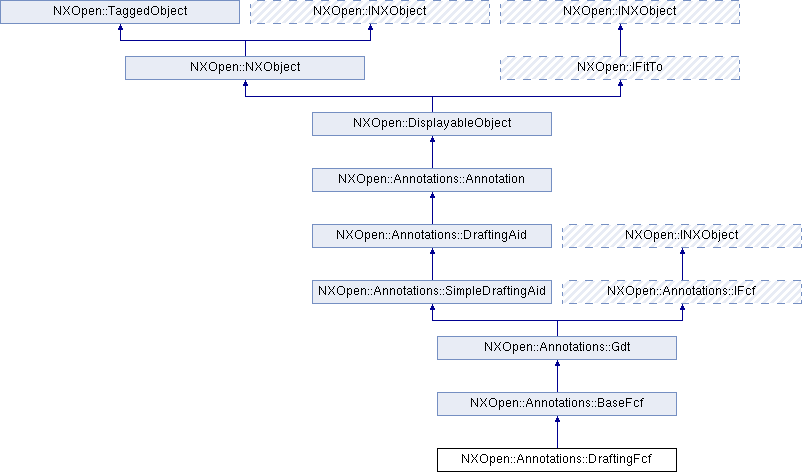

Inheritance diagram for NXOpen::Annotations::DraftingFcf:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::Gdt | |
| bool | CanChangeLeaderPositionParameter () |
| Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0. | |
| virtual NXOpen::Annotations::FcfFrameData * | GetFcfFrameData () |
| Returns the single FCF frames data. | |
| virtual std::vector < NXOpen::Annotations::FcfFrameData * > | GetFcfFrameDataArray () |
| Returns the multiple FCF frames data. | |
| bool | HasLeaderPositionParameter () |
| Returns a flag indicating whether this GDT has a leader position parameter. | |
| bool | HasStubbedDatumStyle () |
| Returns a flag indicating whether the leader has a stubbed datum style. | |
| double | LeaderPositionParameter () |
| Returns a parameter which indicates where the leader end point is located on the object that it is attached to. | |
| virtual void | SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data) |
| Sets the single FCF frames data. | |
| virtual void | SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData) |
| Sets the multiple FCF frames data. | |
| void | SetHasStubbedDatumStyle (bool stubbed) |
| Sets a flag indicating whether the leader has a stubbed datum style. | |
| void | SetLeaderPositionParameter (double param) |
| Sets a parameter which indicates where the leader end point is located on the object that it is attached to. | |
| void | SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw) |
| Sets the symbol color, font, and width. | |
Detailed Description
Represents an FCF
To create or edit an instance of this class, use Annotations::DraftingFeatureControlFrameBuilder
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_DraftingFcf.hxx
