Represents a datum
To create or edit an instance of this class, use Annotations::DraftingDatumFeatureSymbolBuilder
Created in NX5.0.0.
More...

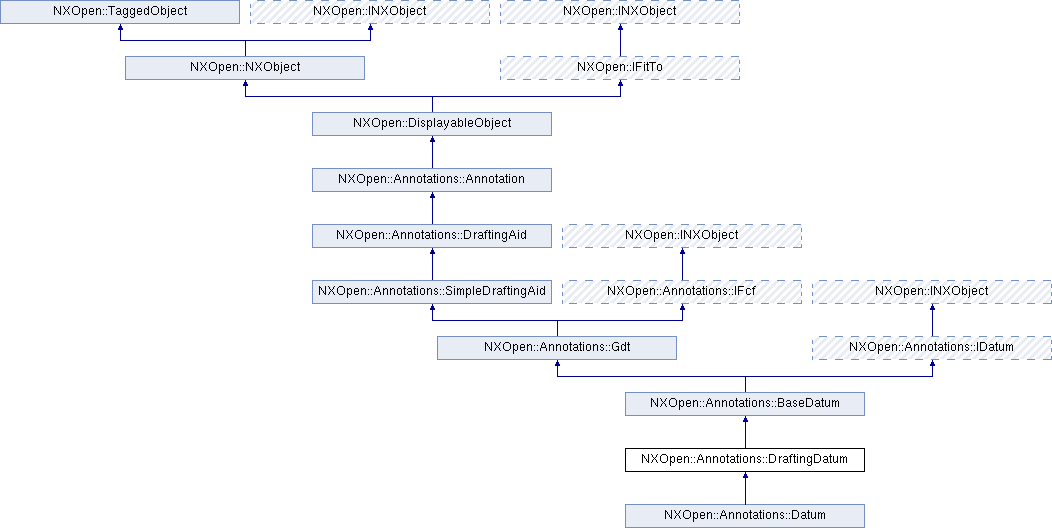

Inheritance diagram for NXOpen::Annotations::DraftingDatum:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::BaseDatum | |
| virtual NXString | Label () |
| Returns the label. | |
| virtual void | SetLabel (const NXString &label) |
| Sets the label. | |
| void | SetLabel (const char *label) |
| Sets the label. | |
Detailed Description
Represents a datum
To create or edit an instance of this class, use Annotations::DraftingDatumFeatureSymbolBuilder
Created in NX5.0.0.
The documentation for this class was generated from the following file:
- Annotations_DraftingDatum.hxx
