Represents a dimension set
This is an abstract class. More...

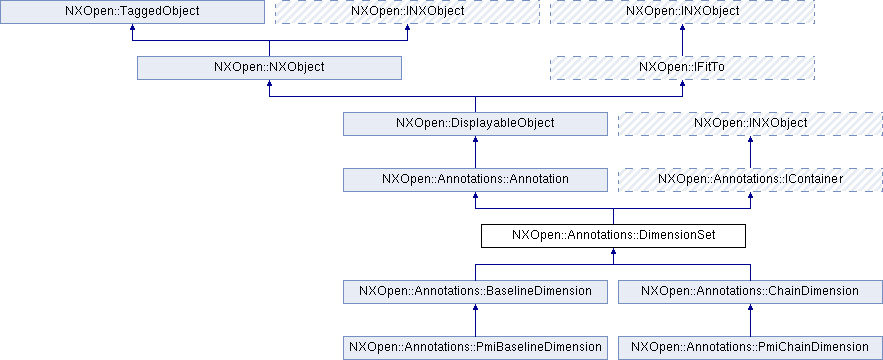

Inheritance diagram for NXOpen::Annotations::DimensionSet:

Public Member Functions
NXOpen::Annotations::Dimension *	AddDimension (NXOpen::Annotations::DimensionData *dimensionData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
	Adds a dimension to the set.

NXOpen::Annotations::Dimension *	AddPmiDimension (NXOpen::Annotations::DimensionData dimensionData, NXOpen::Annotations::PmiData pmiData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
	Adds a PMI dimension to the PMI dimension set.

NXOpen::Annotations::Dimension *	AddPmiDimension (NXOpen::Annotations::DimensionData dimensionData, NXOpen::Annotations::PmiData pmiData, NXOpen::Xform *annotationPlane, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
	Adds a PMI dimension to the PMI dimension set.

double	DimensionOffset ()
	Returns the dimension offset Created in NX4.0.0.

std::vector < NXOpen::Annotations::Dimension * >	GetAllSubDimensions ()
	Returns all the sub dimensions of this set.

virtual std::vector < NXOpen::NXObject * >	GetObjects ()
	Returns the objects in the container.

virtual void	RemoveObject (NXOpen::NXObject *object)
	Removes an object in the container.

void	ReverseOffset ()
	Reverse the offset of Baseline/Chain Dimension Created in NX5.0.0.

void	SetDimensionOffset (double dimensionOffset)
	Sets the dimension offset Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Annotations::Annotation
NXOpen::Point3d	AnnotationOrigin ()
	Returns the origin (location) of the annotation.

NXOpen::Xform *	AnnotationPlane ()
	Returns the annotation plane.

NXOpen::Annotations::Annotation::AssociativeOriginData	GetAssociativeOrigin (NXOpen::Point3d *origin)
	Gets data that specifies the origin's associativity.

NXOpen::Annotations::Associativity *	GetAssociativity (int associativityIndex)
	Returns the associativity at specified index.

NXOpen::Xform *	GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
	Returns the inferred annotation plane.

NXOpen::Annotations::LetteringPreferences *	GetLetteringPreferences ()
	Returns the lettering preferences for the annotation.

NXOpen::Annotations::LineAndArrowPreferences *	GetLineAndArrowPreferences ()
	Returns the line and arrow preferences for the annotation.

NXOpen::Annotations::SymbolPreferences *	GetSymbolPreferences ()
	Returns the symbol preferences for the annotation.

std::vector< NXOpen::View * >	GetViews ()
	Returns the views that the PMI display instance object is displayed in NOTE: This method is only valid for PMI display instance objects.

bool	HasAssociativeOrigin ()
	Returns a flag indicating whether the origin is associative Created in NX3.0.0.

void	InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
	Inserts the annotation into a stack.

bool	IsRetained ()
	Returns a flag indicating whether the annotation is retained Created in NX3.0.0.

NXOpen::Annotations::LeaderOrientation	LeaderOrientation ()
	Returns the leader orientation for the annotation.

int	NumberOfAssociativities ()
	Returns the number of associativities for the annotation.

void	SetAnnotationOrigin (const NXOpen::Point3d &origin)
	Sets the origin (location) of the annotation.

void	SetAnnotationPlane (NXOpen::Xform *annotationPlane)
	Sets the annotation plane.

void	SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
	Associates the annotation's origin to the specified geometry.

void	SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
	Sets the associativity at specified index.

void	SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
	Sets the leader orientation for the annotation.

void	SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
	Sets the lettering preferences for the annotation.

void	SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
	Sets the line and arrow preferences for the annotation.

void	SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
	Sets the symbol preferences for the annotation.

void	SetViews (const std::vector< NXOpen::View * > &modelViews)
	Sets the views that the PMI display instance object is displayed in.

Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.

int	Color ()
	Returns the color of the object.

void	Highlight ()
	Highlights the object.

bool	IsBlanked ()
	Returns the blank status of this object.

int	Layer ()
	Returns the layer that the object is in.

NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.

NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.

NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.

void	RedisplayObject ()
	Redisplays the object in all views.

void	SetColor (int color)
	Sets the color of the object.

void	SetLayer (int layer)
	Sets the layer that the object is in.

void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.

void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.

void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.

void	Unblank ()
	Unblanks the object.

void	Unhighlight ()
	Unhighlights the object.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a dimension set
This is an abstract class.

Created in NX4.0.0.

Member Function Documentation

NXOpen::Annotations::Dimension* NXOpen::Annotations::DimensionSet::AddDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim
	)

Adds a dimension to the set.

Returns: Dimension added to the set
Created in NX4.0.0.

License requirements : drafting ("DRAFTING")

Parameters

dimensionData	Dimension data
origin	Origin for the dimension
autoAdjustNarrowDim	If narrow dimension should be automatically adjusted

NXOpen::Annotations::Dimension* NXOpen::Annotations::DimensionSet::AddPmiDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		NXOpen::Annotations::PmiData *	pmiData,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim
	)

Adds a PMI dimension to the PMI dimension set.

The new dimension is created on the same plane as the existing dimensions.

Returns: Dimension added to the set
Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

dimensionData	Dimension data
pmiData	PMI data
origin	Origin for the dimension
autoAdjustNarrowDim	If narrow dimension should be automatically adjusted

NXOpen::Annotations::Dimension* NXOpen::Annotations::DimensionSet::AddPmiDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		NXOpen::Annotations::PmiData *	pmiData,
		NXOpen::Xform *	annotationPlane,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim
	)

Adds a PMI dimension to the PMI dimension set.

The new dimension is created on the same plane as the existing dimensions.

Returns: Dimension added to the set
Created in NX5.0.0.

License requirements : geometric_tol ("GDT")

Parameters

dimensionData	Dimension data
pmiData	PMI data
annotationPlane	Annotation plane on which the dimensions lie
origin	Origin for the dimension
autoAdjustNarrowDim	If narrow dimension should be automatically adjusted

double NXOpen::Annotations::DimensionSet::DimensionOffset ( )

Returns the dimension offset
Created in NX4.0.0.

License requirements : None

std::vector<NXOpen::Annotations::Dimension *> NXOpen::Annotations::DimensionSet::GetAllSubDimensions ( )

Returns all the sub dimensions of this set.

Returns: Created in NX5.0.0.

License requirements : None

virtual std::vector<NXOpen::NXObject *> NXOpen::Annotations::DimensionSet::GetObjects ( )

virtual

Returns the objects in the container.

Returns: List of objects
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IContainer.

virtual void NXOpen::Annotations::DimensionSet::RemoveObject ( NXOpen::NXObject * object )

virtual

Removes an object in the container.

The container object is deleted when the last object in it is deleted
Created in NX4.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

object Object to remove

Implements NXOpen::Annotations::IContainer.

void NXOpen::Annotations::DimensionSet::ReverseOffset ( )

Reverse the offset of Baseline/Chain Dimension
Created in NX5.0.0.

License requirements : geometric_tol ("GDT")

void NXOpen::Annotations::DimensionSet::SetDimensionOffset ( double dimensionOffset )

Sets the dimension offset
Created in NX4.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

dimensionOffset dimension offset

The documentation for this class was generated from the following file:

Annotations_DimensionSet.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
