Represents a chain dimension. More...

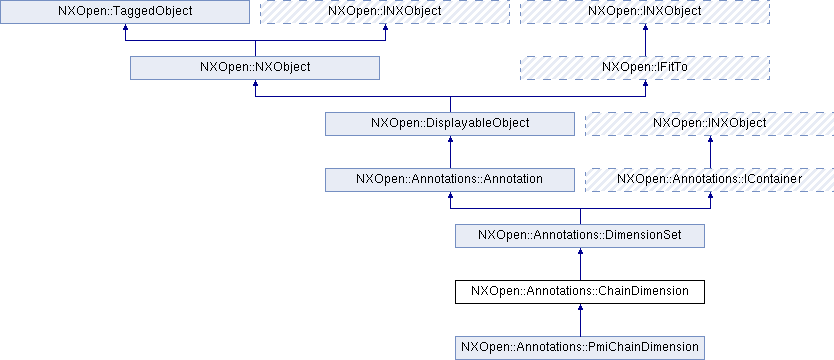

Inheritance diagram for NXOpen::Annotations::ChainDimension:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::DimensionSet | |
| NXOpen::Annotations::Dimension * | AddDimension (NXOpen::Annotations::DimensionData *dimensionData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim) |
| Adds a dimension to the set. | |
| NXOpen::Annotations::Dimension * | AddPmiDimension (NXOpen::Annotations::DimensionData *dimensionData, NXOpen::Annotations::PmiData *pmiData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim) |
| Adds a PMI dimension to the PMI dimension set. | |
| NXOpen::Annotations::Dimension * | AddPmiDimension (NXOpen::Annotations::DimensionData *dimensionData, NXOpen::Annotations::PmiData *pmiData, NXOpen::Xform *annotationPlane, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim) |
| Adds a PMI dimension to the PMI dimension set. | |
| double | DimensionOffset () |
| Returns the dimension offset Created in NX4.0.0. | |
| std::vector < NXOpen::Annotations::Dimension * > | GetAllSubDimensions () |
| Returns all the sub dimensions of this set. | |
| virtual std::vector < NXOpen::NXObject * > | GetObjects () |
| Returns the objects in the container. | |
| virtual void | RemoveObject (NXOpen::NXObject *object) |
| Removes an object in the container. | |
| void | ReverseOffset () |
| Reverse the offset of Baseline/Chain Dimension Created in NX5.0.0. | |
| void | SetDimensionOffset (double dimensionOffset) |
| Sets the dimension offset Created in NX4.0.0. | |
Detailed Description
Represents a chain dimension.
It is a set of horizontal or vertical dimensions.
There is no KF creator for this class.
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_ChainDimension.hxx
