Represents a Annotations::OrdinateDimension builder
This is an abstract class and cannot be instantiated. More...

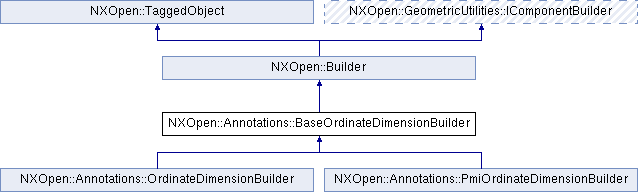

Inheritance diagram for NXOpen::Annotations::BaseOrdinateDimensionBuilder:

Public Types
enum	Types { TypesSingleDimension, TypesMultipleDimension }
	the type of dimension being created More...

Public Member Functions
NXOpen::Annotations::OrdinateMargin *	ActiveHorizontalMargin ()
	Returns the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed.

NXOpen::Annotations::OrdinateMargin *	ActiveVerticalMargin ()
	Returns the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed.

bool	AllowDuplicates ()
	Returns the allow duplicates Created in NX9.0.0.

NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
	Returns the appended text Created in NX9.0.0.

NXOpen::SelectDisplayableObjectList *	AutoAssociativities ()
	Returns the auto ordinate associativities Created in NX9.0.0.

NXOpen::Annotations::OrdinateBaselineBuilder *	Baseline ()
	Returns the baseline Created in NX9.0.0.

NXOpen::Point3d	HorizontalInferredMarginLocation ()
	Returns the horizontal inferred margin location Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	Inherit ()
	Returns the inherit Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	OrdinateOrigin ()
	Returns the ordinate origin Created in NX9.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the origin Created in NX9.0.0.

bool	RespositionExisting ()
	Returns the resposition existing Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	SecondAssociativities ()
	Returns the second associativities Created in NX9.0.0.

void	SetActiveHorizontalMargin (NXOpen::Annotations::OrdinateMargin *margin)
	Sets the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed.

void	SetActiveVerticalMargin (NXOpen::Annotations::OrdinateMargin *margin)
	Sets the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed.

void	SetAllowDuplicates (bool allowDuplicates)
	Sets the allow duplicates Created in NX9.0.0.

void	SetHorizontalInferredMarginLocation (const NXOpen::Point3d &location)
	Sets the horizontal inferred margin location Created in NX9.0.0.

void	SetRespositionExisting (bool respositionExisting)
	Sets the resposition existing Created in NX9.0.0.

void	SetType (NXOpen::Annotations::BaseOrdinateDimensionBuilder::Types type)
	Sets the type Created in NX9.0.0.

void	SetVerticalInferredMarginLocation (const NXOpen::Point3d &location)
	Sets the vertical inferred margin location Created in NX9.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX9.0.0.

NXOpen::Annotations::BaseOrdinateDimensionBuilder::Types	Type ()
	Returns the type Created in NX9.0.0.

NXOpen::Point3d	VerticalInferredMarginLocation ()
	Returns the vertical inferred margin location Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::OrdinateDimension builder
This is an abstract class and cannot be instantiated.

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::BaseOrdinateDimensionBuilder::Types

the type of dimension being created

Enumerator:

TypesSingleDimension	singular dimension
TypesMultipleDimension	group or set of dimensions

Member Function Documentation

NXOpen::Annotations::OrdinateMargin* NXOpen::Annotations::BaseOrdinateDimensionBuilder::ActiveHorizontalMargin ( )

Returns the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed.

       A margin can be created using @link OrdinateMarginCollection OrdinateMarginCollection@endlink .
       If NULL, must set a HorizontalInferredMarginLocation which will be used to place dimension

Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::OrdinateMargin* NXOpen::Annotations::BaseOrdinateDimensionBuilder::ActiveVerticalMargin ( )

Returns the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed.

        A margin can be created using @link OrdinateMarginCollection OrdinateMarginCollection@endlink .
       If NULL, must set a VerticalInferredMarginLocation which will be used to place dimension

Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseOrdinateDimensionBuilder::AllowDuplicates ( )

Returns the allow duplicates
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::AppendedTextBuilder* NXOpen::Annotations::BaseOrdinateDimensionBuilder::AppendedText ( )

Returns the appended text
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Annotations::BaseOrdinateDimensionBuilder::AutoAssociativities ( )

Returns the auto ordinate associativities
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::OrdinateBaselineBuilder* NXOpen::Annotations::BaseOrdinateDimensionBuilder::Baseline ( )

Returns the baseline
Created in NX9.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Annotations::BaseOrdinateDimensionBuilder::HorizontalInferredMarginLocation ( )

Returns the horizontal inferred margin location
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseOrdinateDimensionBuilder::Inherit ( )

Returns the inherit
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseOrdinateDimensionBuilder::OrdinateOrigin ( )

Returns the ordinate origin
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::BaseOrdinateDimensionBuilder::Origin ( )

Returns the origin
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseOrdinateDimensionBuilder::RespositionExisting ( )

Returns the resposition existing
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseOrdinateDimensionBuilder::SecondAssociativities ( )

Returns the second associativities
Created in NX9.0.0.

License requirements : None

void NXOpen::Annotations::BaseOrdinateDimensionBuilder::SetActiveHorizontalMargin ( NXOpen::Annotations::OrdinateMargin * margin )

Sets the active horizontal margin(defined or inferred) where horizontal dimension will be automatically placed.

       A margin can be created using @link OrdinateMarginCollection OrdinateMarginCollection@endlink .
       If NULL, must set a HorizontalInferredMarginLocation which will be used to place dimension

Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

margin margin

void NXOpen::Annotations::BaseOrdinateDimensionBuilder::SetActiveVerticalMargin ( NXOpen::Annotations::OrdinateMargin * margin )

Sets the active vertical margin(defined or inferred) where horizontal dimension will be automatically placed.

        A margin can be created using @link OrdinateMarginCollection OrdinateMarginCollection@endlink .
       If NULL, must set a VerticalInferredMarginLocation which will be used to place dimension

Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

margin margin

void NXOpen::Annotations::BaseOrdinateDimensionBuilder::SetAllowDuplicates ( bool allowDuplicates )

Sets the allow duplicates
Created in NX9.0.0.
