Represents a WedmOperation Builder
To create a new instance of this class, use CAM::OperationCollection::CreateWedmOperationBuilder

Created in NX7.5.0. More...

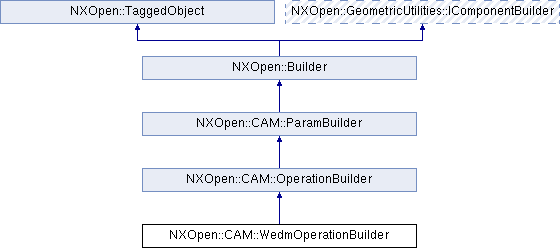

Inheritance diagram for NXOpen::CAM::WedmOperationBuilder:

Public Types
enum	BackburnPassesTypes { BackburnPassesTypesSingle, BackburnPassesTypesMultipleRegionFirst, BackburnPassesTypesMultipleCutoffFirst }
	the types available for wedm backburn passes Created in NX7.5.0. More...

enum	ConvexCornerTypes { ConvexCornerTypesRollAround, ConvexCornerTypesLoops, ConvexCornerTypesExtendAndTrim }
	the types available for convex corner control Created in NX7.5.0. More...

enum	CornerSmoothingType { CornerSmoothingTypeNone, CornerSmoothingTypeAllPasses }
	the types available for corner smoothing Created in NX7.5.0. More...

enum	InPathUdeSetTypes { InPathUdeSetTypesStart = 1, InPathUdeSetTypesEnd }
	Represents the in path ude set type Created in NX7.5.0. More...

enum	SmoothLeadInTypes { SmoothLeadInTypesNone, SmoothLeadInTypesSpecify }
	the types available for smooth_lead_in Created in NX7.5.0. More...

enum	SmoothLeadOutTypes { SmoothLeadOutTypesNone, SmoothLeadOutTypesSpecify }
	the types available for smooth_lead_out_types Created in NX7.5.0. More...

enum	StopPointFlagTypes { StopPointFlagTypesNone, StopPointFlagTypesSpecify }
	the types available for wedm stop point Created in NX7.5.0. More...

enum	StopPointTypes { StopPointTypesOpstop, StopPointTypesStop }
	the types available for wedm stop point Created in NX7.5.0. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXString	ApiExitName ()
	Returns the api exit name Created in NX8.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	BackburnDistanceBuilder ()
	Returns the backburn_distance builder Created in NX7.5.0.

int	BackburnFlag ()
	Returns the Rough and Backburn Flag Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::BackburnPassesTypes	BackburnPasses ()
	Returns the Backburn Passes Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::ConvexCornerTypes	ConvexCorner ()
	Returns the convex_corner Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	CornerMaximumAngleBuilder ()
	Returns the corner_maximum_angle builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	CornerMinimumAngleBuilder ()
	Returns the corner_minimum_angle builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	CornerRadiusBuilder ()
	Returns the corner_radius builder Created in NX7.5.0.

NXOpen::CAM::WedmCustomBoundaryDataBuilderList *	CustomBoundaryDataList ()
	Returns the custom boundary data list Created in NX8.0.1.

NXOpen::CAM::InheritableDoubleBuilder *	CutoffDistanceBuilder ()
	Returns the cutoff_distance builder Created in NX7.5.0.

int	CutoffFlag ()
	Returns the Cutoff Flag Created in NX7.5.0.

NXOpen::CAM::InheritableIntBuilder *	CutoffFlagBuilder ()
	Returns the cutoff_flag builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	CutoffStockBuilder ()
	Returns the cutoff_stock builder Created in NX7.5.0.

NXOpen::CAM::WedmCutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX7.5.0.

NXOpen::CAM::CutPatternBuilder *	CutPattern ()
	Returns the cut pattern Created in NX7.5.0.

void	ExecuteApiExit ()
	Execute api exit Created in NX8.5.0.

NXOpen::CAM::InheritableIntBuilder *	FinishPassesBuilder ()
	Returns the finish_passes builder Created in NX7.5.0.

NXOpen::CAM::InPathEventSetData *	GetInPathEventSetData (int passNumber, NXOpen::CAM::WedmOperationBuilder::InPathUdeSetTypes inPathEventType)
	Returns the in path event data.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the Save Layer/Layout builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	LeadInCircleAngleBuilder ()
	Returns the lead_in_circle_angle_builder Created in NX7.5.0.

NXOpen::CAM::WedmPointDefinitionBuilder *	LeadInPointBuilder ()
	Returns the lead_in_point Builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	LeadInRadiusBuilder ()
	Returns the lead_in_radius_builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	LeadOutCircleAngleBuilder ()
	Returns the lead_out_circle_angle_builder Created in NX7.5.0.

NXOpen::CAM::WedmPointDefinitionBuilder *	LeadOutPointBuilder ()
	Returns the lead_out_point Builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	LeadOutRadiusBuilder ()
	Returns the lead_out_radius_builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	LoopRadius ()
	Returns the loop radius Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	MaximumLoopAngle ()
	Returns the maximum loop angle Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	MinimumLoopAngle ()
	Returns the minimum loop angle Created in NX7.5.0.

NXOpen::CAM::NcmWedmBuilder *	NcmWedmBuilder ()
	Returns the non-cutting builder Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	NocoreStockBuilder ()
	Returns the nocore_stock builder Created in NX7.5.0.

int	NumTabs ()
	Returns the Tab Points Created in NX7.5.0.

int	RegionMethod ()
	Returns the Tab Points Region Method Created in NX7.5.0.

NXOpen::CAM::WedmPointDefinitionBuilder *	RetractPointBuilder ()
	Returns the retract_point Builder Created in NX7.5.0.

NXOpen::CAM::InheritableIntBuilder *	RoughPassesBuilder ()
	Returns the rough_passes builder Created in NX7.5.0.

void	SetApiExitName (const NXString &exitName)
	Sets the api exit name Created in NX8.5.0.

void	SetApiExitName (const char *exitName)
	Sets the api exit name Created in NX8.5.0.

void	SetBackburnFlag (int backburnFlag)
	Sets the Rough and Backburn Flag Created in NX7.5.0.

void	SetBackburnPasses (NXOpen::CAM::WedmOperationBuilder::BackburnPassesTypes backburnPasses)
	Sets the Backburn Passes Created in NX7.5.0.

void	SetConvexCorner (NXOpen::CAM::WedmOperationBuilder::ConvexCornerTypes convexCorner)
	Sets the convex_corner Created in NX7.5.0.

void	SetCutoffFlag (int cutoffFlag)
	Sets the Cutoff Flag Created in NX7.5.0.

void	SetNumTabs (int numTabs)
	Sets the Tab Points Created in NX7.5.0.

void	SetRegionMethod (int regionMethod)
	Sets the Tab Points Region Method Created in NX7.5.0.

void	SetSmoothing (NXOpen::CAM::WedmOperationBuilder::CornerSmoothingType smoothing)
	Sets the smoothing Created in NX7.5.0.

void	SetSmoothLeadInOption (NXOpen::CAM::WedmOperationBuilder::SmoothLeadInTypes leadInFlag)
	Sets the Smooth Leadin Flag Created in NX7.5.0.

void	SetSmoothLeadOutOption (NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutTypes leadOutOption)
	Sets the Smooth Leadout Flag Created in NX7.5.0.

void	SetStopPointFlag (NXOpen::CAM::WedmOperationBuilder::StopPointFlagTypes stopPointFlag)
	Sets the Stop Point Flag Created in NX7.5.0.

void	SetStopPointType (NXOpen::CAM::WedmOperationBuilder::StopPointTypes stopPointType)
	Sets the Stop Point Type Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::CornerSmoothingType	Smoothing ()
	Returns the smoothing Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	SmoothLeadInDistanceBuilder ()
	Returns the smooth_lead_in_distance builder Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::SmoothLeadInTypes	SmoothLeadInOption ()
	Returns the Smooth Leadin Flag Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	SmoothLeadOutDistanceBuilder ()
	Returns the smooth_lead_out_distance builder Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutTypes	SmoothLeadOutOption ()
	Returns the Smooth Leadout Flag Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	StopPointDistanceBuilder ()
	Returns the stop_point_distance builder Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::StopPointFlagTypes	StopPointFlag ()
	Returns the Stop Point Flag Created in NX7.5.0.

NXOpen::CAM::WedmOperationBuilder::StopPointTypes	StopPointType ()
	Returns the Stop Point Type Created in NX7.5.0.

NXOpen::CAM::WedmPointDefinitionBuilder *	ThreadHolePointBuilder ()
	Returns the thread_hole_point Builder Created in NX7.5.0.

NXOpen::CAM::WedmArcOutputTypeCiBuilder *	WedmArcOutputTypeCiBuilder ()
	Returns the wedm arc output type Builder Created in NX7.5.0.

NXOpen::CAM::WedmStatusControlCiBuilder *	WedmStatusControlCiBuilder ()
	Returns the wedm status control ci Builder Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a WedmOperation Builder
To create a new instance of this class, use CAM::OperationCollection::CreateWedmOperationBuilder

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAM::WedmOperationBuilder::BackburnPassesTypes

the types available for wedm backburn passes
Created in NX7.5.0.

Enumerator:

BackburnPassesTypesSingle	single backburn pass
BackburnPassesTypesMultipleRegionFirst	multiple backburn passes - region first
BackburnPassesTypesMultipleCutoffFirst	multiple backburn passes - cutoff first

enum NXOpen::CAM::WedmOperationBuilder::ConvexCornerTypes

the types available for convex corner control
Created in NX7.5.0.

Enumerator:

ConvexCornerTypesRollAround	roll around
ConvexCornerTypesLoops	loop
ConvexCornerTypesExtendAndTrim	extend tangents

enum NXOpen::CAM::WedmOperationBuilder::CornerSmoothingType

the types available for corner smoothing
Created in NX7.5.0.

Enumerator:

CornerSmoothingTypeNone	none
CornerSmoothingTypeAllPasses	all passes

enum NXOpen::CAM::WedmOperationBuilder::InPathUdeSetTypes

Represents the in path ude set type
Created in NX7.5.0.

Enumerator:

InPathUdeSetTypesEnd

in path ude set at end

enum NXOpen::CAM::WedmOperationBuilder::SmoothLeadInTypes

the types available for smooth_lead_in
Created in NX7.5.0.

Enumerator:

SmoothLeadInTypesNone	smooth leadin type none
SmoothLeadInTypesSpecify	smooth leadin type specify

enum NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutTypes

the types available for smooth_lead_out_types
Created in NX7.5.0.

Enumerator:

SmoothLeadOutTypesNone	smooth leadin type none
SmoothLeadOutTypesSpecify	smooth leadin type specify

enum NXOpen::CAM::WedmOperationBuilder::StopPointFlagTypes

the types available for wedm stop point
Created in NX7.5.0.

Enumerator:

StopPointFlagTypesNone	stop point option none
StopPointFlagTypesSpecify	stop point option specify

enum NXOpen::CAM::WedmOperationBuilder::StopPointTypes

the types available for wedm stop point
Created in NX7.5.0.

Enumerator:

StopPointTypesOpstop	stop point option opstop
StopPointTypesStop	stop point option stop

Member Function Documentation

NXString NXOpen::CAM::WedmOperationBuilder::ApiExitName ( )

Returns the api exit name
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::BackburnDistanceBuilder ( )

Returns the backburn_distance builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

int NXOpen::CAM::WedmOperationBuilder::BackburnFlag ( )

Returns the Rough and Backburn Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::BackburnPassesTypes NXOpen::CAM::WedmOperationBuilder::BackburnPasses ( )

Returns the Backburn Passes
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::ConvexCornerTypes NXOpen::CAM::WedmOperationBuilder::ConvexCorner ( )

Returns the convex_corner
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::CornerMaximumAngleBuilder ( )

Returns the corner_maximum_angle builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::CornerMinimumAngleBuilder ( )

Returns the corner_minimum_angle builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::CornerRadiusBuilder ( )

Returns the corner_radius builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmCustomBoundaryDataBuilderList* NXOpen::CAM::WedmOperationBuilder::CustomBoundaryDataList ( )

Returns the custom boundary data list
Created in NX8.0.1.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::CutoffDistanceBuilder ( )

Returns the cutoff_distance builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

int NXOpen::CAM::WedmOperationBuilder::CutoffFlag ( )

Returns the Cutoff Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::WedmOperationBuilder::CutoffFlagBuilder ( )

Returns the cutoff_flag builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::CutoffStockBuilder ( )

Returns the cutoff_stock builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmCutParameters* NXOpen::CAM::WedmOperationBuilder::CutParameters ( )

Returns the cut parameter object
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::CutPatternBuilder* NXOpen::CAM::WedmOperationBuilder::CutPattern ( )

Returns the cut pattern
Created in NX7.5.0.

License requirements : None

void NXOpen::CAM::WedmOperationBuilder::ExecuteApiExit ( )

Execute api exit
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::WedmOperationBuilder::FinishPassesBuilder ( )

Returns the finish_passes builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InPathEventSetData* NXOpen::CAM::WedmOperationBuilder::GetInPathEventSetData	(	int	passNumber,
		NXOpen::CAM::WedmOperationBuilder::InPathUdeSetTypes	inPathEventType
	)

Returns the in path event data.

Returns: the InPathEventSetData builder
Created in NX7.5.0.

License requirements : None

Parameters

passNumber	the pass number
inPathEventType	in path ude set type

NXOpen::CAM::LayoutCiBuilder* NXOpen::CAM::WedmOperationBuilder::LayoutCiBuilder ( )

Returns the Save Layer/Layout builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::LeadInCircleAngleBuilder ( )

Returns the lead_in_circle_angle_builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmPointDefinitionBuilder* NXOpen::CAM::WedmOperationBuilder::LeadInPointBuilder ( )

Returns the lead_in_point Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::LeadInRadiusBuilder ( )

Returns the lead_in_radius_builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::LeadOutCircleAngleBuilder ( )

Returns the lead_out_circle_angle_builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmPointDefinitionBuilder* NXOpen::CAM::WedmOperationBuilder::LeadOutPointBuilder ( )

Returns the lead_out_point Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::LeadOutRadiusBuilder ( )

Returns the lead_out_radius_builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::LoopRadius ( )

Returns the loop radius
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::MaximumLoopAngle ( )

Returns the maximum loop angle
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::MinimumLoopAngle ( )

Returns the minimum loop angle
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::NcmWedmBuilder* NXOpen::CAM::WedmOperationBuilder::NcmWedmBuilder ( )

Returns the non-cutting builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::NocoreStockBuilder ( )

Returns the nocore_stock builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

int NXOpen::CAM::WedmOperationBuilder::NumTabs ( )

Returns the Tab Points
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

int NXOpen::CAM::WedmOperationBuilder::RegionMethod ( )

Returns the Tab Points Region Method
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmPointDefinitionBuilder* NXOpen::CAM::WedmOperationBuilder::RetractPointBuilder ( )

Returns the retract_point Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::WedmOperationBuilder::RoughPassesBuilder ( )

Returns the rough_passes builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::WedmOperationBuilder::SetApiExitName ( const NXString & exitName )

Sets the api exit name
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

exitName the api exit name

void NXOpen::CAM::WedmOperationBuilder::SetApiExitName ( const char * exitName )

Sets the api exit name
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

exitName the api exit name

void NXOpen::CAM::WedmOperationBuilder::SetBackburnFlag ( int backburnFlag )

Sets the Rough and Backburn Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

backburnFlag the Backburn Flag

void NXOpen::CAM::WedmOperationBuilder::SetBackburnPasses ( NXOpen::CAM::WedmOperationBuilder::BackburnPassesTypes backburnPasses )

Sets the Backburn Passes
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

backburnPasses the Backburn Passes

void NXOpen::CAM::WedmOperationBuilder::SetConvexCorner ( NXOpen::CAM::WedmOperationBuilder::ConvexCornerTypes convexCorner )

Sets the convex_corner
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

convexCorner the cutcom_reg

void NXOpen::CAM::WedmOperationBuilder::SetCutoffFlag ( int cutoffFlag )

Sets the Cutoff Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

cutoffFlag the Cutoff Flag

void NXOpen::CAM::WedmOperationBuilder::SetNumTabs ( int numTabs )

Sets the Tab Points
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

numTabs the Num Tabs

void NXOpen::CAM::WedmOperationBuilder::SetRegionMethod ( int regionMethod )

Sets the Tab Points Region Method
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

regionMethod the Tab Points Region Method

void NXOpen::CAM::WedmOperationBuilder::SetSmoothing ( NXOpen::CAM::WedmOperationBuilder::CornerSmoothingType smoothing )

Sets the smoothing
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

smoothing the smoothing

void NXOpen::CAM::WedmOperationBuilder::SetSmoothLeadInOption ( NXOpen::CAM::WedmOperationBuilder::SmoothLeadInTypes leadInFlag )

Sets the Smooth Leadin Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

leadInFlag the Smooth Leadin Flag

void NXOpen::CAM::WedmOperationBuilder::SetSmoothLeadOutOption ( NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutTypes leadOutOption )

Sets the Smooth Leadout Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

leadOutOption the Smooth Leadout Flag

void NXOpen::CAM::WedmOperationBuilder::SetStopPointFlag ( NXOpen::CAM::WedmOperationBuilder::StopPointFlagTypes stopPointFlag )

Sets the Stop Point Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

stopPointFlag the Stop Point Flag

void NXOpen::CAM::WedmOperationBuilder::SetStopPointType ( NXOpen::CAM::WedmOperationBuilder::StopPointTypes stopPointType )

Sets the Stop Point Type
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

stopPointType the Stop Point Type

NXOpen::CAM::WedmOperationBuilder::CornerSmoothingType NXOpen::CAM::WedmOperationBuilder::Smoothing ( )

Returns the smoothing
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::SmoothLeadInDistanceBuilder ( )

Returns the smooth_lead_in_distance builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::SmoothLeadInTypes NXOpen::CAM::WedmOperationBuilder::SmoothLeadInOption ( )

Returns the Smooth Leadin Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutDistanceBuilder ( )

Returns the smooth_lead_out_distance builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutTypes NXOpen::CAM::WedmOperationBuilder::SmoothLeadOutOption ( )

Returns the Smooth Leadout Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WedmOperationBuilder::StopPointDistanceBuilder ( )

Returns the stop_point_distance builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::StopPointFlagTypes NXOpen::CAM::WedmOperationBuilder::StopPointFlag ( )

Returns the Stop Point Flag
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmOperationBuilder::StopPointTypes NXOpen::CAM::WedmOperationBuilder::StopPointType ( )

Returns the Stop Point Type
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmPointDefinitionBuilder* NXOpen::CAM::WedmOperationBuilder::ThreadHolePointBuilder ( )

Returns the thread_hole_point Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmArcOutputTypeCiBuilder* NXOpen::CAM::WedmOperationBuilder::WedmArcOutputTypeCiBuilder ( )

Returns the wedm arc output type Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::WedmStatusControlCiBuilder* NXOpen::CAM::WedmOperationBuilder::WedmStatusControlCiBuilder ( )

Returns the wedm status control ci Builder
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

The documentation for this class was generated from the following file:

CAM_WedmOperationBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
