Represents a UserDefinedOpr Builder
This is an abstract class, and cannot be instantiated.
More...

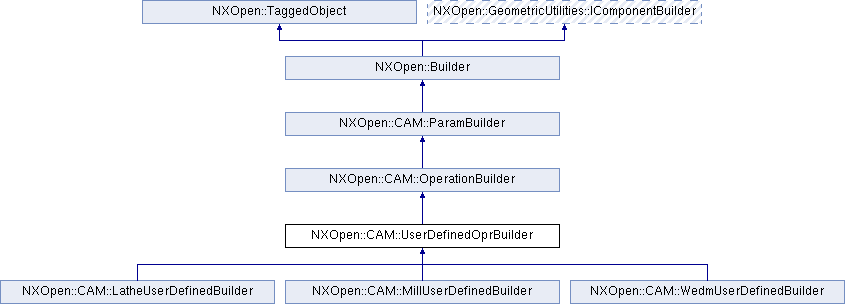

Inheritance diagram for NXOpen::CAM::UserDefinedOprBuilder:
Public Member Functions | |
| NXString | EnvVarName () |
| Returns the name Created in NX5.0.0. | |
| void | SetEnvVarName (const NXString &varName) |
| Sets the name Created in NX5.0.0. | |
| void | SetEnvVarName (const char *varName) |
| Sets the name Created in NX5.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::OperationBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | EndOfPath () |
| Returns the end event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| NXOpen::CAM::GeometryCiBuilder * | Geometry () |
| Returns the geometry builder Created in NX5.0.0. | |
| std::vector< double > | GetHoleAxisValues () |
| Get the Hole Axis values. | |
| bool | GougeChecking () |
| Returns the gouge checking flag Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleAxisTypes | HoleAxisType () |
| Returns the Hole Axis Type Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | HoleDepth () |
| Returns the max depth distance builder Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleDepthTypes | HoleDepthType () |
| Returns the Hole Depth Type Created in NX5.0.0. | |
| NXOpen::CAM::ArcOutputTypeCiBuilder * | MotionOutputBuilder () |
| Returns the motion output builder Created in NX8.0.0. | |
| NXOpen::CAM::Notes * | Notes () |
| Returns the notes builder Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes | OptimizationBasedOn () |
| Returns the optimization based on in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes | OptimizationDistanceMethod () |
| Returns the optimization distance method in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationLevelTypes | OptimizationLevel () |
| Returns the optimization level in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationDisplayOptionsBuilder * | PathDisplayOptions () |
| Returns the path display options builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistance () |
| Returns the Retract Distance builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistanceOnToolAxisChange () |
| Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | SafeClearance () |
| Returns the safe clearance builder Created in NX6.0.0. | |
| bool | SelectToolFlag () |
| Returns the user selected tool Created in NX5.0.0. | |
| void | SetChannelName (const NXString &channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| void | SetGougeChecking (bool gougeChecking) |
| Sets the gouge checking flag Created in NX9.0.0. | |
| void | SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types) |
| Sets the Hole Axis Type Created in NX5.0.0. | |
| void | SetHoleAxisValues (const std::vector< double > &holeAxis) |
| Set the Hole Axis values Created in NX5.0.0. | |
| void | SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types) |
| Sets the Hole Depth Type Created in NX5.0.0. | |
| void | SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn) |
| Sets the optimization based on in operation Created in NX5.0.0. | |
| void | SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance) |
| Sets the optimization distance method in operation Created in NX5.0.0. | |
| void | SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType) |
| Sets the optimization level in operation Created in NX5.0.0. | |
| void | SetSelectToolFlag (bool selToolFlag) |
| Sets the user selected tool Created in NX5.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | StartOfPath () |
| Returns the start event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| NXOpen::CAM::ToolChangeCiBuilder * | ToolChangeSetting () |
| Returns the tool change builder Created in NX5.0.0. | |
| NXOpen::CAM::ToolPathSplitParametersBuilder * | ToolPathSplitParametersBuilder () |
| Returns the tool path split Parameters Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::OperationBuilder | |
| enum | HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector } |
| Available types for Hole Axis Type in feature milling and hole making. More... | |
| enum | HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule } |
| Available types for Hole Depth Type in feature milling and hole making. More... | |
| enum | OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient } |
| Available types for optimization based on in operation. More... | |
| enum | OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition } |
| Available types for optimization distance method in operation. More... | |
| enum | OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced } |
| Available types for optimization level in operation. More... | |
Detailed Description
Represents a UserDefinedOpr Builder
This is an abstract class, and cannot be instantiated.
Created in NX5.0.0.
Member Function Documentation
| NXString NXOpen::CAM::UserDefinedOprBuilder::EnvVarName | ( | ) |
Returns the name
Created in NX5.0.0.
License requirements : None
| void NXOpen::CAM::UserDefinedOprBuilder::SetEnvVarName | ( | const NXString & | varName | ) |
Sets the name
Created in NX5.0.0.
License requirements : None
- Parameters
-
varName the variable name
| void NXOpen::CAM::UserDefinedOprBuilder::SetEnvVarName | ( | const char * | varName | ) |
Sets the name
Created in NX5.0.0.
License requirements : None
- Parameters
-
varName the variable name
The documentation for this class was generated from the following file:
- CAM_UserDefinedOprBuilder.hxx
