Represents a FinishTurning Builder
To create a new instance of this class, use CAM::OperationCollection::CreateFinishTurningBuilder

Created in NX6.0.0. More...

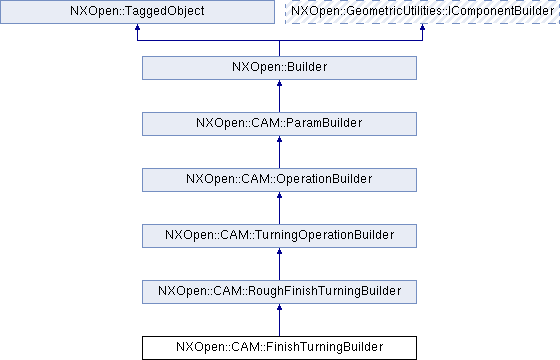

Inheritance diagram for NXOpen::CAM::FinishTurningBuilder:

Public Member Functions
NXOpen::CAM::NcmTurnRoughFinishBuilder *	NonCuttingBuilder ()
	Returns the non-cutting builder Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::RoughFinishTurningBuilder
NXOpen::CAM::TrimPlane *	AxialTrimPlane1 ()
	Returns the axial trim plane 1 Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	AxialTrimPlane2 ()
	Returns the axial trim plane 2 Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::CustomMemberDataTypes	CustomMemberData ()
	Returns the Custom Member Data type Created in NX6.0.0.

double	CustomMemberDataDistance ()
	Returns the Custom Member Data Distance Created in NX6.0.0.

NXOpen::CAM::TurnCutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::CutRegionsTypes	CutRegions ()
	Returns the Cut regions type Created in NX6.0.0.

double	EndAngle ()
	Returns the end angle Created in NX6.0.0.

double	EndOffset ()
	Returns the end offset Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::ExtendModeTypes	ExtendMode ()
	Returns the Extend Mode Created in NX6.0.0.

bool	IgnoreMinimumBoringDiameter ()
	Returns the Ignore Minimum Boring Diameter toggle Created in NX6.0.0.

NXOpen::CAM::CutAngle *	LevelAngleBuilder ()
	Returns the Level Angle Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::MaximumAreaModes	MaximumAreaMode ()
	Returns the Maximum Area mode Created in NX7.5.0.

double	MaximumAreaSize ()
	Returns the Maximum Area Size Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::MinmaxAreaUnits	MaximumAreaUnit ()
	Returns the Maximum Area Unit Created in NX7.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	MaximumSizeAxial ()
	Returns the Maximum Size Axial Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::MinmaxSizeModes	MaximumSizeMode ()
	Returns the Maximum Size Mode Created in NX7.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	MaximumSizeRadial ()
	Returns the Maximum Size Radial Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::MinimumAreaTypes	MinimumArea ()
	Returns the Minimum Area type Created in NX6.0.0.

double	MinimumAreaSize ()
	Returns the Minimum Area Size Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::MinmaxAreaUnits	MinimumAreaUnit ()
	Returns the Minimum Area Unit Created in NX7.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	MinimumSizeAxial ()
	Returns the Minimum Size Axial Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::MinmaxSizeModes	MinimumSizeMode ()
	Returns the Minimum Size Mode Created in NX7.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	MinimumSizeRadial ()
	Returns the Minimum Size Radial Created in NX7.5.0.

bool	OmitReversals ()
	Returns the Omit Reversals toggle Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	RadialTrimPlane1 ()
	Returns the radial trim plane 1 Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	RadialTrimPlane2 ()
	Returns the radial trim plane 2 Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::RegionMachiningTypes	RegionMachining ()
	Returns the Region Machining type Created in NX6.0.0.

NXOpen::CAM::RoughFinishTurningBuilder::RegionSelectionTypes	RegionSelection ()
	Returns the Region Selection type Created in NX6.0.0.

NXOpen::Point *	RegionSelectionPoint ()
	Returns the Region Selection Point Created in NX6.0.0.

void	SetCustomMemberData (NXOpen::CAM::RoughFinishTurningBuilder::CustomMemberDataTypes surfaceSensitivityMode)
	Sets the Custom Member Data type Created in NX6.0.0.

void	SetCustomMemberDataDistance (double surfaceSensitivityTolerance)
	Sets the Custom Member Data Distance Created in NX6.0.0.

void	SetCutRegions (NXOpen::CAM::RoughFinishTurningBuilder::CutRegionsTypes multipleCutRegions)
	Sets the Cut regions type Created in NX6.0.0.

void	SetEndAngle (double endAngle)
	Sets the end angle Created in NX6.0.0.

void	SetEndOffset (double endOffset)
	Sets the end offset Created in NX6.0.0.

void	SetExtendMode (NXOpen::CAM::RoughFinishTurningBuilder::ExtendModeTypes tangentialStartEndExtension)
	Sets the Extend Mode Created in NX6.0.0.

void	SetIgnoreMinimumBoringDiameter (bool ignoreMinBoringDia)
	Sets the Ignore Minimum Boring Diameter toggle Created in NX6.0.0.

void	SetMaximumAreaMode (NXOpen::CAM::RoughFinishTurningBuilder::MaximumAreaModes maximumAreaMode)
	Sets the Maximum Area mode Created in NX7.5.0.

void	SetMaximumAreaSize (double maxSize)
	Sets the Maximum Area Size Created in NX7.5.0.

void	SetMaximumAreaUnit (NXOpen::CAM::RoughFinishTurningBuilder::MinmaxAreaUnits maxAreaUnit)
	Sets the Maximum Area Unit Created in NX7.5.0.

void	SetMaximumSizeMode (NXOpen::CAM::RoughFinishTurningBuilder::MinmaxSizeModes maximumSizeMode)
	Sets the Maximum Size Mode Created in NX7.5.0.

void	SetMinimumArea (NXOpen::CAM::RoughFinishTurningBuilder::MinimumAreaTypes minimumAreaActive)
	Sets the Minimum Area type Created in NX6.0.0.

void	SetMinimumAreaSize (double minArea)
	Sets the Minimum Area Size Created in NX6.0.0.

void	SetMinimumAreaUnit (NXOpen::CAM::RoughFinishTurningBuilder::MinmaxAreaUnits minAreaUnit)
	Sets the Minimum Area Unit Created in NX7.5.0.

void	SetMinimumSizeMode (NXOpen::CAM::RoughFinishTurningBuilder::MinmaxSizeModes minimumSizeMode)
	Sets the Minimum Size Mode Created in NX7.5.0.

void	SetOmitReversals (bool omitReversals)
	Sets the Omit Reversals toggle Created in NX6.0.0.

void	SetRegionMachining (NXOpen::CAM::RoughFinishTurningBuilder::RegionMachiningTypes regionMachining)
	Sets the Region Machining type Created in NX6.0.0.

void	SetRegionSelection (NXOpen::CAM::RoughFinishTurningBuilder::RegionSelectionTypes cutRegionSelectionMode)
	Sets the Region Selection type Created in NX6.0.0.

void	SetRegionSelectionPoint (NXOpen::Point *cutRegionSelectionPoint)
	Sets the Region Selection Point Created in NX6.0.0.

void	SetStartAngle (double startAngle)
	Sets the start angle Created in NX6.0.0.

void	SetStartOffset (double startOffset)
	Sets the Start Offset Created in NX6.0.0.

void	SetToleranceOffset (NXOpen::CAM::RoughFinishTurningBuilder::ToleranceOffsetTypes toleranceOffsetMode)
	Sets the Tolerance Offset type Created in NX6.0.0.

double	StartAngle ()
	Returns the start angle Created in NX6.0.0.

double	StartOffset ()
	Returns the Start Offset Created in NX6.0.0.

NXOpen::CAM::CutAngle *	StepAngleBuilder ()
	Returns the Step Angle Created in NX7.5.0.

NXOpen::CAM::RoughFinishTurningBuilder::ToleranceOffsetTypes	ToleranceOffset ()
	Returns the Tolerance Offset type Created in NX6.0.0.

NXOpen::CAM::TrimPoint *	TrimPoint1 ()
	Returns the trim point 1 Created in NX6.0.0.

NXOpen::CAM::TrimPoint *	TrimPoint2 ()
	Returns the trim point 2 Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::TurningOperationBuilder
NXString	AdditionalCommands ()
	Returns the Additional Commands Created in NX6.0.0.

NXOpen::CAM::FeedsTurnBuilder *	FeedsBuilder ()
	Returns the feeds and speeds builder Created in NX6.0.0.

bool	FlipToolAroundHolder ()
	Returns the Flip Tool Around Holder toggle Created in NX6.0.0.

NXOpen::CAM::LayoutCiBuilder *	LayoutAndLayer ()
	Returns the Layer and Layout Created in NX6.0.0.

NXString	MachineCycleSubroutineName ()
	Returns the machine cycle subroutine name Created in NX8.0.0.

NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions	MotionOutput ()
	Returns the motion output Created in NX6.0.0.

bool	ReorientToolHolder ()
	Returns the Reorient Tool Holder toggle Created in NX6.0.0.

bool	RotateTrackingPoint ()
	Returns the Rotate Tracking Point toggle

void	SetAdditionalCommands (const NXString &additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetAdditionalCommands (const char *additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetFlipToolAroundHolder (bool machAAxis)
	Sets the Flip Tool Around Holder toggle Created in NX6.0.0.

void	SetMachineCycleSubroutineName (const NXString &machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMachineCycleSubroutineName (const char *machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMotionOutput (NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions motionOutput)
	Sets the motion output Created in NX6.0.0.

void	SetReorientToolHolder (bool reorient)
	Sets the Reorient Tool Holder toggle Created in NX6.0.0.

void	SetRotateTrackingPoint (bool rotate)
	Sets the Rotate Tracking Point toggle

void	SetTrackingPointStatus (NXOpen::CAM::TurningOperationBuilder::TrackingPointType status)
	Sets the tracking point status Created in NX8.5.0.

void	SetUpdateIpw (bool updateIpwMode)
	Sets the update IPW mode Created in NX6.0.0.

void	SetUseMachineCycle (bool machineCycle)
	Sets the Use Machine Cycle toggle Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	ToolHolderAngle ()
	Returns the Tool Holder Angle Created in NX6.0.0.

NXOpen::CAM::TurningOperationBuilder::TrackingPointType	TrackingPointStatus ()
	Returns the tracking point status Created in NX8.5.0.

bool	UpdateIpw ()
	Returns the update IPW mode Created in NX6.0.0.

bool	UseMachineCycle ()
	Returns the Use Machine Cycle toggle Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::RoughFinishTurningBuilder
enum	CustomMemberDataTypes { CustomMemberDataTypesWithinRegion, CustomMemberDataTypesWithinDistance }
	the Custom Member Data types Created in NX6.0.0. More...

enum	CutRegionsTypes { CutRegionsTypesSingleRegion, CutRegionsTypesSingleDirection, CutRegionsTypesReverseDirection, CutRegionsTypesBiDirectional, CutRegionsTypesAlternate }
	the Cut regions types Created in NX6.0.0. More...

enum	ExtendModeTypes { ExtendModeTypesSpecify, ExtendModeTypesTagential, ExtendModeTypesTangential = 1 }
	the Extend Mode types Created in NX6.0.0. More...

enum	MaximumAreaModes { MaximumAreaModesNone, MaximumAreaModesPartunit, MaximumAreaModesTool }
	the Maximum Area modes Created in NX7.5.0. More...

enum	MinimumAreaTypes { MinimumAreaTypesNone, MinimumAreaTypesSpecify, MinimumAreaTypesPartunit = 1, MinimumAreaTypesTool }
	the Mininmum Area types Created in NX6.0.0. More...

enum	MinmaxAreaUnits { MinmaxAreaUnitsSquare, MinmaxAreaUnitsPercentage }
	the Minimum/Maximum Area units Created in NX7.5.0. More...

enum	MinmaxSizeModes { MinmaxSizeModesNone, MinmaxSizeModesAxial, MinmaxSizeModesRadial, MinmaxSizeModesAxialAndRadial }
	the Maximum/Maximum Size modes Created in NX7.5.0. More...

enum	MinmaxSizeUnits { MinmaxSizeUnitsLength, MinmaxSizeUnitsPercentage }
	the Minimum/Maximum Size Axial/Radial units Created in NX7.5.0. More...

enum	RegionMachiningTypes { RegionMachiningTypesSingle, RegionMachiningTypesMultiple }
	the Region Machining types Created in NX6.0.0. More...

enum	RegionSelectionTypes { RegionSelectionTypesAutomatic, RegionSelectionTypesManual }
	the Region Selection types More...

enum	ToleranceOffsetTypes { ToleranceOffsetTypesAfterContainment, ToleranceOffsetTypesBeforeContainment }
	the Tolerance Offset types More...

Detailed Description

Represents a FinishTurning Builder
To create a new instance of this class, use CAM::OperationCollection::CreateFinishTurningBuilder

Created in NX6.0.0.

Member Function Documentation

NXOpen::CAM::NcmTurnRoughFinishBuilder* NXOpen::CAM::FinishTurningBuilder::NonCuttingBuilder ( )

Returns the non-cutting builder
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_FinishTurningBuilder.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
