NXOpen::CAM::FeatureMillingBuilder Class Reference

Represents a FeatureMilling Builder
To create a new instance of this class, use CAM::OperationCollection::CreateFeatureMillingBuilder

Created in NX5.0.0. More...

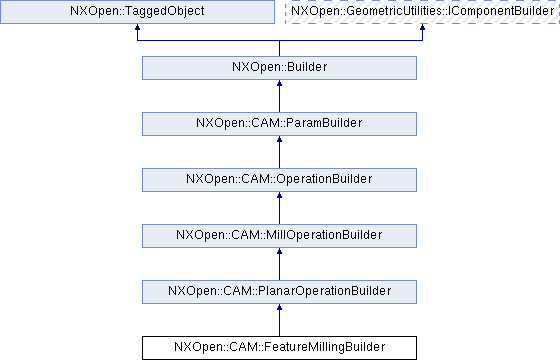

Inheritance diagram for NXOpen::CAM::FeatureMillingBuilder:

Public Types
enum	CutterCompensationTypes { CutterCompensationTypesNone, CutterCompensationTypesEngageRetract, CutterCompensationTypesAgainstWall }
	The available types for cutter compensation method in planar mill operation Created in NX5.0.0. More...
enum	EngAutoRampMethodTypes { EngAutoRampMethodTypesOnLines, EngAutoRampMethodTypesOnLinesAndArcs, EngAutoRampMethodTypesHelicalRamping }
	Available types for Engage Auto Ramp Method in planar mill operation. More...
enum	EngretAutoTypeTypes { EngretAutoTypeTypesLinear, EngretAutoTypeTypesCircular }
	Available types for Engage Retract Auto Type in feature based milling operation. More...
enum	TransferMethodTypes { TransferMethodTypesClearancePlane, TransferMethodTypesPreviousPlane, TransferMethodTypesBlankPlane, TransferMethodTypesDirect }
	Available types for transfer method type in planar mill operation. More...
Public Types inherited from NXOpen::CAM::PlanarOperationBuilder
enum	AutomaticPartBoundaryMethodTypes { AutomaticPartBoundaryMethodTypesFollowWallBottom, AutomaticPartBoundaryMethodTypesFollowWallTop }
	Available types for automatic part boundary method in planar mill operation. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::CAM::PlanarOperationBuilder
int	AdditionalPasses ()
	Returns the Boundary Additional Passes Created in NX5.0.0.
NXOpen::CAM::PlanarOperationBuilder::AutomaticPartBoundaryMethodTypes	AutomaticPartBoundaryMethod ()
	Returns the Automatic Part Boundary Method Created in NX6.0.0.
NXOpen::CAM::StepoverBuilder *	BndStepover ()
	Returns the boundary stepover builder Created in NX5.0.0.
NXOpen::CAM::Geometry *	CheckGeometry ()
	Returns the check geometry builder Created in NX8.0.0.
bool	CornerLoops ()
	Returns the corner loops value Created in NX5.0.0.
NXOpen::CAM::Geometry *	CutAreaGeometry ()
	Returns the cut area geometry builder Created in NX8.0.0.
NXOpen::CAM::CutPatternBuilder *	CutPattern ()
	Returns the cut pattern builder Created in NX6.0.0.
bool	DeferCuttingStatus ()
	Returns the defer cutting status value Created in NX5.0.0.
NXOpen::CAM::InheritableDoubleBuilder *	DepthPerCut ()
	Returns the depth per cut builder (inheritable double) Created in NX5.0.0.
NXOpen::CAM::NcmPlanarBuilder *	NonCuttingBuilder ()
	Returns the non-cutting moves builder Created in NX5.0.0.
NXOpen::CAM::Geometry *	PartGeometry ()
	Returns the part geometry builder Created in NX8.0.0.
void	SetAdditionalPasses (int numPasses)
	Sets the Boundary Additional Passes Created in NX5.0.0.
void	SetAutomaticPartBoundaryMethod (NXOpen::CAM::PlanarOperationBuilder::AutomaticPartBoundaryMethodTypes automaticPartBoundary)
	Sets the Automatic Part Boundary Method Created in NX6.0.0.
void	SetCornerLoops (bool cornerLoops)
	Sets the corner loops value Created in NX5.0.0.
void	SetDeferCuttingStatus (bool deferCuttingStatus)
	Sets the defer cutting status value Created in NX5.0.0.
void	SetToolMinimumLengthUsage (bool toolMinUsage)
	Sets the tool minimum length usage Created in NX5.0.0.
NXOpen::CAM::ToolAxisFixed *	ToolAxisFix ()
	Returns the pmop tool axis ci builder Created in NX7.5.0.
bool	ToolMinimumLengthUsage ()
	Returns the tool minimum length usage Created in NX5.0.0.

Detailed Description

Represents a FeatureMilling Builder
To create a new instance of this class, use CAM::OperationCollection::CreateFeatureMillingBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::FeatureMillingBuilder::CutterCompensationTypes

The available types for cutter compensation method in planar mill operation
Created in NX5.0.0.

Enumerator:

CutterCompensationTypesNone	none
CutterCompensationTypesEngageRetract	engage retract
CutterCompensationTypesAgainstWall	against wall

enum NXOpen::CAM::FeatureMillingBuilder::EngAutoRampMethodTypes

Available types for Engage Auto Ramp Method in planar mill operation.

Enumerator:

EngAutoRampMethodTypesOnLines	On Lines.
EngAutoRampMethodTypesOnLinesAndArcs	On Shape.
EngAutoRampMethodTypesHelicalRamping	Helical.

enum NXOpen::CAM::FeatureMillingBuilder::EngretAutoTypeTypes

Available types for Engage Retract Auto Type in feature based milling operation.

Enumerator:

EngretAutoTypeTypesLinear	Linear.
EngretAutoTypeTypesCircular	Circular.

enum NXOpen::CAM::FeatureMillingBuilder::TransferMethodTypes

Available types for transfer method type in planar mill operation.

Enumerator:

TransferMethodTypesClearancePlane	Clearance Plane.
TransferMethodTypesPreviousPlane	Previous Plane.
TransferMethodTypesBlankPlane	Blank Plane.
TransferMethodTypesDirect	Direct.

---

The documentation for this class was generated from the following file:

• CAM_FeatureMillingBuilder.hxx
