Represents a Engraving Builder
To create a new instance of this class, use CAM::OperationCollection::CreateEngravingBuilder
Created in NX5.0.0.
More...

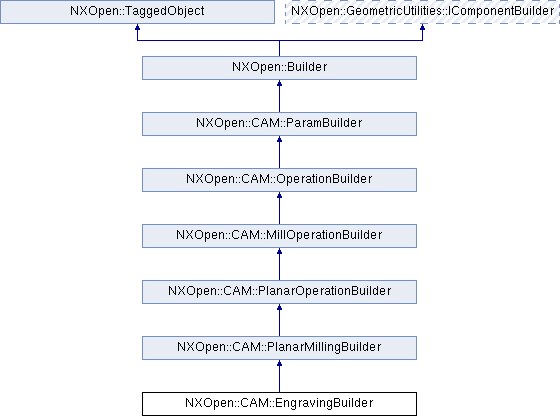

Inheritance diagram for NXOpen::CAM::EngravingBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAM::PlanarOperationBuilder | |
| enum | AutomaticPartBoundaryMethodTypes { AutomaticPartBoundaryMethodTypesFollowWallBottom, AutomaticPartBoundaryMethodTypesFollowWallTop } |
| Available types for automatic part boundary method in planar mill operation. More... | |
| Public Member Functions inherited from NXOpen::CAM::PlanarMillingBuilder | |
| NXOpen::CAM::CutLevelPlanar * | CutLevel () |
| Returns the Planar Mill Cut Level builder Created in NX7.5.0. | |
| int | DrivePoint () |
| Returns the drive point Created in NX5.0.0. | |
| NXOpen::CAM::MultiplePassesBuilder * | MultiplePasses () |
| Returns the Multiple Passes builder Created in NX6.0.0. | |
| bool | Save2dIpw () |
| Returns the Save 2D In-Process Workpiece Created in NX5.0.0. | |
| void | SetDrivePoint (int drivePoint) |
| Sets the drive point Created in NX5.0.0. | |
| void | SetDrivePointSpecified (bool drivePointSpecified) |
| The drive point specified flag Created in NX9.0.0. | |
| void | SetSave2dIpw (bool saveMethod) |
| Sets the Save 2D In-Process Workpiece Created in NX5.0.0. | |
| void | SetZdepthOffset (double offset) |
| Sets the Z-Depth Offset Created in NX5.0.0. | |
| NXOpen::CAM::Geometry * | WallGeometry () |
| Returns the wall geometry builder Created in NX8.0.0. | |
| double | ZdepthOffset () |
| Returns the Z-Depth Offset Created in NX5.0.0. | |
Detailed Description
Represents a Engraving Builder
To create a new instance of this class, use CAM::OperationCollection::CreateEngravingBuilder
Created in NX5.0.0.
The documentation for this class was generated from the following file:
- CAM_EngravingBuilder.hxx
