Represents the manager to CAE::ResponseSimulation::StaticLoadExcitation . More...

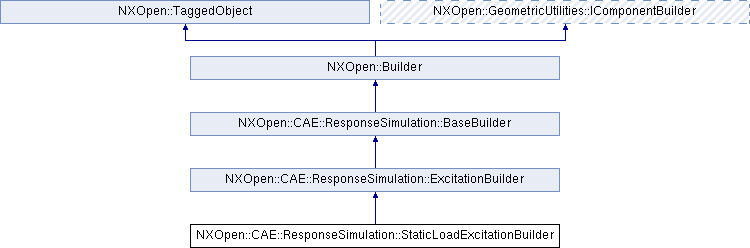

Inheritance diagram for NXOpen::CAE::ResponseSimulation::StaticLoadExcitationBuilder:
Public Member Functions | |
| NXOpen::CAE::ResponseSimulation::FunctionComponentData * | ExcitationFunction () |
| Returns the magnitude function Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder | |
| NXOpen::CAE::ResponseSimulation::RSEvent * | DynamicEvent () |
| Returns the parent dynamic event object Created in NX5.0.0. | |
| NXOpen::CAE::ResponseSimulation::ExcitationLocationDefinition * | ExcitationLocationDefinition () |
| Returns the excitation location definition Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder | |
| NXOpen::CAE::ResponseSimulation::ObjectLabel * | ObjectLabel () |
| Returns the object label Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder | |
| enum | ExcitationLocationType { ExcitationLocationTypeStaticLoad = -2, ExcitationLocationTypeDistributedLoad, ExcitationLocationTypeNodalForce, ExcitationLocationTypeEnforcedMotion } |
| the type of excitation location More... | |
Detailed Description
Represents the manager to CAE::ResponseSimulation::StaticLoadExcitation .
The object of type @link CAE::ResponseSimulation::StaticLoadExcitation CAE::ResponseSimulation::StaticLoadExcitation@endlink can only be created or edited through this class. <br> To create a new instance of this class, use @link CAE::ResponseSimulation::ExcitationCollection::CreateStaticLoadExcitationBuilder CAE::ResponseSimulation::ExcitationCollection::CreateStaticLoadExcitationBuilder @endlink <br>
Created in NX6.0.0.
Member Function Documentation
| NXOpen::CAE::ResponseSimulation::FunctionComponentData* NXOpen::CAE::ResponseSimulation::StaticLoadExcitationBuilder::ExcitationFunction | ( | ) |
Returns the magnitude function
Created in NX6.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
The documentation for this class was generated from the following file:
- CAE_ResponseSimulation_StaticLoadExcitationBuilder.hxx
