Represents a Mechatronics::AdapterFormulaBuilder . More...

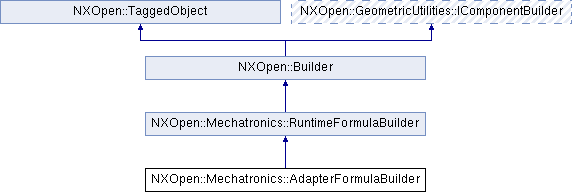

Inheritance diagram for NXOpen::Mechatronics::AdapterFormulaBuilder:
Public Member Functions | |
| NXString | FormulaComment () |
| Returns the formula comment. | |
| void | SetFormulaComment (const NXString &formulaComment) |
| Sets the formula comment. | |
| void | SetFormulaComment (const char *formulaComment) |
| Sets the formula comment. | |
 Public Member Functions inherited from NXOpen::Mechatronics::RuntimeFormulaBuilder | |
| int | DestPropertyId () |
| Returns the dest property id Created in NX8.5.0. | |
| NXString | FormulaName () |
| Returns the formula name Created in NX8.5.0. | |
| NXString | FormulaString () |
| Returns the formula string Created in NX8.5.0. | |
| NXOpen::SelectNXObject * | ObjectToAssignParamSelection () |
| Returns the object to assign param selection Created in NX8.5.0. | |
| NXOpen::Mechatronics::RuntimeFormulaParameterBuilderList * | ParameterBuilderList () |
| Returns the formula parameter list. | |
| NXOpen::SelectNXObjectList * | SelectionInputObject () |
| Returns the inuput object selection Created in NX8.5.0. | |
| void | SetDestPropertyId (int destPropertyId) |
| Sets the dest property id Created in NX8.5.0. | |
| void | SetFormulaName (const NXString &formulaName) |
| Sets the formula name Created in NX8.5.0. | |
| void | SetFormulaName (const char *formulaName) |
| Sets the formula name Created in NX8.5.0. | |
| void | SetFormulaString (const NXString &formulaString) |
| Sets the formula string Created in NX8.5.0. | |
| void | SetFormulaString (const char *formulaString) |
| Sets the formula string Created in NX8.5.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Mechatronics::AdapterFormulaBuilder .
<br> To create a new instance of this class, use @link Mechatronics::AdapterFormulaCollection::CreateAdapterFormulaBuilder Mechatronics::AdapterFormulaCollection::CreateAdapterFormulaBuilder @endlink <br>
Created in NX8.5.0.
Member Function Documentation
| NXString NXOpen::Mechatronics::AdapterFormulaBuilder::FormulaComment | ( | ) |
Returns the formula comment.
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
| void NXOpen::Mechatronics::AdapterFormulaBuilder::SetFormulaComment | ( | const NXString & | formulaComment | ) |
Sets the formula comment.
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
- Parameters
-
formulaComment formulacomment
| void NXOpen::Mechatronics::AdapterFormulaBuilder::SetFormulaComment | ( | const char * | formulaComment | ) |
Sets the formula comment.
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
- Parameters
-
formulaComment formulacomment
The documentation for this class was generated from the following file:
- Mechatronics_AdapterFormulaBuilder.hxx
