Represents a Mechatronics::RuntimeFormulaBuilder . More...

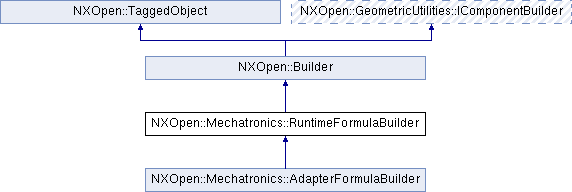

Inheritance diagram for NXOpen::Mechatronics::RuntimeFormulaBuilder:

Public Member Functions
int	DestPropertyId ()
	Returns the dest property id Created in NX8.5.0.

NXString	FormulaName ()
	Returns the formula name Created in NX8.5.0.

NXString	FormulaString ()
	Returns the formula string Created in NX8.5.0.

NXOpen::SelectNXObject *	ObjectToAssignParamSelection ()
	Returns the object to assign param selection Created in NX8.5.0.

NXOpen::Mechatronics::RuntimeFormulaParameterBuilderList *	ParameterBuilderList ()
	Returns the formula parameter list.

NXOpen::SelectNXObjectList *	SelectionInputObject ()
	Returns the inuput object selection Created in NX8.5.0.

void	SetDestPropertyId (int destPropertyId)
	Sets the dest property id Created in NX8.5.0.

void	SetFormulaName (const NXString &formulaName)
	Sets the formula name Created in NX8.5.0.

void	SetFormulaName (const char *formulaName)
	Sets the formula name Created in NX8.5.0.

void	SetFormulaString (const NXString &formulaString)
	Sets the formula string Created in NX8.5.0.

void	SetFormulaString (const char *formulaString)
	Sets the formula string Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::RuntimeFormulaBuilder .

<br> To create a new instance of this class, use @link Mechatronics::RuntimeFormulaCollection::CreateRuntimeFormulaBuilder  Mechatronics::RuntimeFormulaCollection::CreateRuntimeFormulaBuilder @endlink  <br>

Created in NX8.5.0.
