Represents a Features::VehicleDesign::BaseDataLoadingWheelBuilder . More...

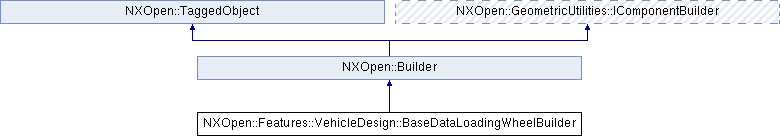

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder:

Public Types
enum	DataDefinitionOptions { DataDefinitionOptionsRelative, DataDefinitionOptionsAbsolute }
	This enum represents the options to define the wheel position. More...

Public Member Functions
double	Camber ()
	Returns the camber of wheel in degree.

double	CoordinateX ()
	Returns the x coordinate of wheel center point.

double	CoordinateY ()
	Returns the y coordinate of wheel center point.

double	CoordinateZ ()
	Returns the z coordinate of wheel center point.

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions	DataDefinition ()
	Returns the value to indicate which definition option will be used to define the loading wheel data.

double	DeltaCamber ()
	Returns the delta camber of wheel.

double	DeltaStaticRadius ()
	Returns the delta static radius of wheel.

double	DeltaToe ()
	Returns the delta toe of wheel.

double	DeltaX ()
	Returns the delta x value of wheel center point.

double	DeltaY ()
	Returns the delta y value of wheel center point.

double	DeltaZ ()
	Returns the delta z value of wheel center point.

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder *	DesignData ()
	Returns the design data of the wheel.

void	SetCamber (double camber)
	Sets the camber of wheel in degree.

void	SetCoordinateX (double absX)
	Sets the x coordinate of wheel center point.

void	SetCoordinateY (double absY)
	Sets the y coordinate of wheel center point.

void	SetCoordinateZ (double absZ)
	Sets the z coordinate of wheel center point.

void	SetDataDefinition (NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions dataDefinition)
	Sets the value to indicate which definition option will be used to define the loading wheel data.

void	SetDeltaCamber (double deltaCamber)
	Sets the delta camber of wheel.

void	SetDeltaStaticRadius (double deltaStaticRadius)
	Sets the delta static radius of wheel.

void	SetDeltaToe (double deltaToe)
	Sets the delta toe of wheel.

void	SetDeltaX (double deltaX)
	Sets the delta x value of wheel center point.

void	SetDeltaY (double deltaY)
	Sets the delta y value of wheel center point.

void	SetDeltaZ (double deltaZ)
	Sets the delta z value of wheel center point.

void	SetDesignData (NXOpen::Features::VehicleDesign::BaseDataWheelBuilder *wheel)
	Sets the design data of the wheel.

void	SetStaticRadius (double staticRadius)
	Sets the static radius of wheel.

void	SetToe (double toe)
	Sets the toe in/out of wheel in degree.

double	StaticRadius ()
	Returns the static radius of wheel.

double	Toe ()
	Returns the toe in/out of wheel in degree.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataLoadingWheelBuilder .

This class can only be used in base data, thus cannot be created directly by user.

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions

This enum represents the options to define the wheel position.

Enumerator:

DataDefinitionOptionsRelative	Relative: The wheel data of this loading will use relative values to design data.
DataDefinitionOptionsAbsolute	Absolute: The wheel data of this loading will use absolute values.

Member Function Documentation

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::Camber ( )

Returns the camber of wheel in degree.

           Used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::CoordinateX ( )

Returns the x coordinate of wheel center point.

           Used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::CoordinateY ( )

Returns the y coordinate of wheel center point.

           Used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::CoordinateZ ( )

Returns the z coordinate of wheel center point.

           Used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute@endlink .

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptions NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinition ( )

Returns the value to indicate which definition option will be used to define the loading wheel data.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaCamber ( )

Returns the delta camber of wheel.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaStaticRadius ( )

Returns the delta static radius of wheel.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaToe ( )

Returns the delta toe of wheel.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaX ( )

Returns the delta x value of wheel center point.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaY ( )

Returns the delta y value of wheel center point.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DeltaZ ( )

Returns the delta z value of wheel center point.

           It is used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsRelative@endlink .

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder* NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::DesignData ( )

Returns the design data of the wheel.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataLoadingWheelBuilder::SetCamber ( double camber )

Sets the camber of wheel in degree.

           Used only when @link DataDefinition DataDefinition @endlink and @link SetDataDefinition SetDataDefinition @endlink  is @link Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute Features::VehicleDesign::BaseDataLoadingWheelBuilder::DataDefinitionOptionsAbsolute@endlink .
