Represents a Features::VehicleDesign::BaseDataWheelBuilder . More...

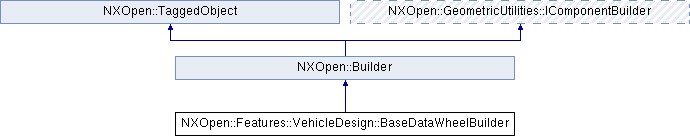

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataWheelBuilder:

Public Types
enum	PositionDefinitionOptions { PositionDefinitionOptionsWheelCenterPoint, PositionDefinitionOptionsAttachmentPointRimOffset }
	This enum represents the options to define the wheel position. More...

Public Member Functions
double	Camber ()
	Returns the wheel camber in degree.

double	CoordinateX ()
	Returns the x coordinate of right wheel center point or attachment point.

double	CoordinateY ()
	Returns the y coordinate of right wheel center point or attachment point.

double	CoordinateZ ()
	Returns the z coordinate of right wheel center point or attachment point.

double	Diameter ()
	Returns the norminal diameter of the wheel.

NXString	Name ()
	Returns the name of the wheel.

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions	PositionDefinition ()
	Returns the value to indicate which option is used to define the wheel position.

double	RimOffset ()
	Returns the rim offset.

void	SetCamber (double dValue)
	Sets the wheel camber in degree.

void	SetCoordinateX (double dValue)
	Sets the x coordinate of right wheel center point or attachment point.

void	SetCoordinateY (double dValue)
	Sets the y coordinate of right wheel center point or attachment point.

void	SetCoordinateZ (double dValue)
	Sets the z coordinate of right wheel center point or attachment point.

void	SetDiameter (double dValue)
	Sets the norminal diameter of the wheel.

void	SetName (const NXString &name)
	Sets the name of the wheel.

void	SetName (const char *name)
	Sets the name of the wheel.

void	SetPositionDefinition (NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions positionDefinition)
	Sets the value to indicate which option is used to define the wheel position.

void	SetRimOffset (double dValue)
	Sets the rim offset.

void	SetShowSurface (bool showFace)
	Sets the option to indicate whether to show surface or not.

void	SetShowWireframe (bool showWire)
	Sets the option to indicate whether to show curve or not.

void	SetStaticRadius (double dValue)
	Sets the static radius of the wheel.

void	SetToe (double dValue)
	Sets the wheel toe in/out in degreee.

void	SetWidth (double dValue)
	Sets the width of the wheel.

bool	ShowSurface ()
	Returns the option to indicate whether to show surface or not.

bool	ShowWireframe ()
	Returns the option to indicate whether to show curve or not.

double	StaticRadius ()
	Returns the static radius of the wheel.

double	Toe ()
	Returns the wheel toe in/out in degreee.

double	Track ()
	Returns the track of the axle.

double	Width ()
	Returns the width of the wheel.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataWheelBuilder .

This class can only be used in base data, thus cannot be created directly by user.

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions

This enum represents the options to define the wheel position.

Enumerator:

PositionDefinitionOptionsWheelCenterPoint	wheel center point
PositionDefinitionOptionsAttachmentPointRimOffset	attachment point rim offset

Member Function Documentation

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Camber ( )

Returns the wheel camber in degree.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::CoordinateX ( )

Returns the x coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point x coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point x coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::CoordinateY ( )

Returns the y coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point y coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point y coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::CoordinateZ ( )

Returns the z coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point z coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point z coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Diameter ( )

Returns the norminal diameter of the wheel.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Name ( )

Returns the name of the wheel.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinition ( )

Returns the value to indicate which option is used to define the wheel position.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::RimOffset ( )

Returns the rim offset.

Rim offset is the shift between the mounting point of the wheel and the wheel center. It is used only when PositionDefinition and SetPositionDefinition is Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset .
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetCamber ( double dValue )

Sets the wheel camber in degree.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetCoordinateX ( double dValue )

Sets the x coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point x coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point x coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetCoordinateY ( double dValue )

Sets the y coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point y coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point y coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetCoordinateZ ( double dValue )

Sets the z coordinate of right wheel center point or attachment point.

           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsWheelCenterPoint@endlink , it is center point z coordinate.
           If @link PositionDefinition PositionDefinition @endlink and @link SetPositionDefinition SetPositionDefinition @endlink  is @link Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset@endlink , it is attachment point z coordinate.
       The left wheel will be located symmetrical to the vehicle centerline.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetDiameter ( double dValue )

Sets the norminal diameter of the wheel.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetName ( const NXString & name )

Sets the name of the wheel.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetName ( const char * name )

Sets the name of the wheel.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetPositionDefinition ( NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptions positionDefinition )

Sets the value to indicate which option is used to define the wheel position.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

positionDefinition positiondefinition

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetRimOffset ( double dValue )

Sets the rim offset.

Rim offset is the shift between the mounting point of the wheel and the wheel center. It is used only when PositionDefinition and SetPositionDefinition is Features::VehicleDesign::BaseDataWheelBuilder::PositionDefinitionOptionsAttachmentPointRimOffset .
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetShowSurface ( bool showFace )

Sets the option to indicate whether to show surface or not.

If it is true, the wheel surface is shown.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showFace showface

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetShowWireframe ( bool showWire )

Sets the option to indicate whether to show curve or not.

If it is true, the wheel curve is shown.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showWire showwire

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetStaticRadius ( double dValue )

Sets the static radius of the wheel.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetToe ( double dValue )

Sets the wheel toe in/out in degreee.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

void NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::SetWidth ( double dValue )

Sets the width of the wheel.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

dValue dvalue

bool NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::ShowSurface ( )

Returns the option to indicate whether to show surface or not.

If it is true, the wheel surface is shown.
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::ShowWireframe ( )

Returns the option to indicate whether to show curve or not.

If it is true, the wheel curve is shown.
Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::StaticRadius ( )

Returns the static radius of the wheel.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Toe ( )

Returns the wheel toe in/out in degreee.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Track ( )

Returns the track of the axle.

Track is a computed value - the distance between the right wheel center point and the left wheel center point.
Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::BaseDataWheelBuilder::Width ( )

Returns the width of the wheel.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_BaseDataWheelBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
