NXOpen::CAM::TurnBoundaryGeomBuilder Class Reference

Represents a TurnBoundaryGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTurnBoundaryGeomBuilder

Created in NX5.0.0. More...

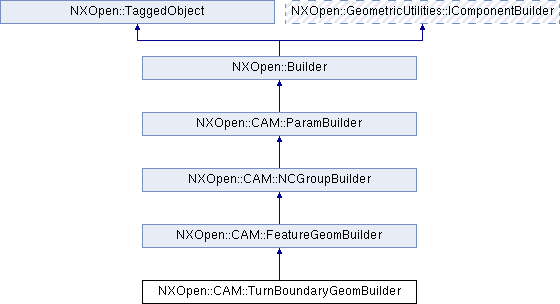

Inheritance diagram for NXOpen::CAM::TurnBoundaryGeomBuilder:

Additional Inherited Members
Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...
Public Member Functions inherited from NXOpen::CAM::FeatureGeomBuilder
NXOpen::CAM::InheritableDoubleBuilder *	BlankOffsetBuilder ()
	Returns the blank offset (inheritable double) Created in NX5.0.0.
NXOpen::CAM::InheritableDoubleBuilder *	CheckOffsetBuilder ()
	Returns the check offset (inheritable double) Created in NX5.0.0.
NXOpen::CAM::GeometryCiBuilder *	GeometryCiBuilder ()
	Returns the geometry builder Created in NX5.0.0.
NXString	GetMaterial ()
	Get part material.
void	GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code, NXString *hardness)
	Get material data Created in NX8.0.2.
NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the save/layer layout builder Created in NX5.0.0.
NXOpen::NXObject *	PartMaterialBuilder ()
	Returns the part material
NXOpen::CAM::InheritableDoubleBuilder *	PartOffsetBuilder ()
	Returns the part offset (inheritable double) Created in NX5.0.0.
void	SetMaterial (const NXString &libRef)
	Set part material Created in NX8.0.1.
void	SetMaterial (const char *libRef)
	Set part material Created in NX8.0.1.
void	SetPartMaterialBuilder (NXOpen::NXObject *partMaterial)
	Sets the part material
NXOpen::CAM::InheritableDoubleBuilder *	TrimOffsetBuilder ()
	Returns the trim offset (inheritable double) Created in NX5.0.0.

Detailed Description

Represents a TurnBoundaryGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTurnBoundaryGeomBuilder

Created in NX5.0.0.

---

The documentation for this class was generated from the following file:

• CAM_TurnBoundaryGeomBuilder.hxx
