Represents a FeatureGeom Builder
This is an abstract class, and cannot be instantiated. More...

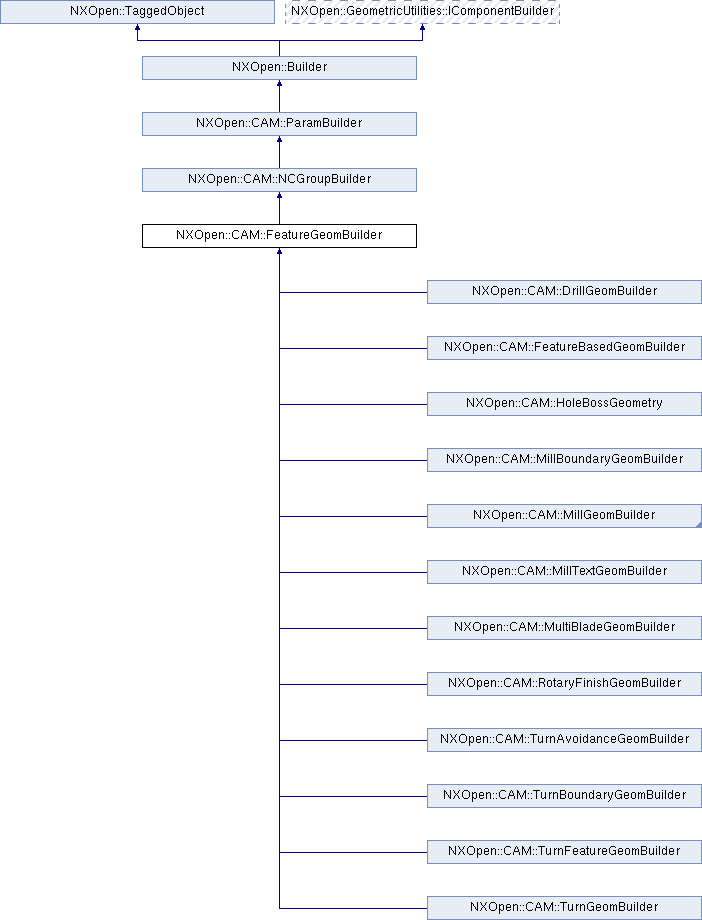

Inheritance diagram for NXOpen::CAM::FeatureGeomBuilder:

Public Member Functions
NXOpen::CAM::InheritableDoubleBuilder *	BlankOffsetBuilder ()
	Returns the blank offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CheckOffsetBuilder ()
	Returns the check offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::GeometryCiBuilder *	GeometryCiBuilder ()
	Returns the geometry builder Created in NX5.0.0.

NXString	GetMaterial ()
	Get part material.

void	GetMaterialData (NXString libRef, NXString name, NXString description, NXString code, NXString *hardness)
	Get material data Created in NX8.0.2.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the save/layer layout builder Created in NX5.0.0.

NXOpen::NXObject *	PartMaterialBuilder ()
	Returns the part material

NXOpen::CAM::InheritableDoubleBuilder *	PartOffsetBuilder ()
	Returns the part offset (inheritable double) Created in NX5.0.0.

void	SetMaterial (const NXString &libRef)
	Set part material Created in NX8.0.1.

void	SetMaterial (const char *libRef)
	Set part material Created in NX8.0.1.

void	SetPartMaterialBuilder (NXOpen::NXObject *partMaterial)
	Sets the part material

NXOpen::CAM::InheritableDoubleBuilder *	TrimOffsetBuilder ()
	Returns the trim offset (inheritable double) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Detailed Description

Represents a FeatureGeom Builder
This is an abstract class, and cannot be instantiated.

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::FeatureGeomBuilder::BlankOffsetBuilder ( )

Returns the blank offset (inheritable double)
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::FeatureGeomBuilder::CheckOffsetBuilder ( )

Returns the check offset (inheritable double)
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::GeometryCiBuilder* NXOpen::CAM::FeatureGeomBuilder::GeometryCiBuilder ( )

Returns the geometry builder
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXString NXOpen::CAM::FeatureGeomBuilder::GetMaterial ( )

Get part material.

Returns: Created in NX8.0.1.

License requirements : None

void NXOpen::CAM::FeatureGeomBuilder::GetMaterialData	(	NXString *	libRef,
		NXString *	name,
		NXString *	description,
		NXString *	code,
		NXString *	hardness
	)

Get material data
Created in NX8.0.2.

License requirements : None

Parameters

libRef	libref
name	name
description	description
code	code
hardness	hardness

NXOpen::CAM::LayoutCiBuilder* NXOpen::CAM::FeatureGeomBuilder::LayoutCiBuilder ( )

Returns the save/layer layout builder
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::NXObject* NXOpen::CAM::FeatureGeomBuilder::PartMaterialBuilder ( )

Returns the part material

Deprecated:: Deprecated in NX8.0.2.

Use method GetMaterialData instead.

Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::FeatureGeomBuilder::PartOffsetBuilder ( )

Returns the part offset (inheritable double)
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::FeatureGeomBuilder::SetMaterial ( const NXString & libRef )

Set part material
Created in NX8.0.1.

License requirements : cam_base ("CAM BASE")

Parameters

libRef NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::FeatureGeomBuilder::SetMaterial ( const char * libRef )

Set part material
Created in NX8.0.1.

License requirements : cam_base ("CAM BASE")

Parameters

libRef NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::FeatureGeomBuilder::SetPartMaterialBuilder ( NXOpen::NXObject * partMaterial )

Sets the part material

Deprecated:: Deprecated in NX8.0.2.

Use method SetMaterial instead.

Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

partMaterial the part material tag

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::FeatureGeomBuilder::TrimOffsetBuilder ( )

Returns the trim offset (inheritable double)
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

The documentation for this class was generated from the following file:

CAM_FeatureGeomBuilder.hxx
