Represents a CAM.NcmTurningBuilder
Created in NX6.0.0. More...

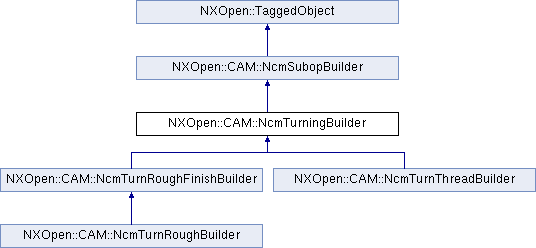

Inheritance diagram for NXOpen::CAM::NcmTurningBuilder:

Public Member Functions
bool	AvoidanceAfterLastRetract ()
	Returns the prefer direct motion after last retract Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceApproachBuilder *	AvoidanceApproachBuilder ()
	Returns the approach path builder Created in NX6.0.0.

bool	AvoidanceBetweenRegions ()
	Returns the prefer direct motion between regions Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceClearanceBuilder *	AvoidanceClearanceBuilder ()
	Returns the clearance builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceDepartureBuilder *	AvoidanceDepartureBuilder ()
	Returns the departure path builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceFromBuilder *	AvoidanceFromBuilder ()
	Returns the avoidance from builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceGohomeBuilder *	AvoidanceGohomeBuilder ()
	Returns the gohome point builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceReturnBuilder *	AvoidanceReturnBuilder ()
	Returns the return path builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceStartBuilder *	AvoidanceStartBuilder ()
	Returns the avoidance start builder Created in NX6.0.0.

NXOpen::CAM::TurnAvoidanceStartOfEngageBuilder *	AvoidanceStartOfEngageBuilder ()
	Returns the start of engage builder Created in NX6.0.0.

bool	AvoidanceToStartOfEngage ()
	Returns the prefer direct motion to start of engage Created in NX6.0.0.

NXOpen::CAM::Cutcom *	Cutcom ()
	Returns the cutter compensation builder Created in NX6.0.2.

void	SetAvoidanceAfterLastRetract (bool avoidanceAfterLastRetract)
	Sets the prefer direct motion after last retract Created in NX6.0.0.

void	SetAvoidanceBetweenRegions (bool avoidanceBetweenRegions)
	Sets the prefer direct motion between regions Created in NX6.0.0.

void	SetAvoidanceToStartOfEngage (bool avoidanceToStartOfEngage)
	Sets the prefer direct motion to start of engage Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::NcmSubopBuilder
NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes	DefaultRegionStartType ()
	Returns the region start type Created in NX8.5.0.

void	GetRegionStartPoints (std::vector< NXOpen::Point * > &regionStartPoints)
	Returns region start points Created in NX8.5.0.

void	SetDefaultRegionStartType (NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes defaultRegionStartType)
	Sets the region start type Created in NX8.5.0.

void	SetRegionStartPoints (const std::vector< NXOpen::Point * > &regionStartPoints)
	Sets region start points Created in NX8.5.0.

void	SetStartPointsUseEffectDist (bool newValue)
	Sets the start points use effective distance Created in NX8.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	StartPointsEffectDistBuilder ()
	Returns the region start points effective distance builder (inheritable tool dep) Created in NX8.5.0.

bool	StartPointsUseEffectDist ()
	Returns the start points use effective distance Created in NX8.5.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::NcmSubopBuilder
enum	DefaultRegionStartTypes { DefaultRegionStartTypesMidPoint, DefaultRegionStartTypesCorner }
	Available types for default region start in subop milling. More...

Detailed Description

Represents a CAM.NcmTurningBuilder
Created in NX6.0.0.

Member Function Documentation

bool NXOpen::CAM::NcmTurningBuilder::AvoidanceAfterLastRetract ( )

Returns the prefer direct motion after last retract
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceApproachBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceApproachBuilder ( )

Returns the approach path builder
Created in NX6.0.0.

License requirements : None

bool NXOpen::CAM::NcmTurningBuilder::AvoidanceBetweenRegions ( )

Returns the prefer direct motion between regions
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceClearanceBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceClearanceBuilder ( )

Returns the clearance builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceDepartureBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceDepartureBuilder ( )

Returns the departure path builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceFromBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceFromBuilder ( )

Returns the avoidance from builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceGohomeBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceGohomeBuilder ( )

Returns the gohome point builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceReturnBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceReturnBuilder ( )

Returns the return path builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceStartBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceStartBuilder ( )

Returns the avoidance start builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::TurnAvoidanceStartOfEngageBuilder* NXOpen::CAM::NcmTurningBuilder::AvoidanceStartOfEngageBuilder ( )

Returns the start of engage builder
Created in NX6.0.0.

License requirements : None

bool NXOpen::CAM::NcmTurningBuilder::AvoidanceToStartOfEngage ( )

Returns the prefer direct motion to start of engage
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::Cutcom* NXOpen::CAM::NcmTurningBuilder::Cutcom ( )

Returns the cutter compensation builder
Created in NX6.0.2.

License requirements : None

void NXOpen::CAM::NcmTurningBuilder::SetAvoidanceAfterLastRetract ( bool avoidanceAfterLastRetract )

Sets the prefer direct motion after last retract
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

avoidanceAfterLastRetract the prefer direct motion after last retract

void NXOpen::CAM::NcmTurningBuilder::SetAvoidanceBetweenRegions ( bool avoidanceBetweenRegions )

Sets the prefer direct motion between regions
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

avoidanceBetweenRegions the prefer direct motion between regions

void NXOpen::CAM::NcmTurningBuilder::SetAvoidanceToStartOfEngage ( bool avoidanceToStartOfEngage )

Sets the prefer direct motion to start of engage
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

avoidanceToStartOfEngage the prefer direct motion to start of engage

The documentation for this class was generated from the following file:

CAM_NcmTurningBuilder.hxx
