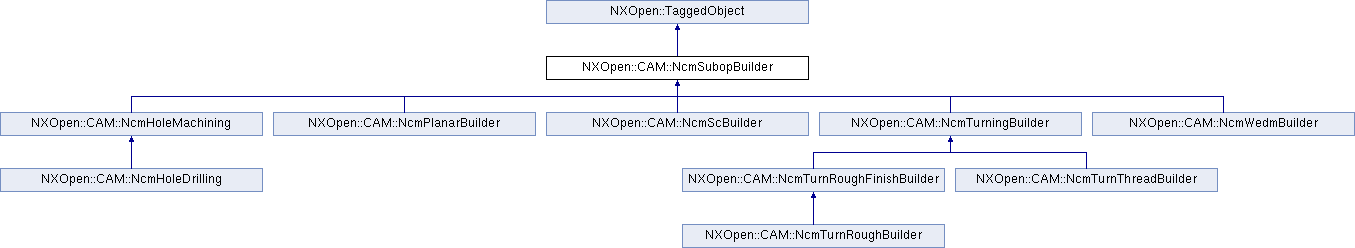

Inheritance diagram for NXOpen::CAM::NcmSubopBuilder:

Public Types
enum	DefaultRegionStartTypes { DefaultRegionStartTypesMidPoint, DefaultRegionStartTypesCorner }
	Available types for default region start in subop milling. More...

Public Member Functions
NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes	DefaultRegionStartType ()
	Returns the region start type Created in NX8.5.0.

void	GetRegionStartPoints (std::vector< NXOpen::Point * > &regionStartPoints)
	Returns region start points Created in NX8.5.0.

void	SetDefaultRegionStartType (NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes defaultRegionStartType)
	Sets the region start type Created in NX8.5.0.

void	SetRegionStartPoints (const std::vector< NXOpen::Point * > &regionStartPoints)
	Sets region start points Created in NX8.5.0.

void	SetStartPointsUseEffectDist (bool newValue)
	Sets the start points use effective distance Created in NX8.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	StartPointsEffectDistBuilder ()
	Returns the region start points effective distance builder (inheritable tool dep) Created in NX8.5.0.

bool	StartPointsUseEffectDist ()
	Returns the start points use effective distance Created in NX8.5.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Created in NX5.0.0.

Member Enumeration Documentation

Available types for default region start in subop milling.

Enumerator:

DefaultRegionStartTypesMidPoint	start at mid point
DefaultRegionStartTypesCorner	start_at_corners

NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartType ( )

Returns the region start type
Created in NX8.5.0.

License requirements : None

void NXOpen::CAM::NcmSubopBuilder::GetRegionStartPoints ( std::vector< NXOpen::Point * > & regionStartPoints )

Returns region start points
Created in NX8.5.0.

License requirements : None

Parameters

regionStartPoints The points

void NXOpen::CAM::NcmSubopBuilder::SetDefaultRegionStartType ( NXOpen::CAM::NcmSubopBuilder::DefaultRegionStartTypes defaultRegionStartType )

Sets the region start type
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

defaultRegionStartType defaultregionstarttype

void NXOpen::CAM::NcmSubopBuilder::SetRegionStartPoints ( const std::vector< NXOpen::Point * > & regionStartPoints )

Sets region start points
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

regionStartPoints The points

void NXOpen::CAM::NcmSubopBuilder::SetStartPointsUseEffectDist ( bool newValue )

Sets the start points use effective distance
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

newValue newvalue

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::NcmSubopBuilder::StartPointsEffectDistBuilder ( )

Returns the region start points effective distance builder (inheritable tool dep)
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAM::NcmSubopBuilder::StartPointsUseEffectDist ( )

Returns the start points use effective distance
Created in NX8.5.0.

License requirements : None
