Represents a DrillGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillGeomBuilder

Created in NX5.0.0. More...

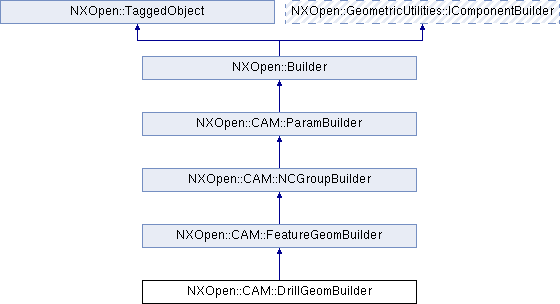

Inheritance diagram for NXOpen::CAM::DrillGeomBuilder:

Public Member Functions
NXOpen::CAM::DrillSurfaceBuilder *	BottomSurface ()
	Returns the bottom surface builder Created in NX7.5.0.

int	GetToolAxisType ()
	Returns the Tool Axis type.

void	SetToolAxisAsArcAxis (int toggleValue)
	Sets the Tool Axis as Arc Axis Created in NX5.0.0.

void	SetToolAxisType (int value)
	Sets the Tool Axis type Created in NX5.0.0.

void	SetToolAxisVector (NXOpen::NXObject *vector)
	Sets the Tool Axis vector Created in NX5.0.0.

int	ToolAxisAsArcAxis ()
	Returns the Tool Axis as Arc Axis Created in NX5.0.0.

NXOpen::NXObject *	ToolAxisVector ()
	Returns the Tool Axis vector Created in NX5.0.0.

NXOpen::CAM::DrillSurfaceBuilder *	TopSurface ()
	Returns the top surface builder Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::FeatureGeomBuilder
NXOpen::CAM::InheritableDoubleBuilder *	BlankOffsetBuilder ()
	Returns the blank offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CheckOffsetBuilder ()
	Returns the check offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::GeometryCiBuilder *	GeometryCiBuilder ()
	Returns the geometry builder Created in NX5.0.0.

NXString	GetMaterial ()
	Get part material.

void	GetMaterialData (NXString libRef, NXString name, NXString description, NXString code, NXString *hardness)
	Get material data Created in NX8.0.2.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the save/layer layout builder Created in NX5.0.0.

NXOpen::NXObject *	PartMaterialBuilder ()
	Returns the part material

NXOpen::CAM::InheritableDoubleBuilder *	PartOffsetBuilder ()
	Returns the part offset (inheritable double) Created in NX5.0.0.

void	SetMaterial (const NXString &libRef)
	Set part material Created in NX8.0.1.

void	SetMaterial (const char *libRef)
	Set part material Created in NX8.0.1.

void	SetPartMaterialBuilder (NXOpen::NXObject *partMaterial)
	Sets the part material

NXOpen::CAM::InheritableDoubleBuilder *	TrimOffsetBuilder ()
	Returns the trim offset (inheritable double) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Detailed Description

Represents a DrillGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillGeomBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAM::DrillSurfaceBuilder* NXOpen::CAM::DrillGeomBuilder::BottomSurface ( )

Returns the bottom surface builder
Created in NX7.5.0.

License requirements : None

int NXOpen::CAM::DrillGeomBuilder::GetToolAxisType ( )

Returns the Tool Axis type.

Returns: the integer value
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::DrillGeomBuilder::SetToolAxisAsArcAxis ( int toggleValue )

Sets the Tool Axis as Arc Axis
Created in NX5.0.0.
