NXOpen::CAE::Xyplot::GridLayoutStyle2DSetting Class Reference

Represents the 2d grid layout display style. More...

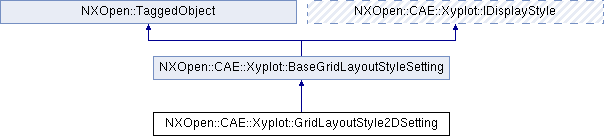

Inheritance diagram for NXOpen::CAE::Xyplot::GridLayoutStyle2DSetting:

Additional Inherited Members
Public Member Functions inherited from NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting
NXOpen::NXColor *	BackgroundColor ()
	Returns the background color Created in NX9.0.0.
virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.
NXOpen::NXColor *	DenseColor ()
	Returns the grid dense line color Created in NX9.0.0.
NXOpen::NXColor *	GridColor ()
	Returns the grid line color Created in NX9.0.0.
NXOpen::DisplayableObject::ObjectFont	GridFont ()
	Returns the grid line font Created in NX9.0.0.
NXOpen::DisplayableObject::ObjectWidth	GridWidth ()
	Returns the grid line width Created in NX9.0.0.
void	SetBackgroundColor (NXOpen::NXColor *bgColor)
	Sets the background color Created in NX9.0.0.
void	SetDenseColor (NXOpen::NXColor *color)
	Sets the grid dense line color Created in NX9.0.0.
void	SetGridColor (NXOpen::NXColor *color)
	Sets the grid line color Created in NX9.0.0.
void	SetGridFont (NXOpen::DisplayableObject::ObjectFont gridFont)
	Sets the grid line font Created in NX9.0.0.
void	SetGridWidth (NXOpen::DisplayableObject::ObjectWidth gridWidth)
	Sets the grid line width Created in NX9.0.0.
void	SetShowBackground (bool showBg)
	Sets a value indicating whether to display the background Created in NX9.0.0.
void	SetXyGridStyle (NXOpen::CAE::Xyplot::GridStyle gridStyle)
	Sets the grid style of XY plane Created in NX9.0.0.
bool	ShowBackground ()
	Returns a value indicating whether to display the background Created in NX9.0.0.
NXOpen::CAE::Xyplot::GridStyle	XyGridStyle ()
	Returns the grid style of XY plane Created in NX9.0.0.

Detailed Description

Represents the 2d grid layout display style.

Not support KF.

Created in NX9.0.0.

---

The documentation for this class was generated from the following file:

• CAE_Xyplot_GridLayoutStyle2DSetting.hxx
