Represents the base grid layout display style. More...

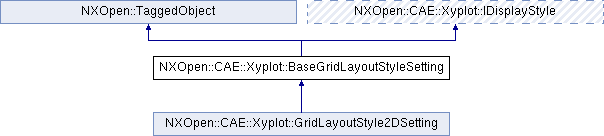

Inheritance diagram for NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting:

Public Member Functions
NXOpen::NXColor *	BackgroundColor ()
	Returns the background color Created in NX9.0.0.

virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.

NXOpen::NXColor *	DenseColor ()
	Returns the grid dense line color Created in NX9.0.0.

NXOpen::NXColor *	GridColor ()
	Returns the grid line color Created in NX9.0.0.

NXOpen::DisplayableObject::ObjectFont	GridFont ()
	Returns the grid line font Created in NX9.0.0.

NXOpen::DisplayableObject::ObjectWidth	GridWidth ()
	Returns the grid line width Created in NX9.0.0.

void	SetBackgroundColor (NXOpen::NXColor *bgColor)
	Sets the background color Created in NX9.0.0.

void	SetDenseColor (NXOpen::NXColor *color)
	Sets the grid dense line color Created in NX9.0.0.

void	SetGridColor (NXOpen::NXColor *color)
	Sets the grid line color Created in NX9.0.0.

void	SetGridFont (NXOpen::DisplayableObject::ObjectFont gridFont)
	Sets the grid line font Created in NX9.0.0.

void	SetGridWidth (NXOpen::DisplayableObject::ObjectWidth gridWidth)
	Sets the grid line width Created in NX9.0.0.

void	SetShowBackground (bool showBg)
	Sets a value indicating whether to display the background Created in NX9.0.0.

void	SetXyGridStyle (NXOpen::CAE::Xyplot::GridStyle gridStyle)
	Sets the grid style of XY plane Created in NX9.0.0.

bool	ShowBackground ()
	Returns a value indicating whether to display the background Created in NX9.0.0.

NXOpen::CAE::Xyplot::GridStyle	XyGridStyle ()
	Returns the grid style of XY plane Created in NX9.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the base grid layout display style.

Call CAE::Xyplot::IDisplayStyle::CommitChange to apply style changes to corresponding plot after it's modified.
Not support KF.

Created in NX9.0.0.

Member Function Documentation

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::BackgroundColor ( )

Returns the background color
Created in NX9.0.0.

License requirements : None

virtual void NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::CommitChange ( )

virtual

Commits any edits that have been applied to the display style.

           Triggers the corresponding plot to update graph.

Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Implements NXOpen::CAE::Xyplot::IDisplayStyle.

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::DenseColor ( )

Returns the grid dense line color
Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::GridColor ( )

Returns the grid line color
Created in NX9.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectFont NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::GridFont ( )

Returns the grid line font
Created in NX9.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectWidth NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::GridWidth ( )

Returns the grid line width
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::BaseGridLayoutStyleSetting::SetBackgroundColor ( NXOpen::NXColor * bgColor )

Sets the background color
Created in NX9.0.0.
