NXOpen::CAE::ResultsModelExportBuilder Class Reference

Represents a CAE::ResultsModelExportBuilder
To obtain an instance of this class use Session::ResultManager . More...

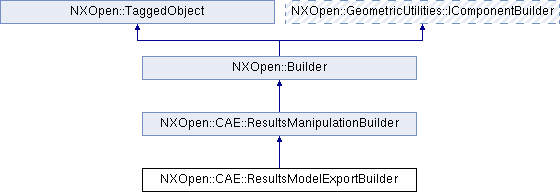

Inheritance diagram for NXOpen::CAE::ResultsModelExportBuilder:

Public Member Functions
void	SetResult (NXOpen::CAE::Result *result)
	The result the model of which is to be exported Created in NX8.5.0.
Public Member Functions inherited from NXOpen::CAE::ResultsManipulationBuilder
void	SetAction (NXOpen::CAE::ResultsManipulationBuilder::Action action)
	The action
void	SetAppendMethod (NXOpen::CAE::ResultsManipulationBuilder::ResultAppendMethod appendMethod)
	The append method if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.
void	SetCompanionResultName (const NXString &companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.
void	SetCompanionResultName (const char *companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.
void	SetCompanionSolution (NXOpen::CAE::SimSolution *solution)
	The companion solution if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX7.5.2.
void	SetCreateSolution (bool createSolution)
	Specifies whether to create an imported solution Created in NX9.0.0.
void	SetImportedSolutionName (const NXString &importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.
void	SetImportedSolutionName (const char *importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.
void	SetImportResult (bool importResult)
	Import the result immediately Created in NX8.5.0.
void	SetIncludeModel (bool includeModel)
	Include nodes and elements Created in NX8.5.0.
void	SetLoadcaseName (const NXString &loadcaseName)
	The load case name Created in NX7.5.2.
void	SetLoadcaseName (const char *loadcaseName)
	The load case name Created in NX7.5.2.
void	SetOutputFile (const NXString &outputFile)
	The output file Created in NX7.5.2.
void	SetOutputFile (const char *outputFile)
	The output file Created in NX7.5.2.
void	SetOutputName (const NXString &outputName)
	The output name Created in NX7.5.2.
void	SetOutputName (const char *outputName)
	The output name Created in NX7.5.2.
void	SetOutputQuantity (NXOpen::CAE::Result::Quantity quantity)
	The output quantity Created in NX8.5.0.
void	SetOutputResultType (NXOpen::CAE::ResultsManipulationBuilder::OutputResultType type)
	The result output type Created in NX9.0.0.
void	SetUnitsSystem (NXOpen::CAE::ResultsManipulationBuilder::UnitsSystem unitsSystem)
	The units system Created in NX8.5.0.
void	SetUnitsSystemResult (NXOpen::CAE::Result *result)
	The result to copy the units system from Created in NX8.5.0.
void	SetUserDefinedUnitsSystem (const NXOpen::CAE::Result::ResultBasicUnit &unitsSystem)
	The user-defined units system Created in NX8.5.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAE::ResultsManipulationBuilder
enum	Action {   ActionExport, ActionExportResultsOnly, ActionExportResultsAndModel, ActionCreateImportedResult,   ActionCreateCompanionResult, ActionCreateCompanionResultWithModel, ActionCreateImportedSolution }
	Action options More...
enum	ElementValueAtNode { ElementValueAtNodeAverage, ElementValueAtNodeMaximum, ElementValueAtNodeMinimum, ElementValueAtNodeSum }
	Value at Nodes for element nodal values. More...
enum	OutputResultType { OutputResultTypeCompanion, OutputResultTypeFull }
	Output result types. More...
enum	ResultAppendMethod { ResultAppendMethodCreateNewLoadCases, ResultAppendMethodMergeWithPrimaryResultsData }
	Result Append Method options. More...
enum	UnitsSystem { UnitsSystemNone, UnitsSystemFromResult, UnitsSystemUserDefined }
	Units system options. More...

Detailed Description

Represents a CAE::ResultsModelExportBuilder
To obtain an instance of this class use Session::ResultManager .

Created in NX8.5.0.

Member Function Documentation

void NXOpen::CAE::ResultsModelExportBuilder::SetResult

(

NXOpen::CAE::Result *

result

)

The result the model of which is to be exported
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

result

set result

---

The documentation for this class was generated from the following file:

• CAE_ResultsModelExportBuilder.hxx
