Represents an abstract CAE::ResultsManipulationBuilder
This is an abstract class and cannot be instantiated

Created in NX7.5.2. More...

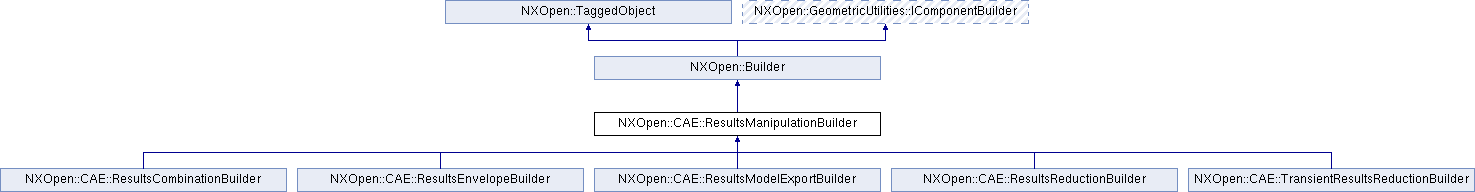

Inheritance diagram for NXOpen::CAE::ResultsManipulationBuilder:

Public Types
enum	Action { ActionExport, ActionExportResultsOnly, ActionExportResultsAndModel, ActionCreateImportedResult, ActionCreateCompanionResult, ActionCreateCompanionResultWithModel, ActionCreateImportedSolution }
	Action options More...

enum	ElementValueAtNode { ElementValueAtNodeAverage, ElementValueAtNodeMaximum, ElementValueAtNodeMinimum, ElementValueAtNodeSum }
	Value at Nodes for element nodal values. More...

enum	OutputResultType { OutputResultTypeCompanion, OutputResultTypeFull }
	Output result types. More...

enum	ResultAppendMethod { ResultAppendMethodCreateNewLoadCases, ResultAppendMethodMergeWithPrimaryResultsData }
	Result Append Method options. More...

enum	UnitsSystem { UnitsSystemNone, UnitsSystemFromResult, UnitsSystemUserDefined }
	Units system options. More...

Public Member Functions
void	SetAction (NXOpen::CAE::ResultsManipulationBuilder::Action action)
	The action

void	SetAppendMethod (NXOpen::CAE::ResultsManipulationBuilder::ResultAppendMethod appendMethod)
	The append method if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionResultName (const NXString &companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionResultName (const char *companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionSolution (NXOpen::CAE::SimSolution *solution)
	The companion solution if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX7.5.2.

void	SetCreateSolution (bool createSolution)
	Specifies whether to create an imported solution Created in NX9.0.0.

void	SetImportedSolutionName (const NXString &importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.

void	SetImportedSolutionName (const char *importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.

void	SetImportResult (bool importResult)
	Import the result immediately Created in NX8.5.0.

void	SetIncludeModel (bool includeModel)
	Include nodes and elements Created in NX8.5.0.

void	SetLoadcaseName (const NXString &loadcaseName)
	The load case name Created in NX7.5.2.

void	SetLoadcaseName (const char *loadcaseName)
	The load case name Created in NX7.5.2.

void	SetOutputFile (const NXString &outputFile)
	The output file Created in NX7.5.2.

void	SetOutputFile (const char *outputFile)
	The output file Created in NX7.5.2.

void	SetOutputName (const NXString &outputName)
	The output name Created in NX7.5.2.

void	SetOutputName (const char *outputName)
	The output name Created in NX7.5.2.

void	SetOutputQuantity (NXOpen::CAE::Result::Quantity quantity)
	The output quantity Created in NX8.5.0.

void	SetOutputResultType (NXOpen::CAE::ResultsManipulationBuilder::OutputResultType type)
	The result output type Created in NX9.0.0.

void	SetUnitsSystem (NXOpen::CAE::ResultsManipulationBuilder::UnitsSystem unitsSystem)
	The units system Created in NX8.5.0.

void	SetUnitsSystemResult (NXOpen::CAE::Result *result)
	The result to copy the units system from Created in NX8.5.0.

void	SetUserDefinedUnitsSystem (const NXOpen::CAE::Result::ResultBasicUnit &unitsSystem)
	The user-defined units system Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents an abstract CAE::ResultsManipulationBuilder
This is an abstract class and cannot be instantiated

Created in NX7.5.2.

Member Enumeration Documentation

enum NXOpen::CAE::ResultsManipulationBuilder::Action

Action options

Deprecated:: Deprecated in NX9.0.0.

Use CAE::ResultsManipulationBuilder::OutputResultType instead.

Enumerator:

ActionExport	export
ActionExportResultsOnly	no longer used
ActionExportResultsAndModel	no longer used
ActionCreateImportedResult	no longer used
ActionCreateCompanionResult	create companion result
ActionCreateCompanionResultWithModel	no longer used
ActionCreateImportedSolution	create imported solution

enum NXOpen::CAE::ResultsManipulationBuilder::ElementValueAtNode

Value at Nodes for element nodal values.

Enumerator:

ElementValueAtNodeAverage	average
ElementValueAtNodeMaximum	maximum
ElementValueAtNodeMinimum	minimum
ElementValueAtNodeSum	sum

enum NXOpen::CAE::ResultsManipulationBuilder::OutputResultType

Output result types.

Enumerator:

OutputResultTypeCompanion	companion
OutputResultTypeFull	full

enum NXOpen::CAE::ResultsManipulationBuilder::ResultAppendMethod

Result Append Method options.

Enumerator:

ResultAppendMethodCreateNewLoadCases	create new load cases
ResultAppendMethodMergeWithPrimaryResultsData	merge with primary results data

enum NXOpen::CAE::ResultsManipulationBuilder::UnitsSystem

Units system options.

Enumerator:

UnitsSystemNone	none
UnitsSystemFromResult	from result
UnitsSystemUserDefined	user defined

Member Function Documentation

void NXOpen::CAE::ResultsManipulationBuilder::SetAction ( NXOpen::CAE::ResultsManipulationBuilder::Action action )

The action

Deprecated:: Deprecated in NX9.0.0.

Use CAE::ResultsManipulationBuilder::SetOutputResultType instead.

Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

action set action

void NXOpen::CAE::ResultsManipulationBuilder::SetAppendMethod ( NXOpen::CAE::ResultsManipulationBuilder::ResultAppendMethod appendMethod )

The append method if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult
Created in NX8.5.0.
