NXOpen::Annotations::HorizontalOrdinateDimension Class Reference

Represents a horizontal ordinate dimension
To create or edit an instance of this class, use Annotations::OrdinateDimensionBuilder

Created in NX4.0.0. More...

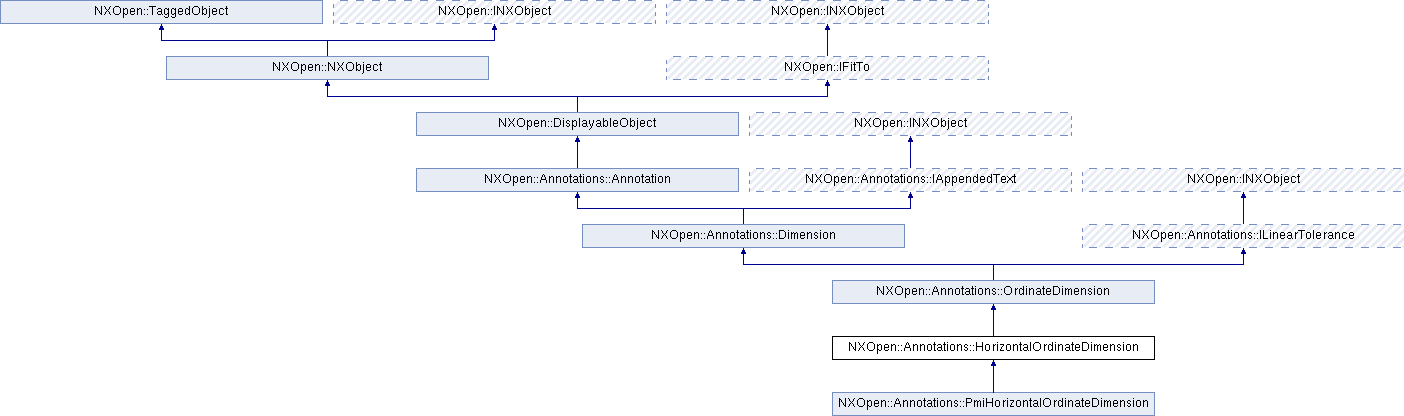

Inheritance diagram for NXOpen::Annotations::HorizontalOrdinateDimension:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::Annotations::OrdinateDimension
NXOpen::Annotations::OrdinateDimension::DoglegPreferences	GetDoglegData ()
	Returns the dogleg data for Ordinate Dimension.
NXOpen::Annotations::OrdinateOriginDimension *	GetOrdinateOrigin ()
	Returns the ordinate origin of a given ordinate dimension.
virtual NXOpen::Annotations::LinearTolerance *	GetTolerance ()
	Returns the tolerance.
void	SetDoglegData (const NXOpen::Annotations::OrdinateDimension::DoglegPreferences &ordinateDoglegPreferences)
	Sets the dogleg data for Ordinate Dimension.
virtual void	SetTolerance (NXOpen::Annotations::LinearTolerance *tolerance)
	Sets the tolerance.

Detailed Description

Represents a horizontal ordinate dimension
To create or edit an instance of this class, use Annotations::OrdinateDimensionBuilder

Created in NX4.0.0.

---

The documentation for this class was generated from the following file:

• Annotations_HorizontalOrdinateDimension.hxx
